REFERENCES

4.2.4 Output and Idle Levels

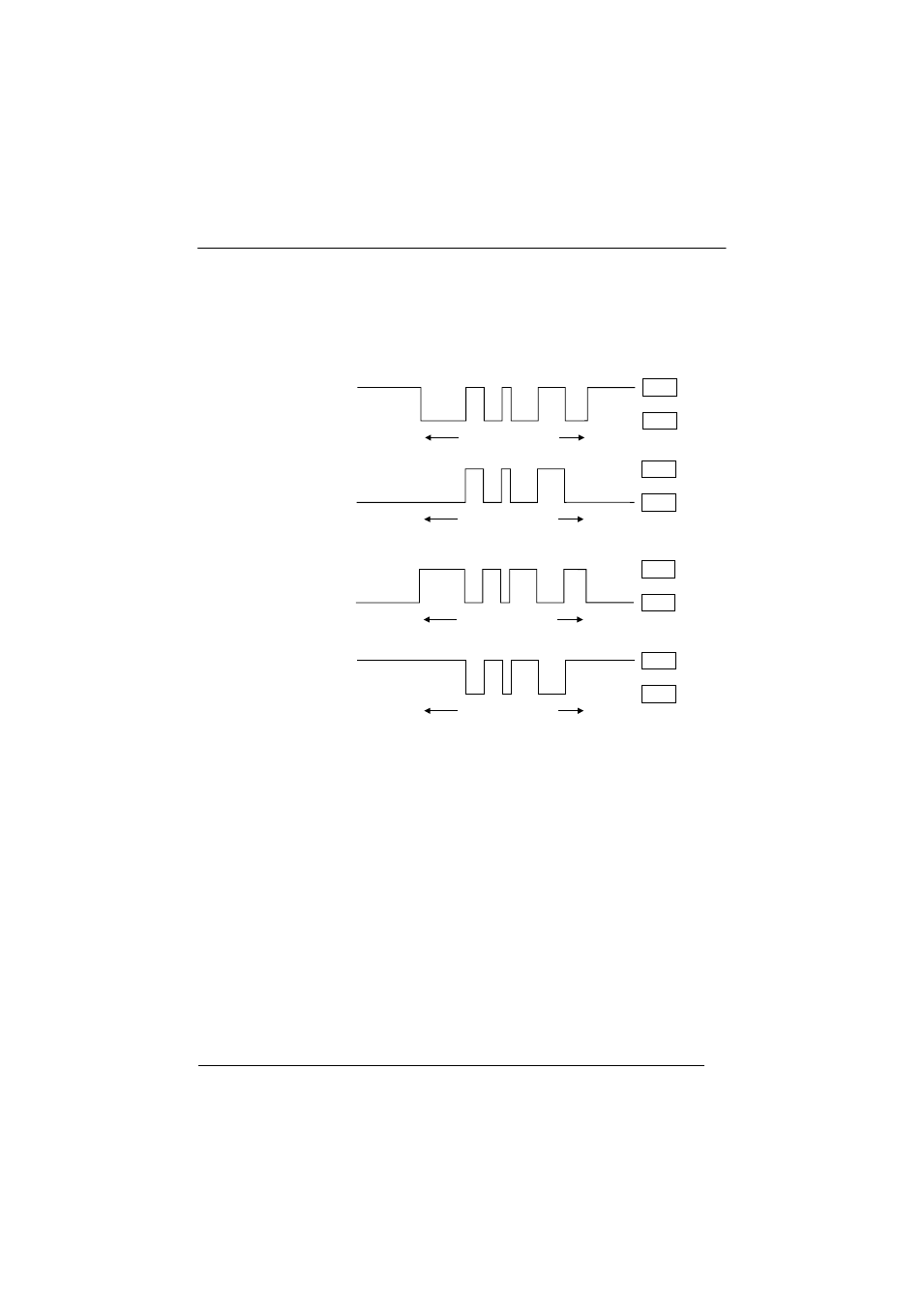

The following state diagrams describe the different output and idle level combinations

for Pen emulation:

bar

space

white

black

barcode output

idle

OUTPUT: Normal

IDLE: Normal

bar

space

white

black

barcode output

idle

OUTPUT: Normal

IDLE: Inverted

bar

space

white

black

barcode output

idle

IDLE: Normal

OUTPUT: Inverted

bar

space

white

black

barcode output

idle

IDLE: Inverted

OUTPUT: Inverted

Output and Idle Levels

4.2.5 Inter-Block Delay

For the PEN Emulation interface, data are sent to the Host in fixed size blocks of 20

characters each. The inter-block delay parameter allows setting a delay between

each block sent to the Host.

4.3 DATA FORMAT

For an overview of Message Formatting see Chapter

Error! Reference source not

found..
