GB Operating Manual Light control “PULSE HFMD - Vers. III“ GB Operating Manual Light control “PULSE HFMD - Vers. III“
List of functions
The following functions can be selected:
The bold-printed values are the in-factory defaults
Function Light bar (Fig. 6) Name
Function 1: LED 1 (dark green): Background light ON/OFF
Function 2: LED 2 (light green) External Switching ON/OFF
Function 3: LED 3 (yellow) Synchronous control ON/OFF
Function 4: LED 4 (orange) Write protection ON/OFF
Function 5: LED 5 (light red Light control ON/OFF
Function 6: LED 6 (dark red) Presence control ON/OFF
Function 7: LED 6+5 Sensitivity reduced ON/OFF
Function 8: LED 6+5+4: Switch-on automatic ON/OFF
Function 9: LED 6+5+4+3: Special function ON/OFF
Function 10: LED 6+5+4+3+2 Sensor LED ON/OFF
Function 11: LED 6+5+4+3+2+1 Demo mode ON/OFF
Function 20: LED 1-6 Follow-up time 5, 10, 15, 20, 25, 30 min
Function 30: LED 1-6 Presence range 10, 20, 40, 60, 80, 100 %
Key I
Light
bar
Key II
LED I
LED II
LED 1 2 3 4 5 6

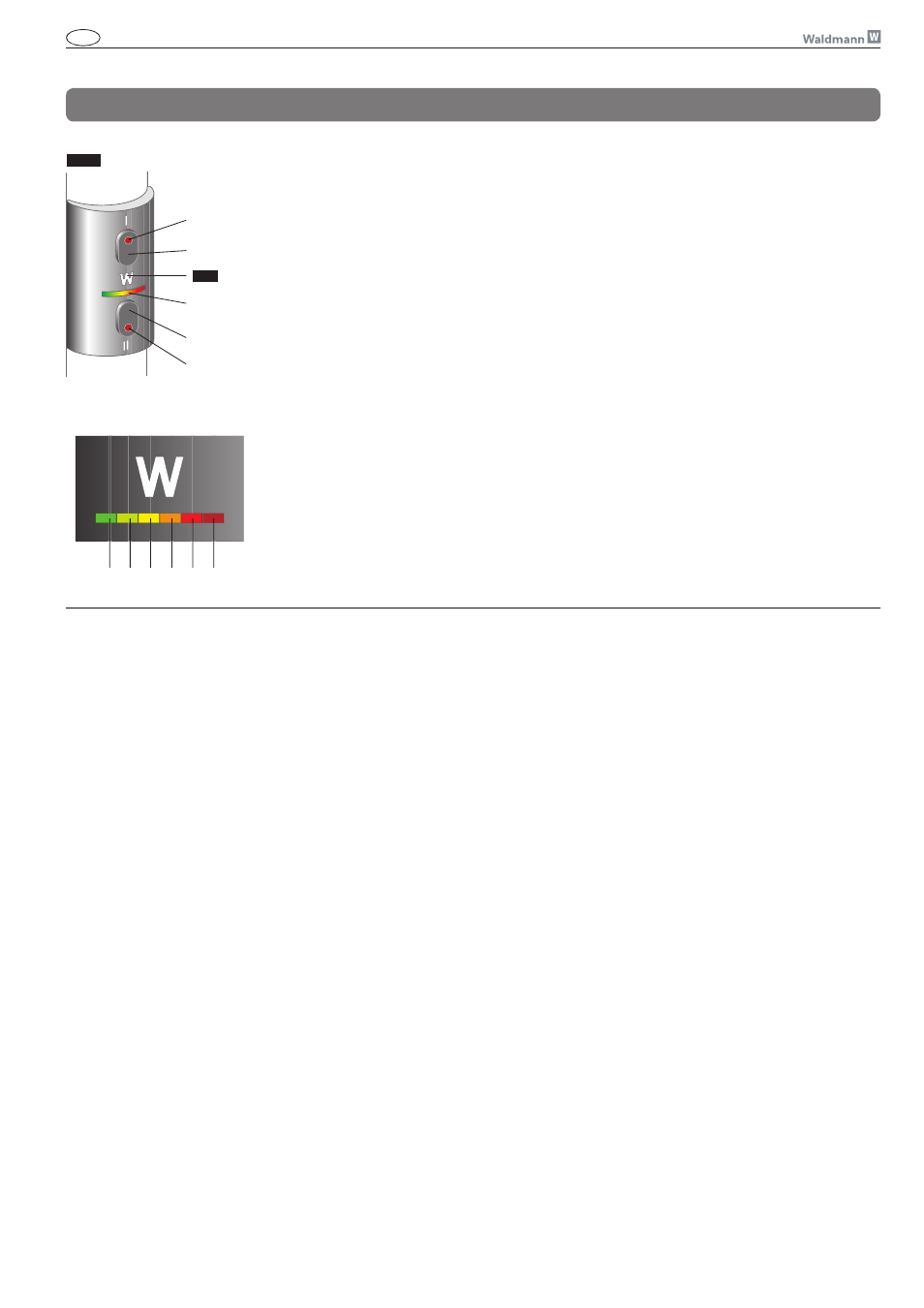

Fig. 6
Note: The functions written in red are not active. Please observe the explanations of the functions
on the following pages.
