Vortex Optics RAZOR HD 1-4X24 (MOA) - EBR-556 MOA User Manual
Page 8

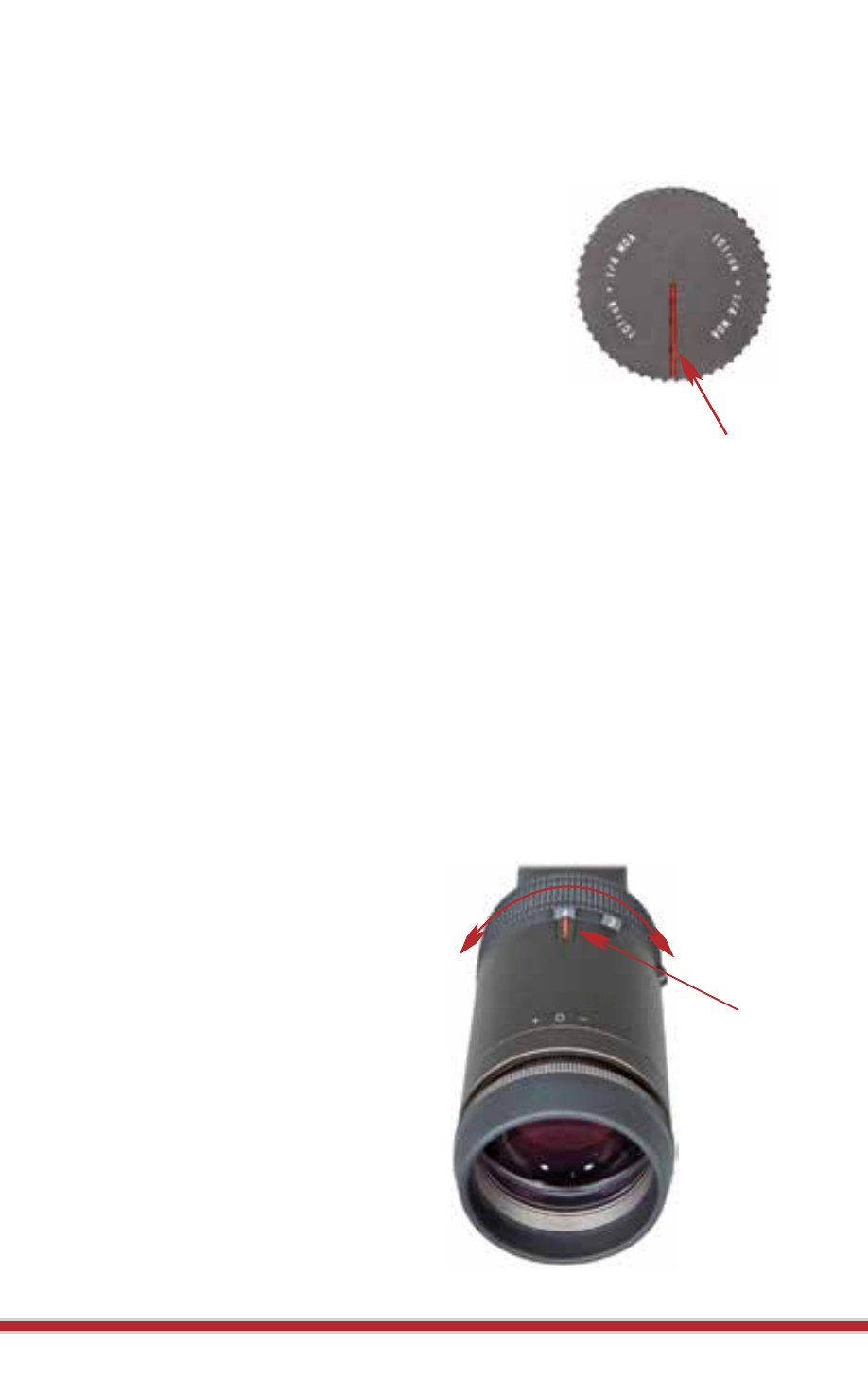

Radius Bar
MagView
8
To change magnifications, turn the magnification ring
to the desired level. The
patented Vortex MagView
will provide a low light
reference for magnification
level.
6
The Vortex Razor HD riflescopes incorporate the patented
Radius Bar to visually assist in keeping
track of the correct turret knob position
at the rifle’s zero. By watching the
position of the bar during field use, the
shooter can quickly verify the correct
turret knob position.
In a CQB type of situation, the shooter
can also use the Radius Bar as a quick visual aiming
reference.
To benefit from the Radius Bar, the turret cap must be
indexed with the zero reference line on turret post. See the
Sight In section for details on indexing cap.
Radius Bar
Variable Power Adjustment
