23 22 20 21

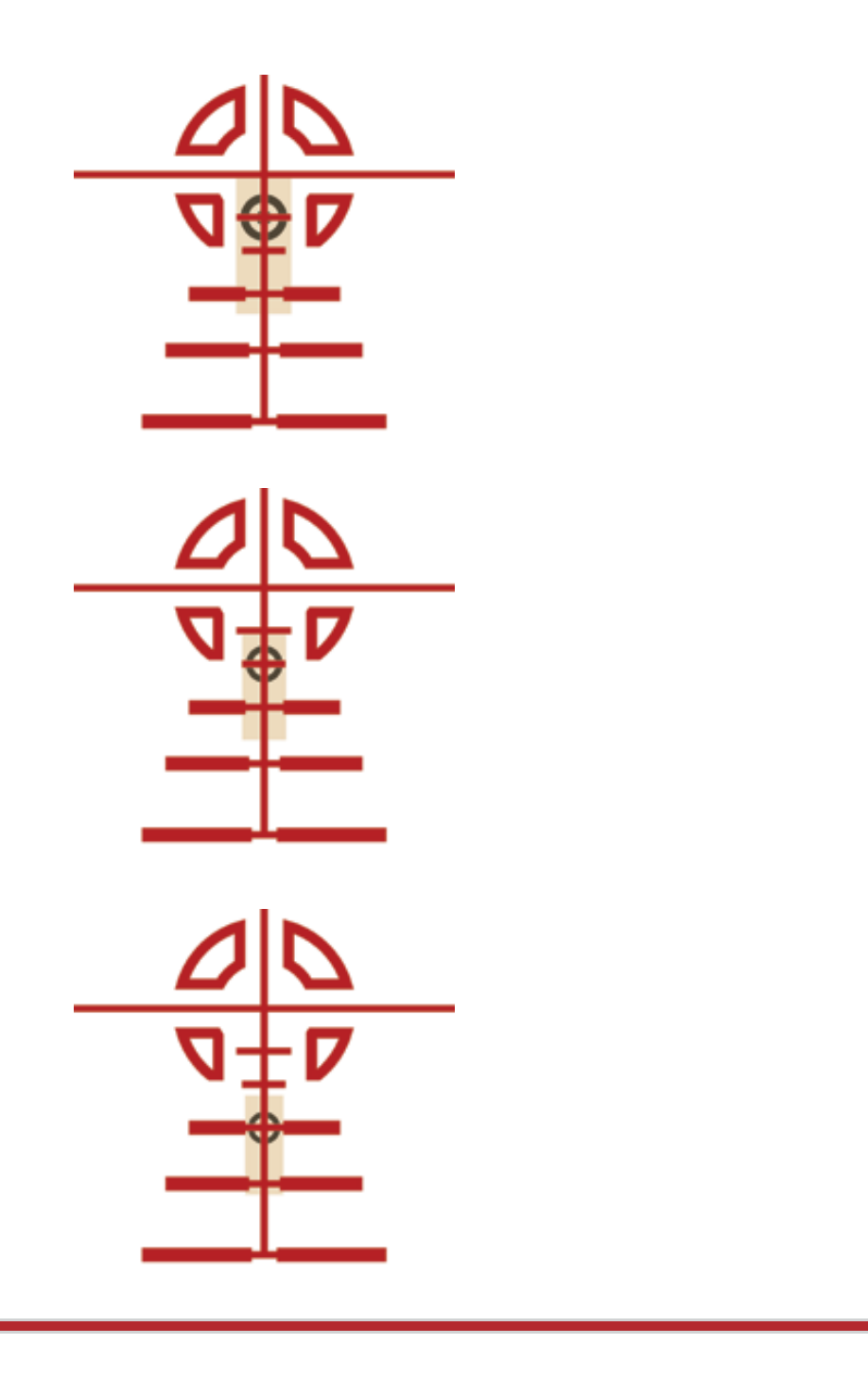

300-yard drop reference
line width (5.7 MOA)
approximately corresponds to
19 inches (a man’s shoulder
width) at 300 yards.
300 Yards
400-yard drop reference
line width (4.7 MOA)
approximately corresponds to
19 inches (a man’s shoulder
width) at 400 yards.
400 Yards
The fine inner line section
approximately corresponds to
19 inches (a mans shoulder
width) at these yardages: 500
(3.8 MOA), 600 (3.1MOA),
700 (2.7 MOA).
500-yard example shown.
500–700 Yards
