The Vortex Razor HD 1–4x24 riflescope incorporates
precision finger adjustable elevation and windage dials with
audible clicks.

Example: At a 100 yard sight-in distance, it will take four clicks of
the knob to move a bullet’s point-of-impact 1.05 inches.

Windage and Elevation Adjustments

To make adjustments:
• Turn the adjustment dial
in the appropriate direction
Up/Down or Left/Right
indicated by the arrows.
• Move the dials in the
direction you wish the
bullets point of impact to
change.

The Razor 1–4x24 riflescope uses clicks scaled in ¼ minute
of angle measurements (MOAs) so each small click will
move the point of impact 1/4 MOA. One full MOA equals
1.05 inches at a 100 yard distance: ¼ MOA will equal .26
inches at 100 yards, .52 inches at 200 yards, .78 inches at
300 yards, etc.

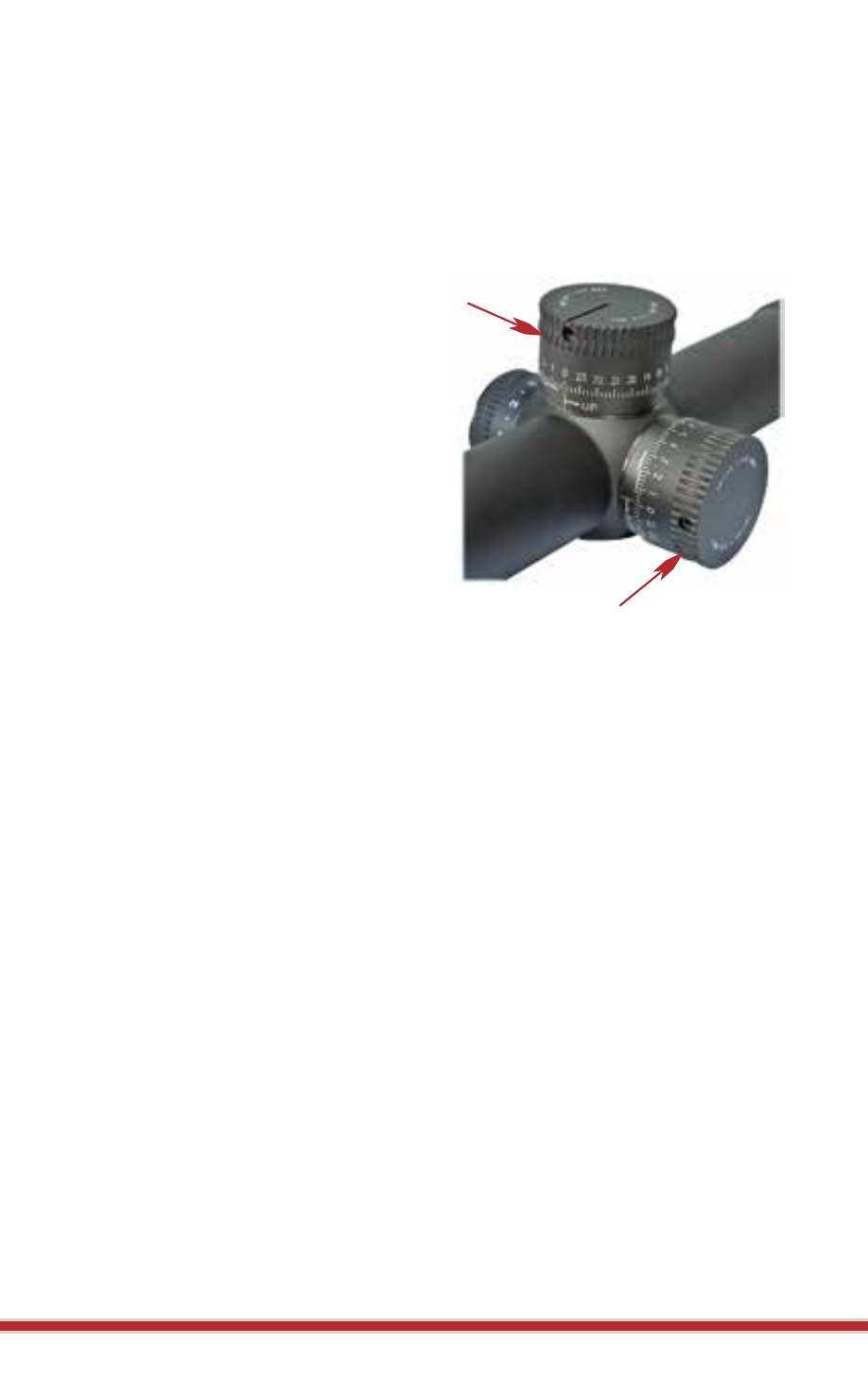

Windage
Adjustment Knob

Elevation
Adjustment Knob
