2
1
2
3
4
6
7
9
11
12
13
8
15
MODEL VG06062
NOTE: INSTALLATION MUST BE DONE BY A QUALIFIED, GLASS INSTALLER.
GLASS THICKNESS 3/8"
PLEASE READ INSTRUCTIONS BEFORE PROCEEDING
OWNER'S MANUAL
INSTALLATION INSTRUCTIONS FOR STANDING SHOWER CABIN
16

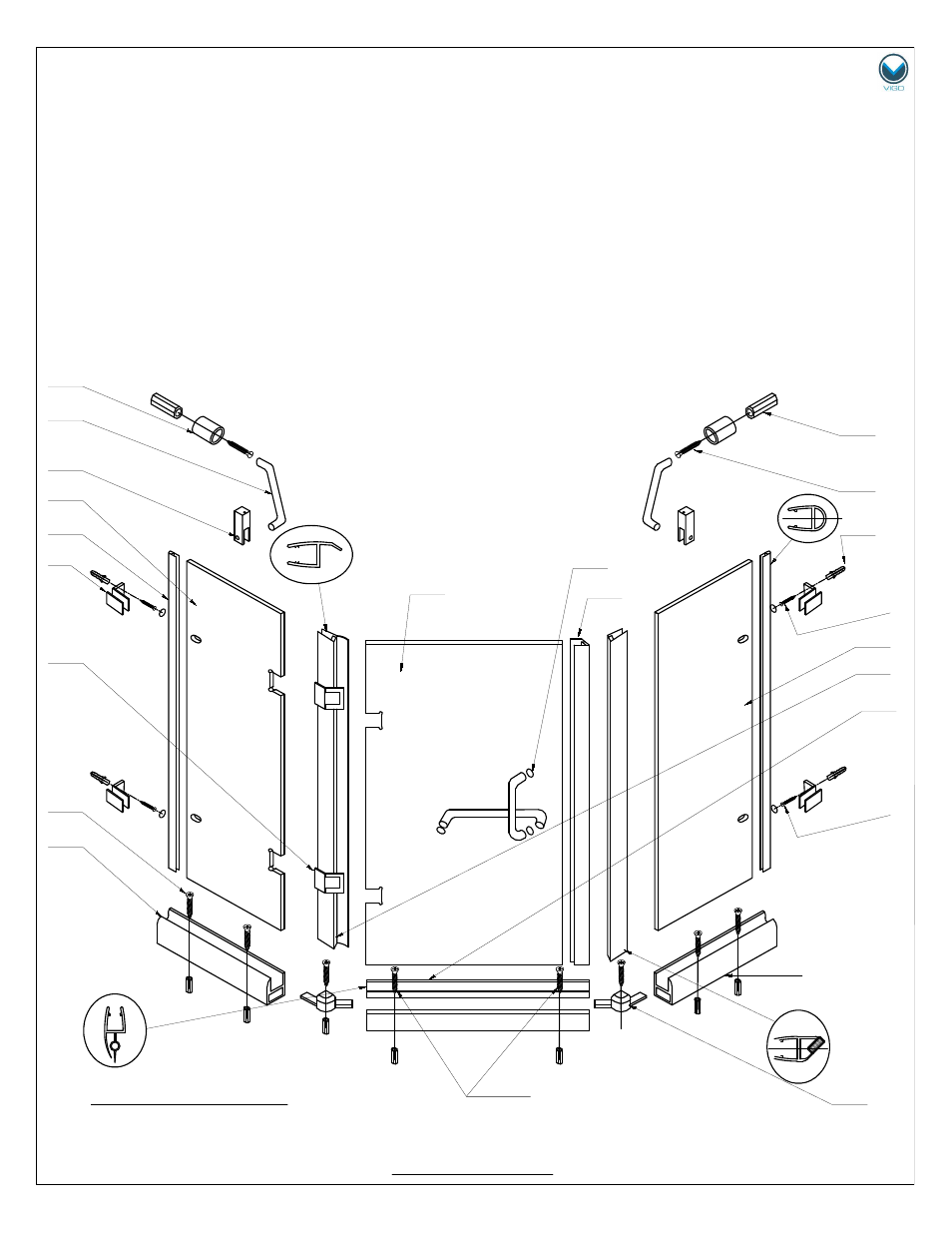

Packing List
1. Wall connector (2pc)
2. Structural arm (2pc)
3. Support assembly (2pc)
4. Side glass panel (with hinge slots, 1pc)
5. Side glass panel (without hinge slots, 1pc)
6. Side seal strip (2pc)
7. Glass support (4pc)
8. Hinge (2pc)
9. Bottom rail (3pc)
10. Door magnetic seal strip (2pc)
11. Bottom corner joint (2pc)
12. Handle assembly (1pc)
13. Door (1pc)
14. Door side seal strip (1pc + 1pc is extra)
15. Door bottom seal strip (1pc + 1pc is extra)
16. Phillips screw 1 1/8" (2pc)
17. Hex screw 1 5/8" (4pc)
18. Phillips screw 3/4" (8pc)
19. Plastic anchor green (10pc)
20. Plastic anchor white (4pc)
21. Hex screw covers (16pc)
22. Clear PVC shim (1pack)
23. Allen key pack (1 pack)
17
9
14
10
18
20
5
17 18
19
