Vigo VG06062 - Manual (Page 15)

DOOR PANEL
OUTSIDE
HANDLE
INSIDE HANDLE
SCREW
METAL WASHER
CLEAR
WASHER
WHITE TUBE
GLASS SUPPORT
THREADED SCREW

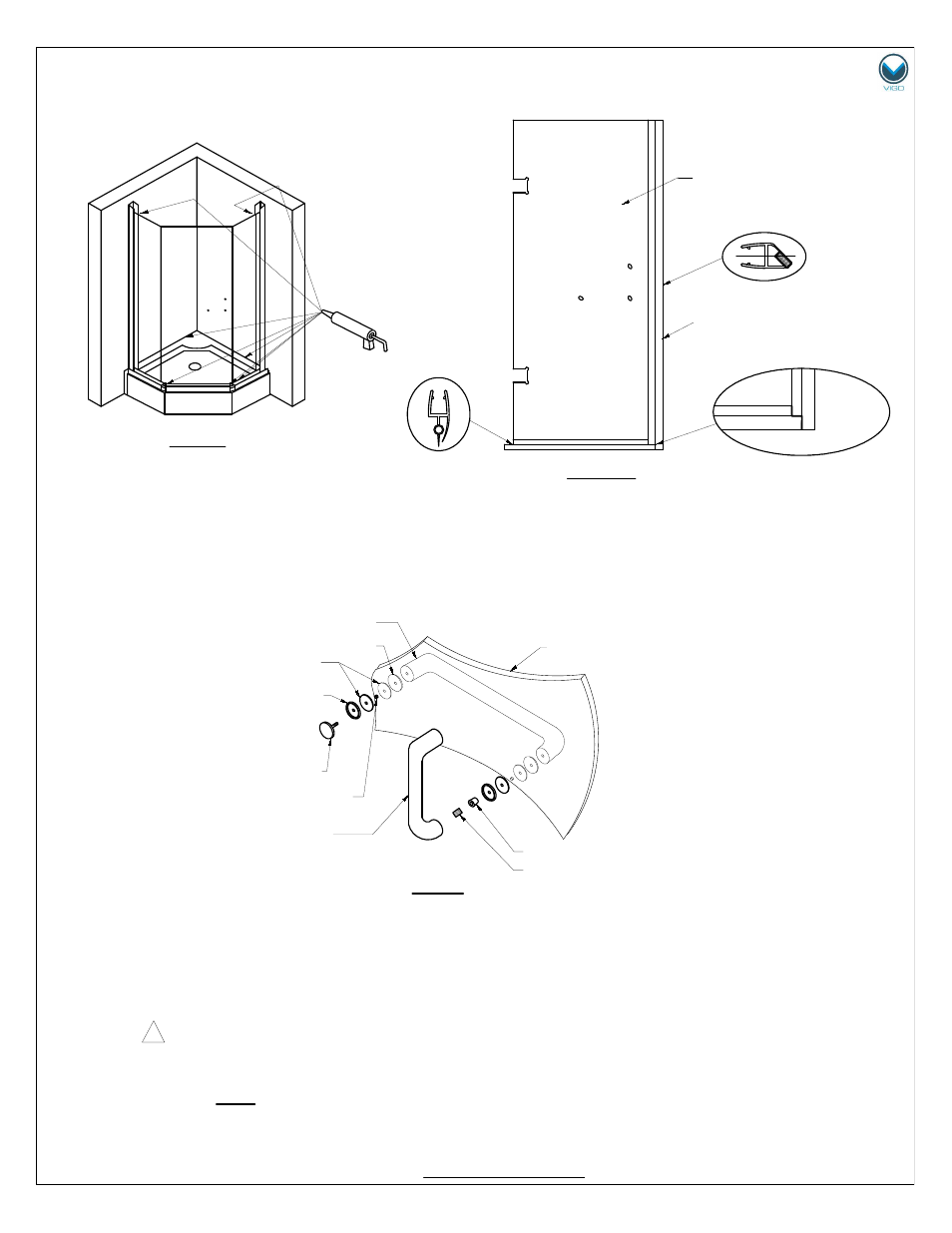

FIG.15
FIG.14
METAL
WASHER
IMPORTANT !
WAIT 24 HOURS BEFORE USING SHOWER
DO NOT ALLOW WATER TO DIRECTLY HIT DOOR SEAL STRIPS
J. HANDLE INSTALLATION
1. Assemble the door handles (#12) to the door (#13). [SEE FIG.15]
K. INSTALLING HEX SCREW COVERS
1. Install hex screw covers (#21) to the hex screws that mount the hinges and glass supports.
MODEL VG06062
15
13
10
15
13
15
10
FIG.14A
