MODEL VG06042

G. INSTALLING THE DOOR THRESHOLD

1. Measure the distance from side to side under the door and cut the threshold to the proper length.

Note that there are screw holes on both sides of the threshold, this makes the unit reversible.

Please make sure the threshold end with a screw hole (that was not cut off during the sizing

process) should be always placed by the side of hinge base mirrored (#2).

2. Place the left threshold end cup (#28) on the left end of the door threshold (#11). Then carefully

align the door threshold and threshold end cup under the door panel. The threshold end cup should

be placed against the turning point of the hinge base mirrored, while the other end of threshold

should be placed against the wall. [SEE FIG.8 AND FIG.8A].

3. Remove the threshold end cup and mark a hole on the floor for the threshold screw. Remove the

door threshold and drill hole into the floor. Insert plastic anchor (#16) into the hole. Replace the
door threshold and screw into the floor with 1

1/8 " phillips screws (#15). Recover the threshold end

cup.

F. INSTALLING SEAL STRIPS

1. Install the door side seal strip (#12) to the door when the door edge towards the wall is away from

the turning hinge base (#1). If maximum length of the shower enclosure is required and the door
edge is within rubbing distance of the glass support install the side seal strip without bump (#9) .

[SEE FIG. 7].

2. Install the door bottom seal strip (#10) onto the bottom of the door panel.
3. Install F-shaped seal strip (#23) the door panel.

9 or 12

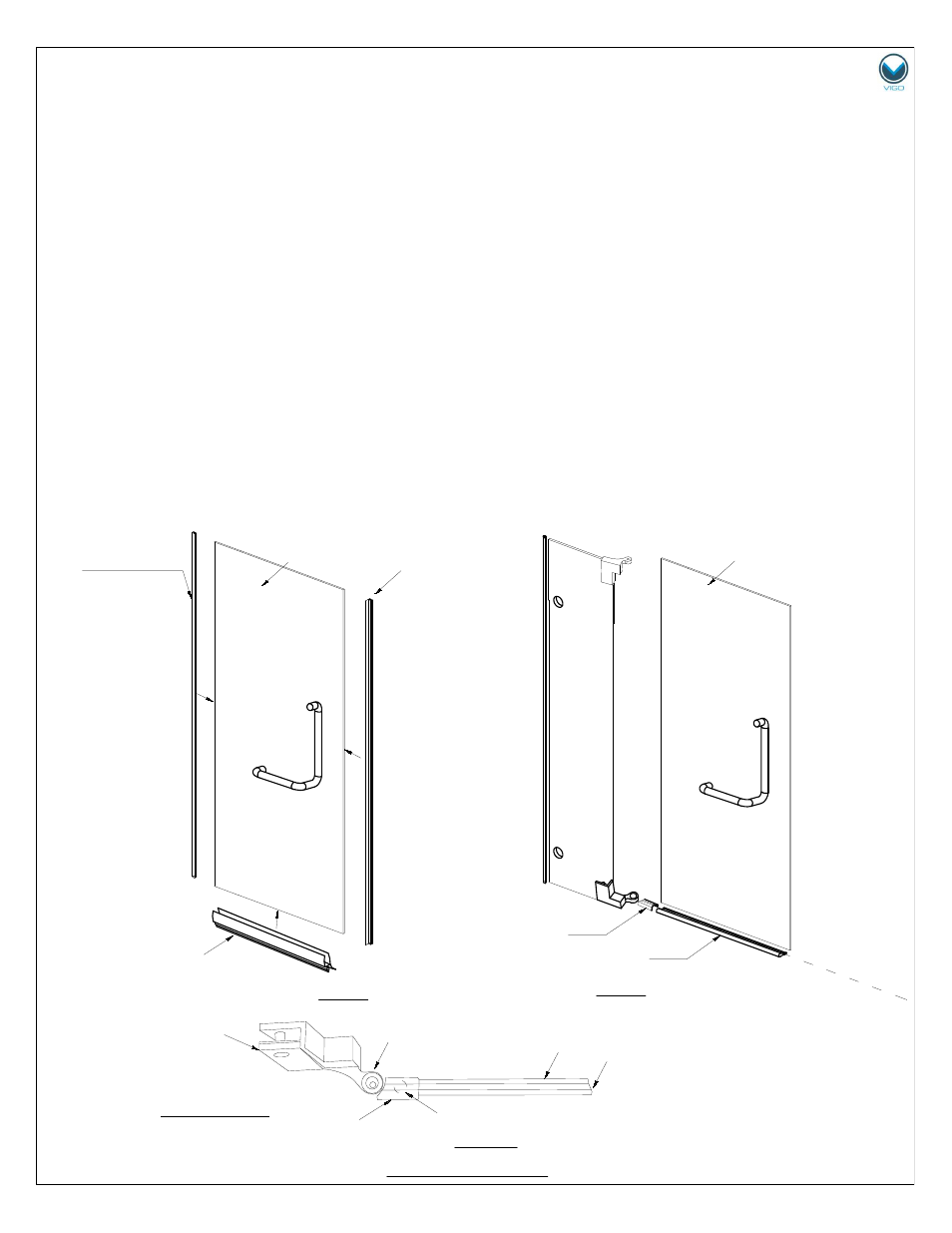

FIG.8

FIG.7

TOP VIEW

FIG.8A

VIEW WITH PART

4 REMOVED

WALL

SCREW HOLE
