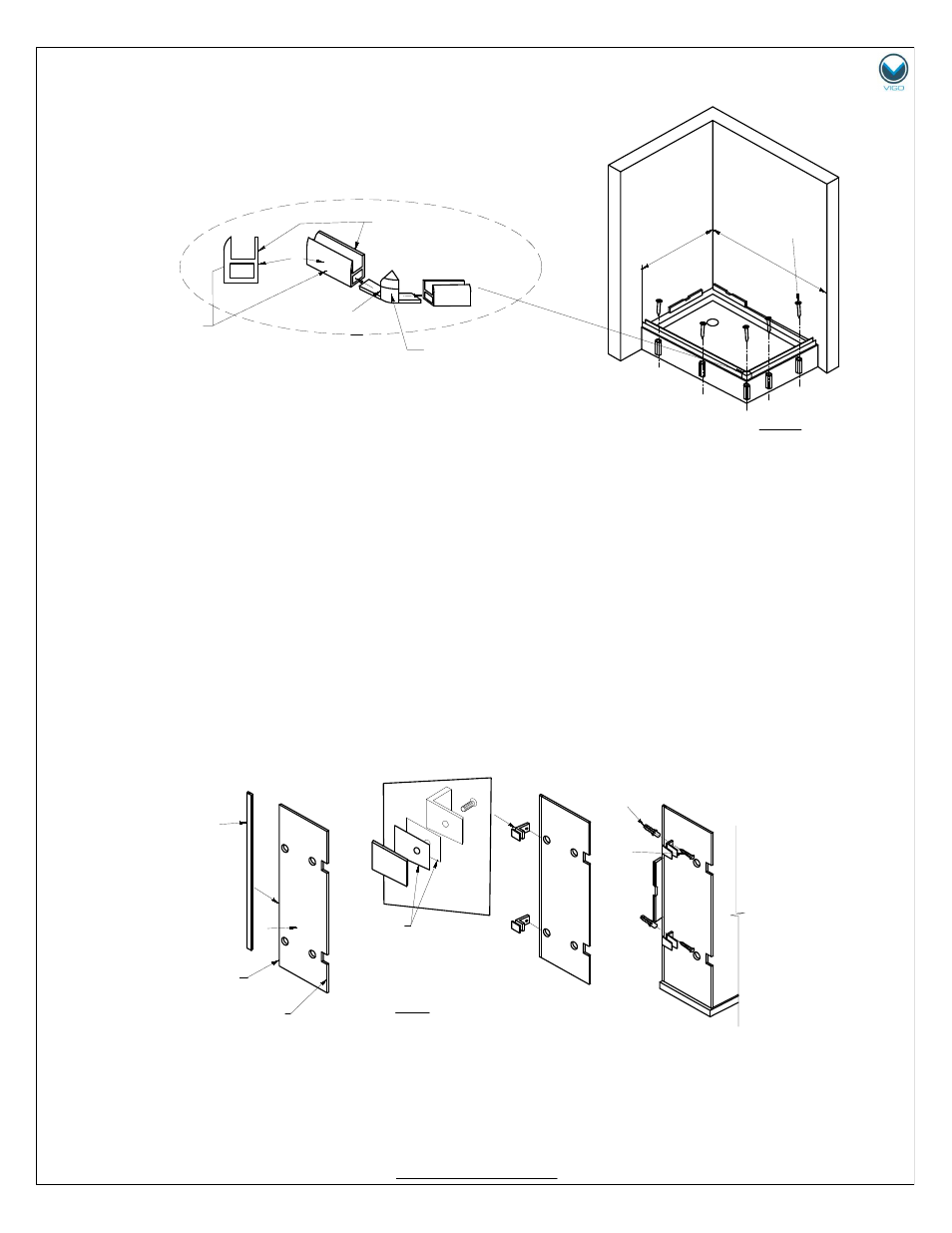

FIG.2
FIG.3
THIN
GASKETS
6
WALL
SIDE
DOOR
SIDE
20
17
5
A B
9
11
THIS EDGE LOOKS
OUTSIDE OF THE SHOWER
THIS EDGE LOOKS
INSIDE OF THE SHOWER
18
6
MODEL VG06011
B. INSTALLING THE FRONT & SIDE GLASS PANEL
1. Arrange glass to the preferred configuration. [SEE FIG.1A]
2. Install the seal strip (#6) to the wall side of the front glass panel (#5). [SEE FIG.3]
3. Screw in the glass support (#7) with the hex key to the front glass panel (#5). Be sure to use
washers on both sides of the panel.
4. Place the front glass panel onto the bottom rail (#9).
5. Mark holes on the wall for the mounting screws.
6. Remove the front glass panel and drill holes into the wall. Insert the plastic anchors (#20) into the
holes.
7. Replace the front glass panel. Screw into the wall with 1 5/8" screws (#17)
8. Repeat steps 1 through 7 for side glass panel (#4). [SEE FIG.4]
SLIDE TOP OFF TO
INSTALL 3/4" SCREW
