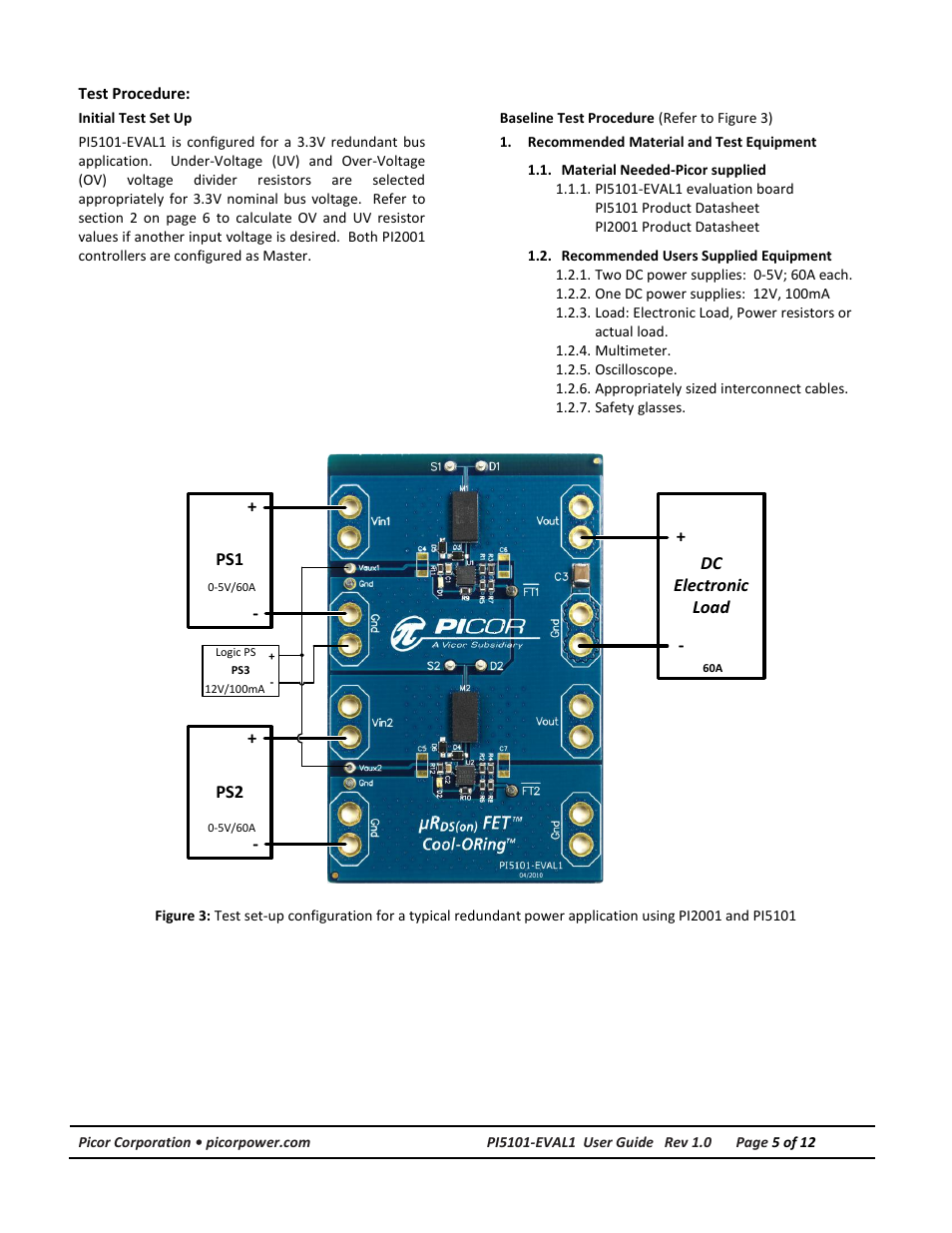

Test procedure, Recommended material and test equipment, Test set-up configuration – Vicor PI5101-EVAL1 3.3V/60A High Side Active ORing Evaluation Board User Manual
Page 5
