Unisteer 8010920-01 Late 1967-70 Mustang Rack Kit User Manual
Page 7
Page 7
655650

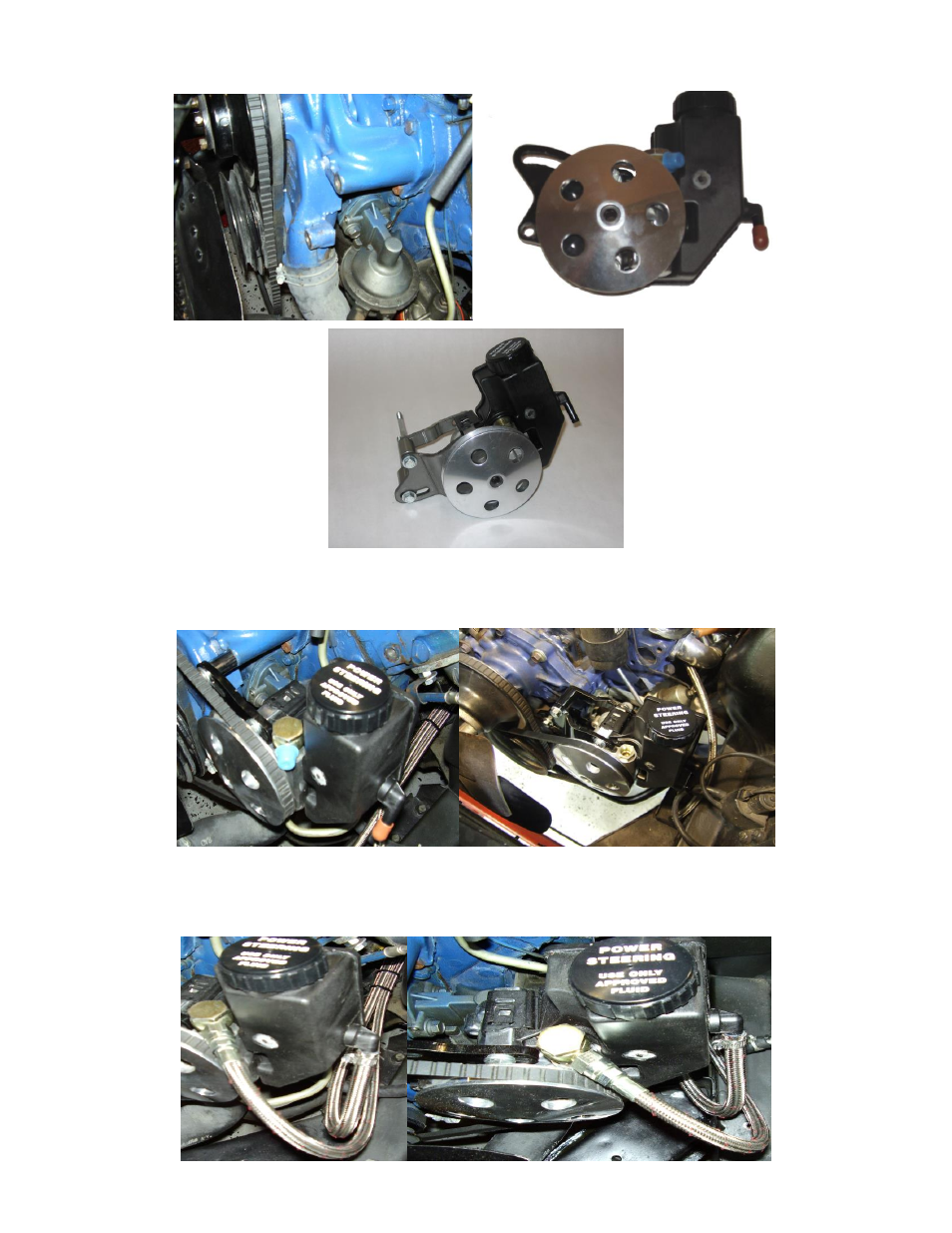

11. The power steering pump is an easy install and comes with the pump brackets attached to it.
If your car was equipped with power steering you will need to remove the stock pump and
brackets that held it on the motor.
12. Once removed, install the new pump and bracket in place and attach it with supplied
hardware and standoffs provided in kit.
13. The power steering lines have fittings on them that can only be installed one way at the
pump. If you are unclear at all you can trace the lower port on the rack and pinion following
the lineup to the pump. This is the pressure line. The top port at that rack is the return port,
which goes to the plastic reservoir. Be sure to tighten the clamp.
Big Block Pump
Small Block Pump
Small Block Pump
Big Block Pump
