11. When that step is done you now need to measure down 1-3/4” from the flat surface of
the bearing to the end of the steering shaft and mark it. Cut the steering shaft off at
that mark.

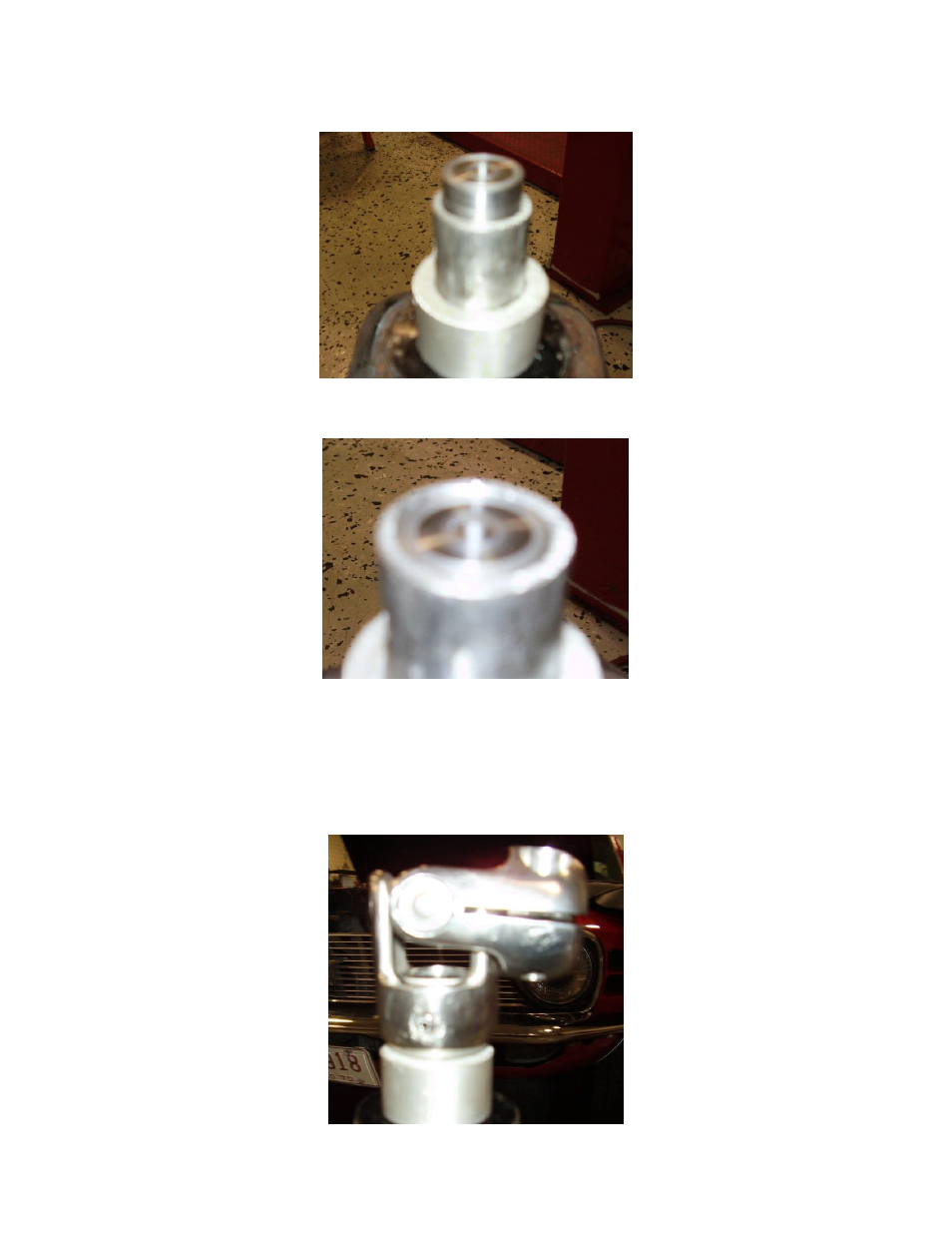

12. You now need to install the provided aluminum bushing over the shaft.
13. Next install the solid piece of steel stock into the steering shaft. Make it flush with the
steering shaft.
14. Next install the u-joint over the steering shaft. Using the supplied drill bit and the
pilot hole in the u-joint drill through the pilot hole and clear through the other side of
the u-joint. Note keep your drill as straight as possible. We recommend the use of a
drill press.
15. Next install the roll pin provided in the kit. Tap it into place and then install the
smaller pin inside of it. This will lock it in place.
16. You can now reinstall your steering column assembly.
