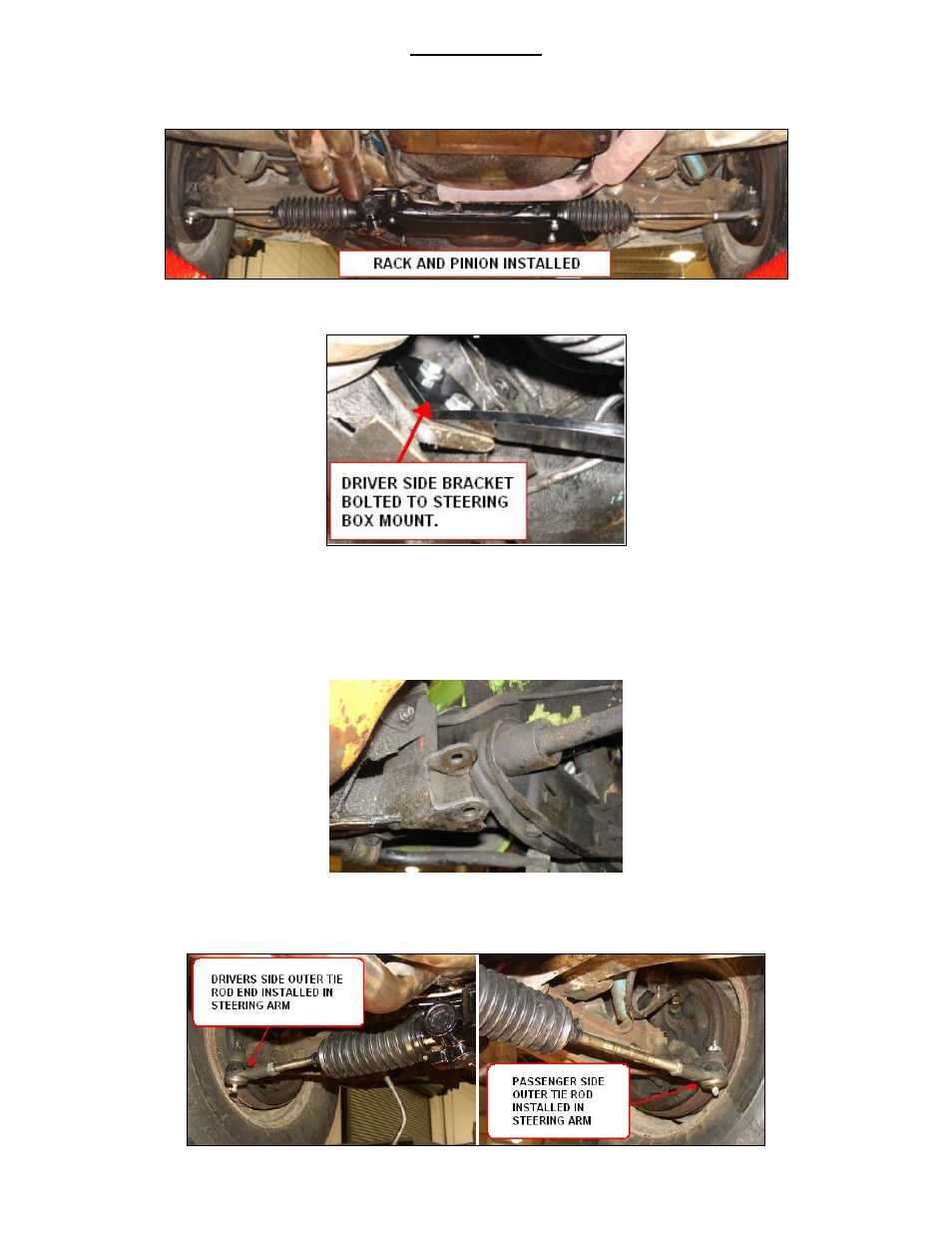

Installation
The rack and pinion unit arrives to you pre-assembled and centered, do not turn the pinion off of
center. The mounting bracket of the rack mounts to the same mounting holes for the stock
steering.
1. Maneuver the driver side of the bracket up to the two stock mounting holes and loosely bolt in
with the provided hardware (see below).
2. Bolt in the passenger side bracket so that the tab on the bracket is flush with the bottom of
the tab on the frame. Use supplied lock nut and bolt* to secure in place.
*Some applications have a double tab on the passenger side. If the car is equipped with the
double tab it will be necessary to use the supplied spacer 205880 and longer 231350 mounting
bolt. Place the spacer between the tabs and secure the bracket in place. See picture below for
an example of the double tab frame.
3. Leave Mounting Hardware loosely bolted in for the shaft installation later.
4. Adjust the thread on outer tie-rods equally until the studs line up with the steering arms. Bolt
the studs to the steering arms, tightening the castle nut and inserting the coder pin.
