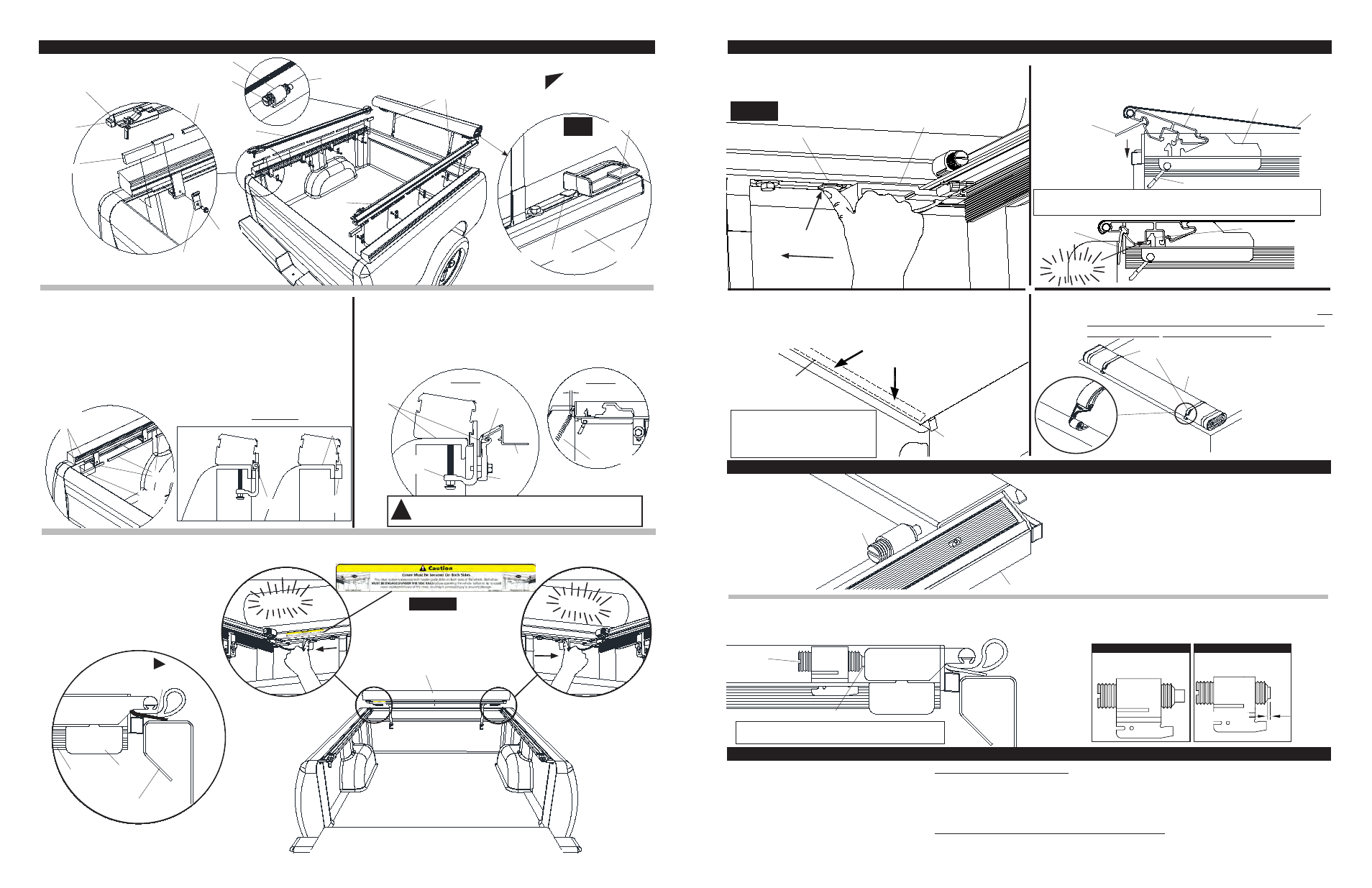

TruXedo Lo Pro QT/Invis-A-Rack - Manual (Page 2)

Inside Bulkhead
Side Rail
Header seal on
top of bulkhead
Passenger’s
Side Rail
Bracket
Spring Plunger
Safety Straps
STEP 1: After Invis-A-Rack has been installed, drill hole in J-hooks for
clamp half if needed (see template). Clean all areas where
adhesive block seal and D-seal will be applied, apply silicone
to areas shown on silicone instruction sheet. Seals will need to
be custom cut for each application. Block seal will start at the
notched out sections and continue to the tailgate in the rear, and
the bulkhead in the front. Keep Block seal flush with the top of
truck rail. D- seal will be placed between J hooks in the track
at the lowest position. When applying seals, cut long
and compress to allow for shrinkage.
STEP 2: Attach the TruXedo rails to the Invis-A-Rack J hook as in
Detail A. Clamp must hook side rail as shown. To get the
correct TruXedo rail alignment from front to back, See
Detail-B. Compress the rear seal against the closed tailgate
and hold. Attach clamps starting at the tailgate. Install 4
clamp halfs along each TruXedo rail. Tighten all clamps.
STEP 4: Push header guides into place under side rail. A click sound
will indicate a secure attachment. See detail D & E below.
STEP 3: Set cover assembly behind cab with header seal on top of of
bulkhead. See detail C.
SIDE RAIL & COVER INSTALLATION
Driver’s
Side Rail
Rubber
Seal
End
Plug
Invis-A-Rack
J Hook
FRONT OF
TRUCK BOX
Bottom
View
FRONT OF
TRUCK BOX
Clamp
Half
TENSION
CONTROL
Cover Assembly
T
ruck
B
ox
F
ronT
Side Rail
Tighten clamps securely on side
rails before driving vehicle.
WARNING !
Pull cover over rails
Toggle
Press edges
STEP 8: To release cover, Trigger pull rear release toggle. Start rolling
cover toward cab making sure both sides of cover roll evenly. For
best results leave unrolled portion of cover attached to the hook
fastener and Velcro ® loop fasteners while opening.
STEP 9: Set tension during warmest part of day. With cover closed, release hook and loop fastener from both side rails near cab. Check
compression of both spring plungers against the front header per diagram. Roll cover open and make adjustments. Close cover and
re-check adjustment. Repeat until satisfactory tension has been achieved.
Header
Cover
Toggle
Header Seal
Header Stop
Adjust HERE
with
flat screwdriver
LATCHING & UNLATCHING COVER
Cover secured
open
Safety
Straps
Side Rail
Front Header
Spring Plunger
EVER-TITE™
AUTOMATIC
TENSION
CONTROL
• Spring plunger compensates for material expansion &
contraction caused by temperature changes.
• Check cover tension after installation, seasonally, and after
extreme temperature changes.
• For best performance, adjust tension regularly to protect
your cover against wind wear.
COVER TENSION ADJUSTMENT
Lock toggle into header
Header seal
inside tailgate
Spring Plunger
Front Header
NOTE: Adjust tension in small increments.
Slight adjustments will gain significant results.
HEADER WILL NOT LATCH:
Check side rails to make sure they are level. See Step 2.
Make sure the header seal is not caught between side rail & header.
Check position of side rails on pickup box, they may be positioned too low. See Step 2.
Make sure cover has proper tension. See Step 9.
FABRIC COVER IS TOO TIGHT OR TOO LOOSE: See Step 9 to adjust tension.
* VELCRO ® is a registered trademark of the Velcro companies.
TROUBLE SHOOTING
Questions?
Call our friendly customer service staff
at TruXedo Toll Free:
1-877-878-9336
Mon - Fri 8 am - 5 pm CST
STEP 6:
Always close cover before closing tailgate.
Unroll cover toward tailgate and rest bows on side rails.
Rotate header into header stops and press down to lock
toggle into header.
Secure cover
open by hooking
safety straps to
front loops.
STEP 7: Secure hook fastener and Velcro ® loop fastener strips on
one side of rail, by pressing along full length of rail. Pull
cover tight across pickup bed, and secure fasteners on
opposite side rail.
NOTE: Secure hook fastener and Velcro ®
loop fastener along entire length
of both side rails before driving
vehicle. This will prevent wind lifting
the cover and causing damage.
NOTE: If tailgate has a key lock, TruXedo ® is secured until tailgate
is unlocked and opened.
Hook and loop
fastener
COVER TOO LOOSE
TURN SPRING PLUNGER
SCREW CLOCKWISE
CORRECT TENSION
DURING WARMEST
PART OF DAY
No Less Than 1/16”
Clamp
Half
D
eTail
-a
Height
Flush
D
eTail
-B
3/16” compress
seal
Closed Tailgate
CLICK CLICK
Header Guide
N
otice
STEP 5: If you want to remove cover assembly push up on
retainer tab with thumb and pull header guide over retainer
until it stops. Do this for both passenger and driver side. Then
lift cover assembly off of side rails.
DetAiL “c”
Push Up To
Release
Move Header Guide To
Disengage.
Passenger Side
Shown
Header Guide
Retainer Tab
HOW TO REMOVE COVER ASSEMBLY
DETAIL “E” DETAIL “D”
Block Seal
D Seal
Self Tapping
Screw
s
ecTion
V
iew
Flush
Notched Out
Section
D Seal
Block
s
eal
Hook
Side Rail
CLICK
Block
s
eal
D Seal
Header Guide
Cover
Assembly
Header Guide Retainer
