lo pro tundra step side clamp/adapter pan continued
truxedo, inc.
P.O. Box 1078, 2209 Kellen Gross Dr., Yankton, South Dakota 57078
Call Toll Free: 1-877-TRUXEDO (1-877-878-9336) Fax: (605) 664-9304
Visit us online: http://www.truxedo.com
___ 2 ___
36”
9”
8”
17”
front of
box
clamp
tailgate

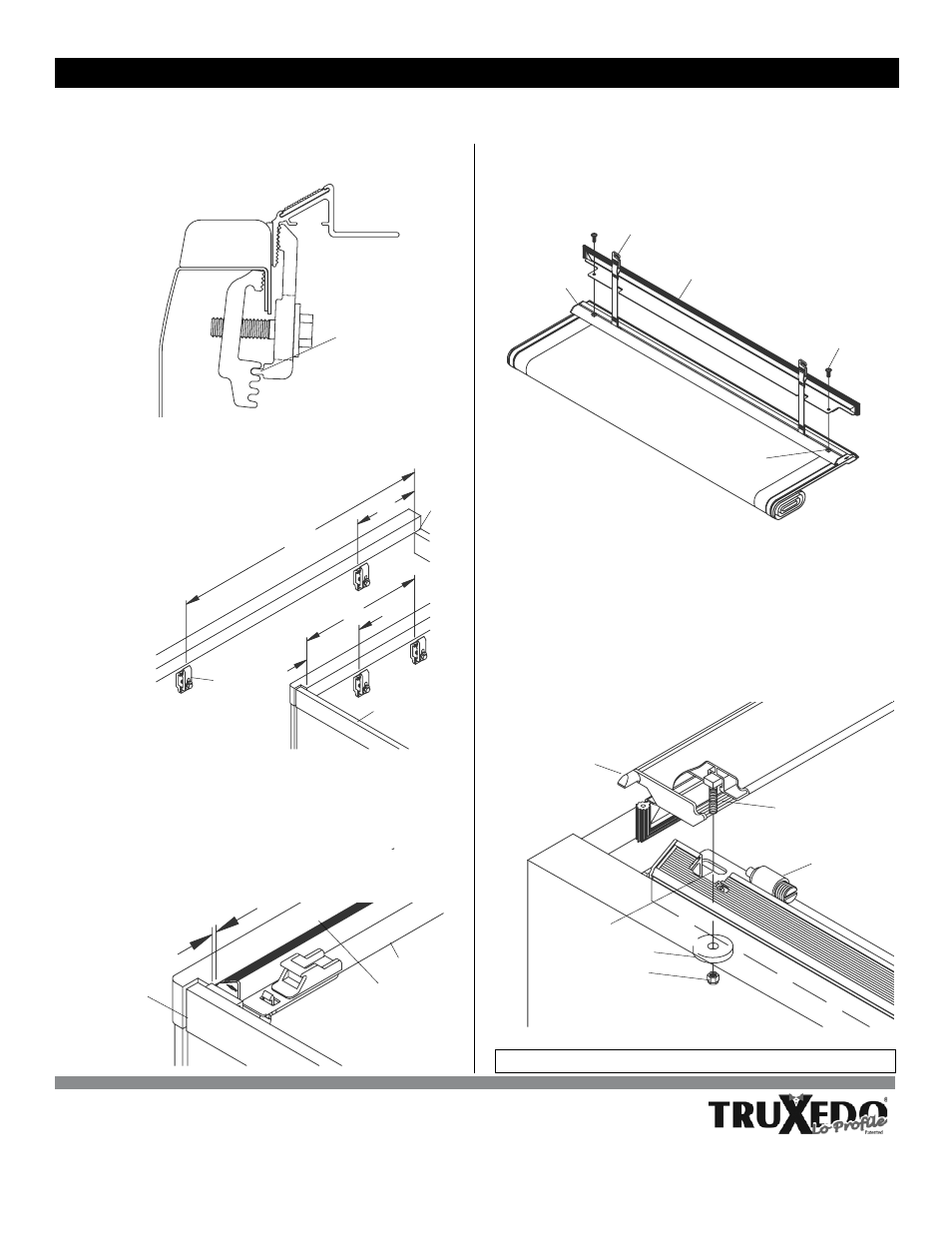

STEP 4:
Clamp side rails to
pickup bed at loca-
tions shown.
side rail
1/2”
tailgate
bed rail
STEP 5:
Align side rails 1/2” from tailgate, flush with bed rail and
level with each other. Tighten clamp assemblies (see
Owner’s Manual).
STEP 6:
Center pan adapter on front header. Fasten 3/8” x
3/4” stove bolts through holes in pan adapter and
into square nuts inside header slot. Tighten bolts.
square nut,
3/8”
front header
cover
stove bolt, 3/8” x 3/4”
clamp adapter pan
STEP 7: Front header:
Back spring plunger out. Set cover
assembly across cab end of side rails. Insert screws
in front header through slots in side rails. Secure with
plastic washers and lock nuts, but do not over tighten.
Header must be free to slide.
front header & cover
assembly (cover not
shown for clarity)
spring
plunger
plastic washer
lock nut, 3/8”
slot in side rail
screw in front
header
note: Refer to Owner’s manual for cover installation.
STEP 3:
Position clamps 9” and 36” from front of box; and 8”
and 17” from tailgate (four clamps per side rail).
assemble & install
adjustable clamp as
shown
safety strap
