8/0 steel entry doors – Therma-Tru COMP 6 Steel Door Panel Dimensions - U1 Revised User Manual
Page 21
Steel
Door Panel
Dimensions
Comp 6
2014 (U1 REVISED)
6.21
8/0 Steel Entry Doors
Note: 2/0 only.
4-1/64”
23-25/32”
15-3/4”
5-3/8”
95-3/64”
81-3/4”
7-59/64”
This space intentionally left blank.

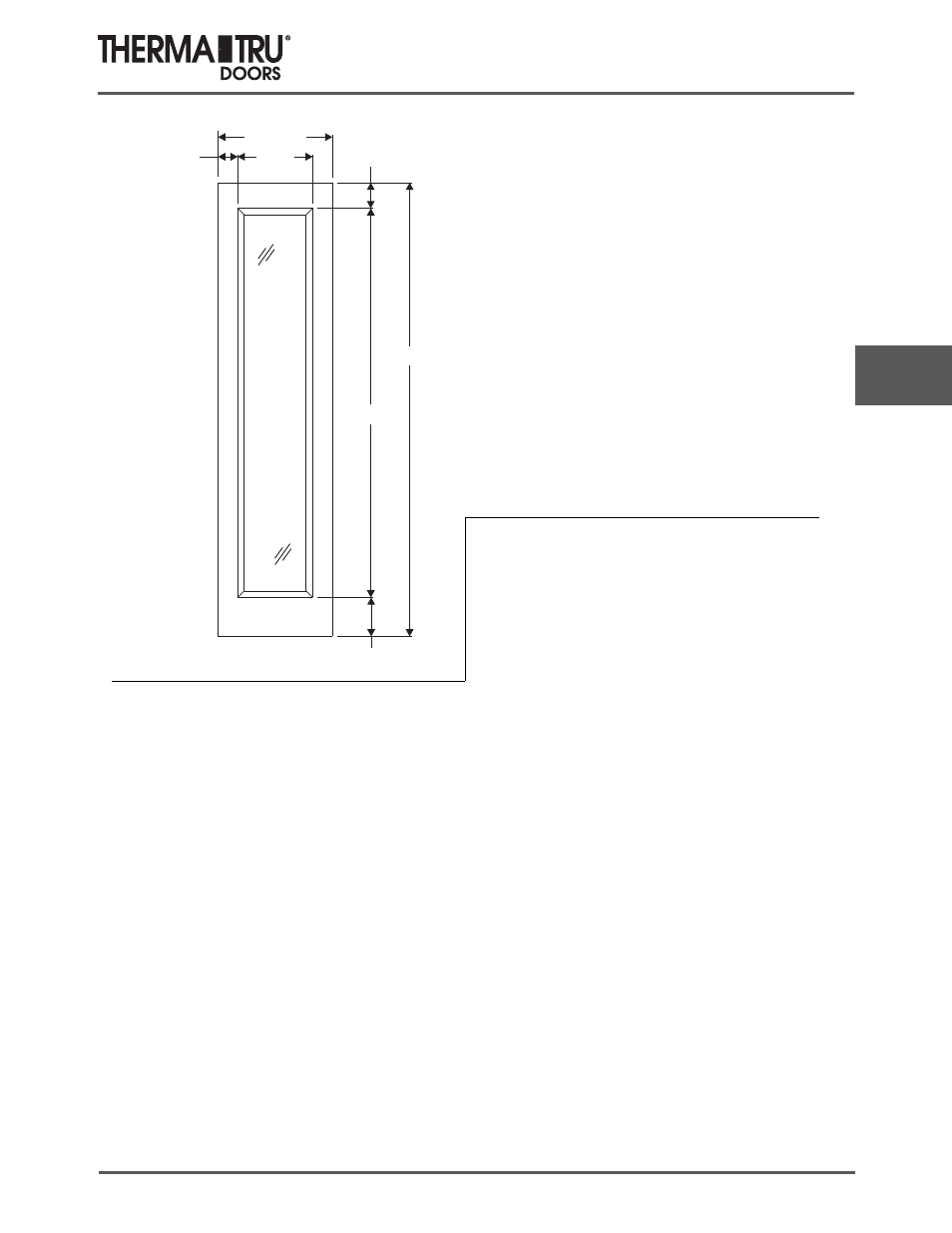

8’ Full Lite Flush
(840, 842, 1480)
(Impact - 840H, 842H, 1480H)
(Slab - D8100U1)
Note:
For Optional Grille Locations,
See Arch 1.
Daylight Opening: 12-13/16" x 78-13/16"
(1027 sq.in.)
