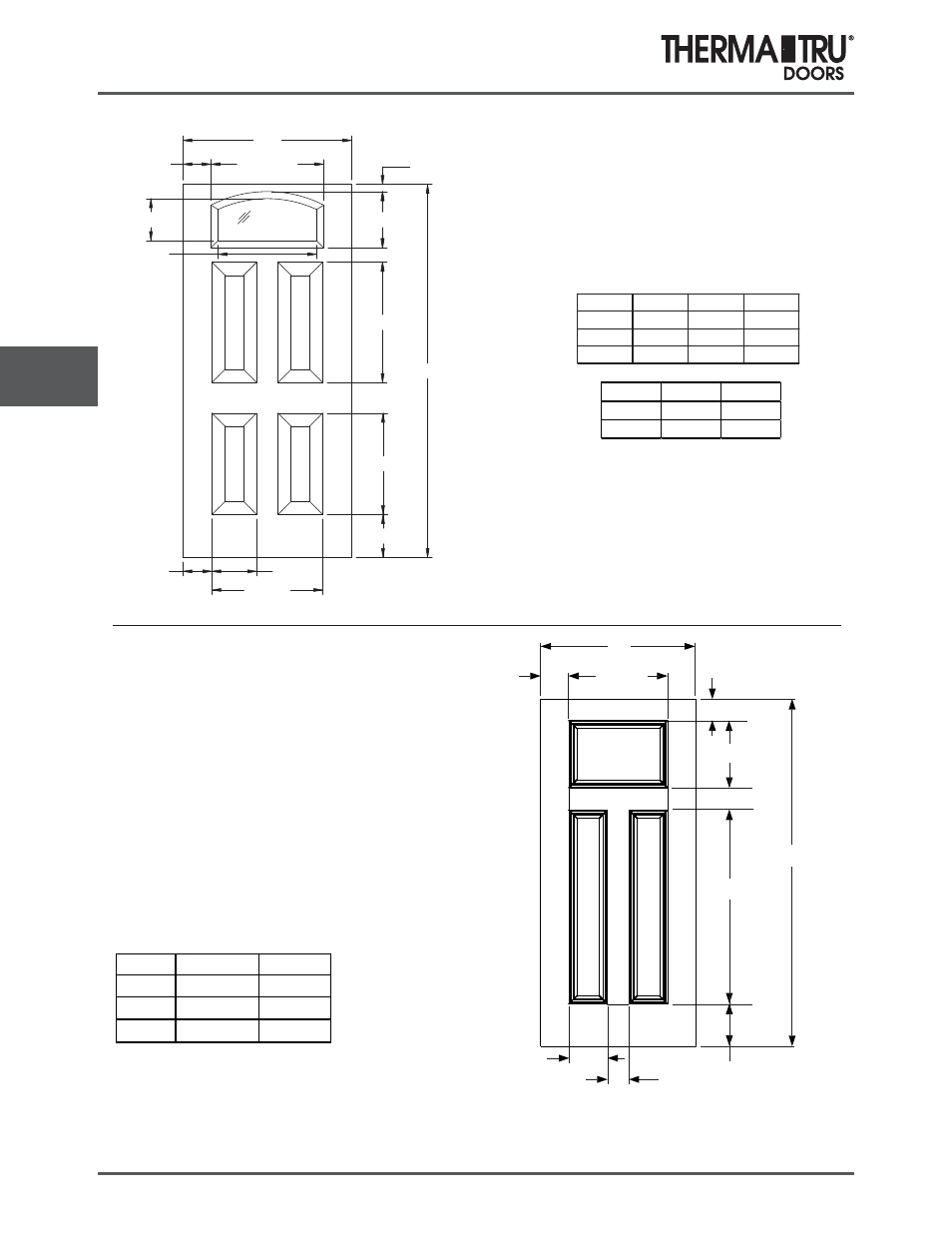

Steel
Door Panel
Dimensions
6.18 2014 (U1 REVISED) Comp 6
6/8 Steel Entry Doors
A
B 22-7/8”
4-13/16”
79-3/64”
5-1/16”
44-3/8”
15-7/16”
9-23/64”
8-15/16”
5”
2 Panel Craftsman Flush
(Slab-HD203U1)
A
31-25/32”
34-25/32”
35-25/32”
Size
2/8
2/10
3/0
B
4-29/64”
5-29/64”
6-29/64”
1/4 Arch Lite 4 Panel Flush
(Glass - 2210A)
(Slab - HD254U1, TS254U1)
Daylight Opening: 20-29/32" x 8-29/32"
(170 sq.in.)
1 1/2"
11 29/32"
3 1/16"
25 1/2"
21 1/2"
23 29/32"
8 29/32"
20 29/32"
9 1/2"
23 1/2"
A
B
C
Size A B C
2/8 31-25/32" 3-31/32" 4-5/32"
2/10 33-25/32" 4-31/32" 5-5/32"
3/0 35-25/32" 5-31/32" 6-5/32"
E
D
Size D E
6/8 9-7/64" 79-3/64"
7/0 13-7/64" 83-3/64"
