Therma-Tru COMP 8 Sidelite Panel Dimensions - U1 Revised - Manual (Page 11)

Sidelite
Panel
Dimensions

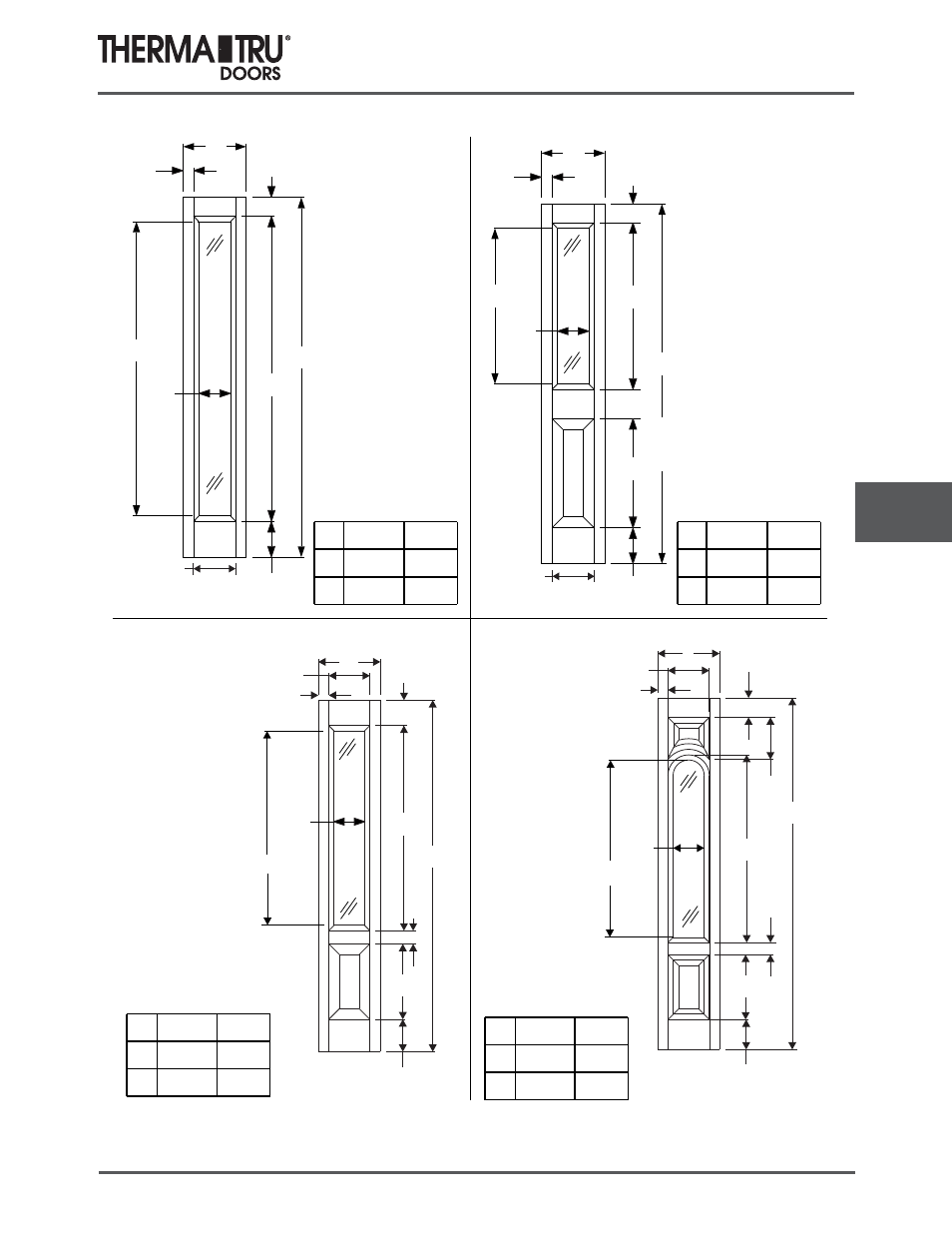

Comp 8 2014 (U1 REVISED) 8.11
6/8 Classic-Craft Oak Sidelite
Daylight Opening:
7-1/32" x 40-1/32"
(256 sq.in.)
Daylight Opening:
7-1/32" x 64-7/8"
(456 sq.in.)
A
9-5/16”
B
4-3/8”
9-1/2”
42-5/16”
2-3/4”
14-5/8”
6-23/32”
79-1/4”
Full Lite
Sidelite
Flush-Glazed
(Sidelite -
SLCC0866)
12”
14”
Size A B
11-15/16”
13-15/16”
1-5/16”
2-5/16”
12”
14”
Size A B
11-15/16”
13-15/16”
1-5/16”
2-5/16”
A
B 4-1/8”
67-1/4”
79-1/4”
7-1/32”
64-7/8”
7-7/8”
A
B
34-5/16”
7-1/32”
4-1/8”
36-3/4”
6-3/8”
24-1/8”
7-7/8”
79-1/4”
12”
14”
Size A B
11-15/16”
13-15/16”
1-5/16”
2-5/16”
12”
14”
Size A B
11-15/16”
13-15/16”
1-5/16”
2-5/16”
9-5/16”
A
B
79-1/4”
5-3/4”
3”
7-9/32”
46-7/32”
7-1/32”
43-27/32”
17”
7-1/32”
40-1/32”
Half Lite
Sidelite
1 Panel
Flush-Glazed
(Sidelite -
SLCC0835)
2/3 Lite (45”)
Sidelite
1 Panel
Flush-Glazed
(Sidelite -
SLCC0845) 2 Panel
Round Top
Sidelite
Flush-Glazed
(Sidelite -
SLCC0841)
9-5/16”
9-5/16”
Daylight Opening:
7-1/32" x 46-27/32"
(309 sq.in.)
Daylight Opening:
7-1/32" x 34-5/16"
(241 sq.in.)
