Thermal Transfer Systems MF Series - Manual (Page 4)

MF
www.thermaltransfer.com [email protected] 262.554.8330
43
A
IR C
O
O
L
E
D
MF

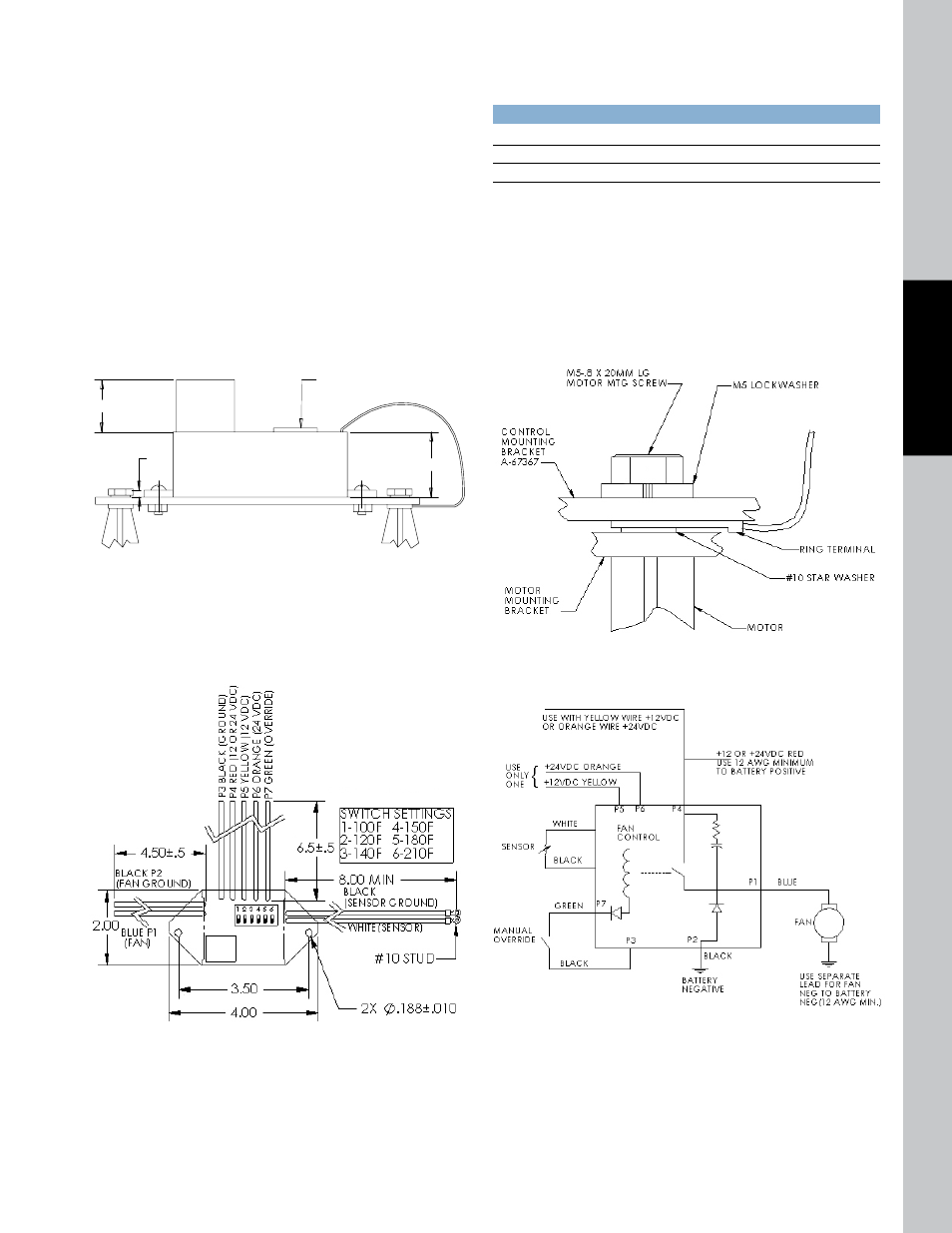

Thermostatic Temperature Control Option (DC)
This controller was designed to mount on the cooler without requiring
extensive wiring or plumbing. It provides accurate temperature control
by cycling the cooling fan(s) to maintain desired oil temperature.
n
12 or 24 volt operation
n
Adjustable temperature settings range from 100°F thru 210°F in
20°F increments
n
For use with one or two fan models
n
Temperature sensor provided
n
Wiring provided for remote manual override
n
Mounting hardware included
Part Number Description
96171 Electronic Fan Control Kit
68790 Replacement Control Only
67699 Replacement Sensor Only
Side View
Electrical Schematic
.90 ±.2
TEMPERATURE
SELECT SWITCH
1.12
.12
NOTE: This switch should be fused to prevent damage if ground is lost. A 30 amp fuse is required in the power supply.
Top View
Connection Assembly
