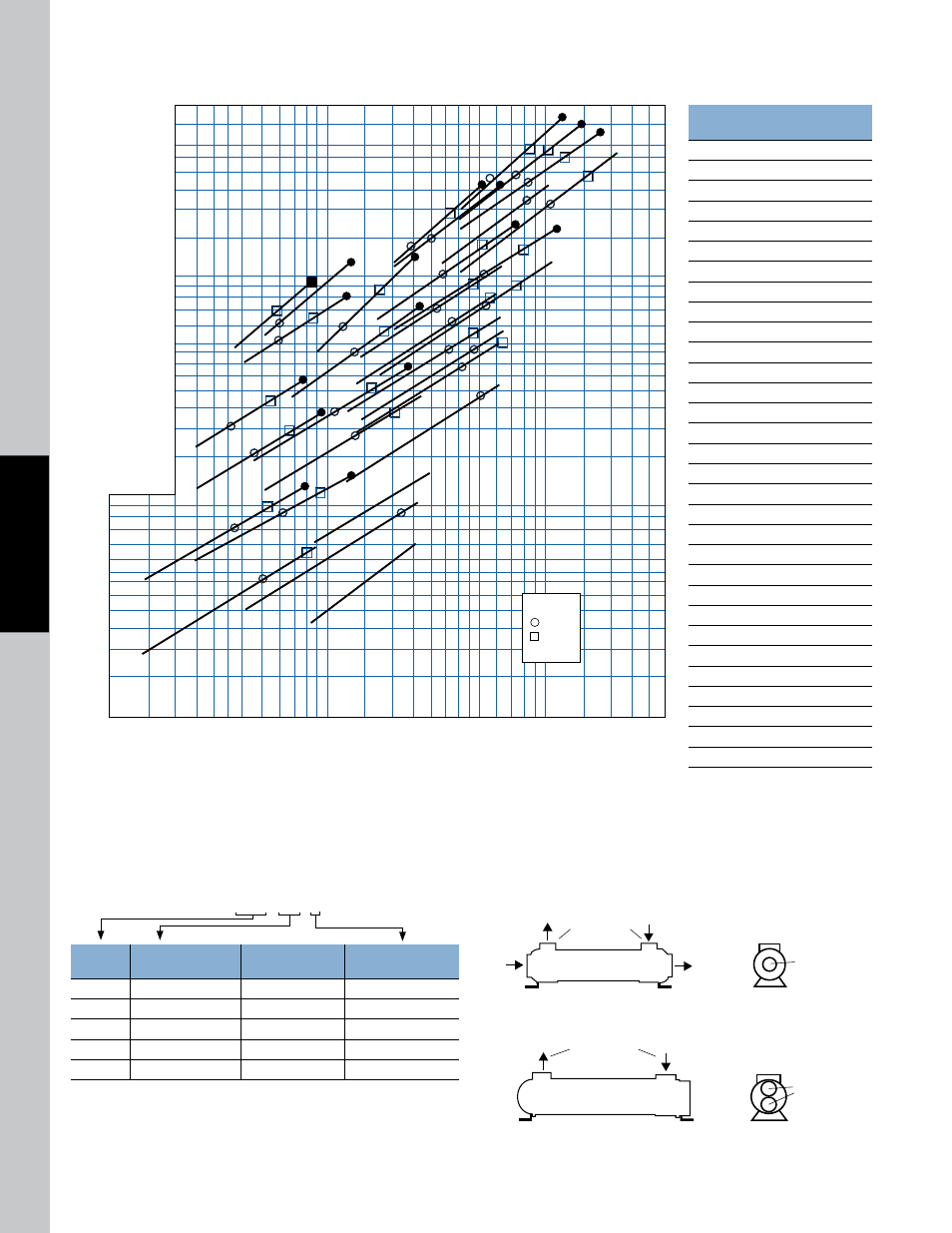

Performance Curves
Ship Wt.
Model
(lbs)
*1. B-401-A4-0
7
*2. B-402-A4-0
10
*3. B-701-A4-T
23
4. B-701-B6-F
23
5. B-701-C6-T
23
*6. B-702-A4-T
28
7. B-702-B4-F
28
8. B-702-C6-T
28
*9. B-703-A4-T
35
10. B-703-B4-F
35
11. B-1002-C4-T
49
12. B-1002-C6-T
49
13. B-1003-B4-F
65
14. B-1003-C4-T
65
15. B-1003-C6-T
65
16. B-1004-C4-T
72
17. B-1004-C6-T
72
*18. B-1202-A4-F
72
19. B-1202-C4-F
72
*20. B-1204-A4-F
110
21. B-1204-C4-F
110
22. B-1206-D4-F
160
*23. B-1602-A4-F
145
24. B-1602-C4-F
145
25. B-1604-B4-F
195
26. B-1604-D4-F
195
27. B-1606-C4-F
259
28. B-1606-D4-F
259
29. B-1608-C4-F
310
30. B-1608-D4-F
310
31. B-1610-D4-F
400
Shipping Weights are approximate
1
2
20
18
25
21
27
29
22
24
19
17
10
14
16
9
6
7
8
11
15
12
26
28
30
31
23
13
3
4
5
600
500
400
300
200
100
80
60
50
40
30
20
10
8
6
5
4
3
2
1
1
2
3
4 5 6
8 10
20
30
40 50 60
80 100
150 200
GPM Oil Through Cooler
Horsepower Removed in Cooler
OIL
P
= 5 PSI
= 10 PSI
●
= 20 PSI
Example Model No.
B - 1003 - C4 - F
Unit
Shell Side (GPM)
Baff le Spacing
Tube Side (GPM)
Size
A
B
C
D
O
T
F
400
9.6
—
—
—
25
—
—
700
17
29
29
—
61
31
15
1000
24
48
69
69
146
73
37
1200
29
57
115
115
224 112 56
1600
37
74
149
253
363 181 91
Caution: Incorrect installation can cause this product to fail prematurely, causing the
shell side and tube side fluids to intermix.
Maximum Flow Rates
Specific applications may have different piping arrangements.
Contact factory for assistance.
OUT
OUT
COOLING
WATER
IN
IN
HOT FLUID
One Pass
Two and Four Pass
HOT FLUID
(MAY BE REVERSED)
COOLING
WATER
Piping Hook-up
OUT
OUT
COOLING
WATER
IN
IN
HOT FLUID
One Pass
Two and Four Pass
HOT FLUID
(MAY BE REVERSED)
COOLING
WATER
