TerraWave's polycarbonate enclosures
have been evaluated for compliance
with the Reduction of Hazardous
Substances (RoHS) Directive 2002/95
and have been determined to not
contain substances in excess of RoHS
Maximum Concentration Levels.

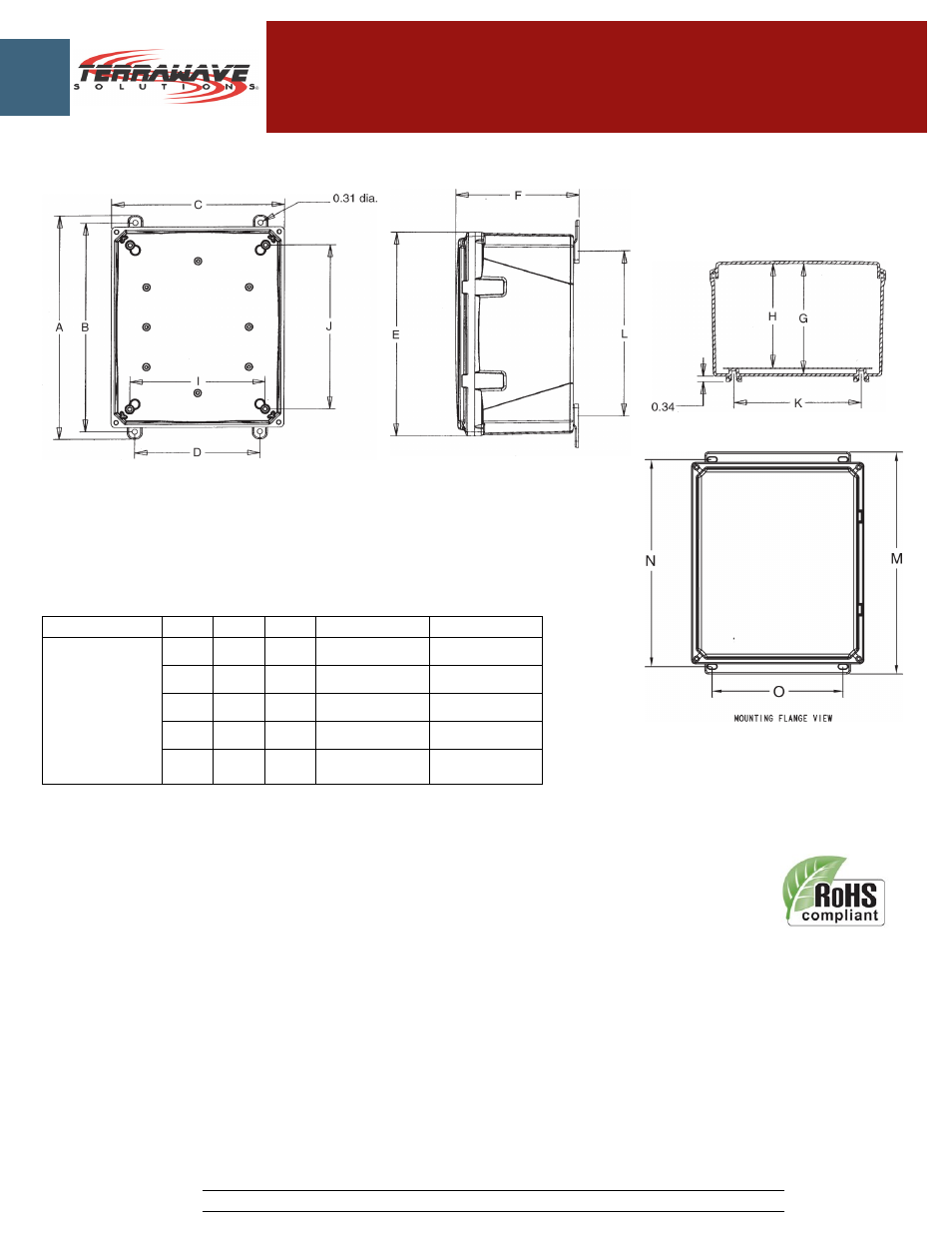

Enclosure Dimensions
Version 1.0
www.terra-wave.com Email: [email protected] Phone: 210-375-8482 or 800-851-4965
14x12x6 Heated Polycarbonate Enclosure with
Installed 3-Pack Outdoor MIMO Omni Antenna
Enclosure Size A B C D E
14" x 12" x 6"
15.75" 14.75" 13.50" 10.00" 14.58"
F G H I x J K
7.30" 6.75" 6.25" 10.25" x 12.25" 10.00"
L M N O Panel Size
11.25" 16.95" 16.01" 9.88" 12.75" x 10.88"
A: Overall Length with Mounting Feet
B: Mounting Feet Hole Spacing/Length
C: Overall Width
D: Mounting Feet Hole Spacing/Width
E: Overall Enclosure Length
F: Overall Enclosure Height
G: Internal Height
H: Internal Height Above Backplate
I: Internal Panel Mounting Boss Width
J: Internal Panel Mounting Boss Length
K: Mounting Feet Attachment Boss Width
L: Mounting Feet Attachment Boss Length
M: Overall Length with Mounting Flange
N: Mounting Flange Hole Spacing/Length
O: Mounting Flange Hole Spacing/Width
