802.11n MIMO 20”x 20” x 8” Hard Cap Ceiling Enclosure

Version 1.1

www.terrawave.com Email: [email protected] Phone: 210-375-8482 or 800-851-4965 10521 Gulfdale, San Antonio, TX 78216

TESSCO Part Number: 373032

TerraWave Part Number: TW-HC-MIMO

TerraWave 802.11n MIMO 20”x 20”x 8”

Hard Cap Ceiling Enclosure with Turn Lock

List: $227.20

TESSCO Part Number: 363134

TerraWave Part Number: TW-HC-MIMO-L

TerraWave 802.11n MIMO 20”x 20”x 8”

Hard Cap Ceiling Enclosure with Key Lock

List: $239.70

Hard Cap Ceiling Enclosure Kit Components

TerraWave's 20” x 20” x 8” 802.11n multiple-input, multiple-output (MIMO) hard cap ceiling enclosure contains and protects an
802.11n MIMO access point (AP) in an aesthetically pleasing and stealthy solution within a hard cap ceiling, such as metal,
sheet rock, stucco or wood. Once installed, the enclosure is conveniently secured and flush with the hard cap ceiling.

This enclosure is specifically designed to support any TerraWave or Cisco 802.11n MIMO omnidirectional antenna. The
enclosure may also be deployed with any TerraWave or Cisco 2.4 GHz and 5 GHz single band or 2.4/5 GHz dual band rubber
duck antennas (quantity three for 2.4 GHz and quantity three for 5 GHz)*. For detailed product information and to purchase
product, please contact a wireless networking solutions sales engineer at 210-375-8482, 800-851-4965,

[email protected]

or visit

www.terrawave.com

.


*Purchasing additional jumpers is required (TESSCO SKU: 310402; TerraWave Part Number: 100-02RA-03-P18L).

TerraWave is the primary manufacturer in the industry to offer such cutting-edge products for wireless networking deployments

.

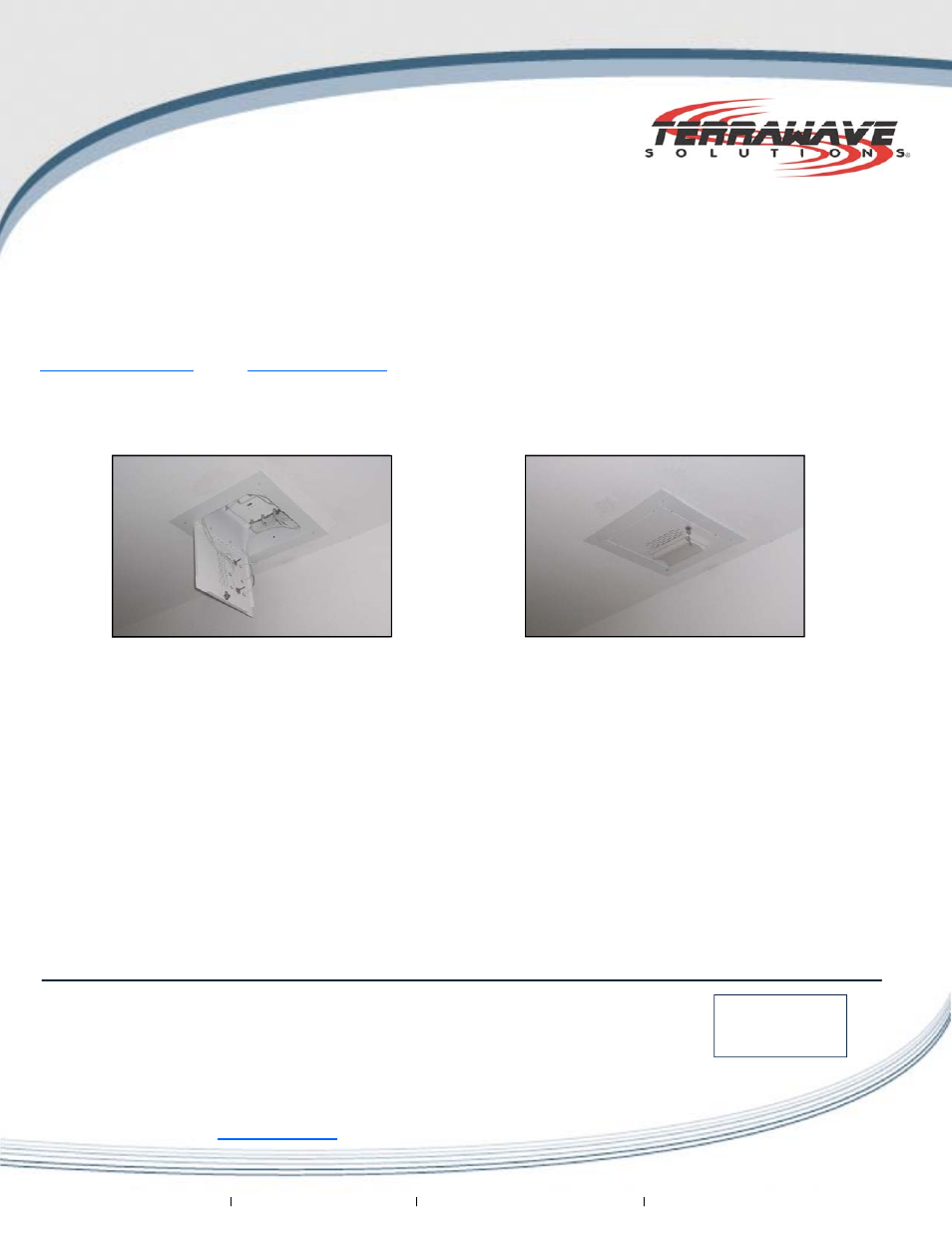

TerraWave 20x20x8 MIMO Ceiling Tile Enclosure

Installed in Ceiling with Door Locked

Displayed with a TerraWave 2.4/5 GHz 2.5/4.5 dBi MIMO

Omnidirectional Antenna with RPTNC Connectors

TerraWave 20x20x8 MIMO Ceiling Tile Enclosure

Installed in Ceiling with Door Open

Displayed with a Cisco 1252 Access Point and a

TerraWave 2.4/5 GHz 2.5/4.5 dBi MIMO Omnidirectional

Antenna with RPTNC Connectors

Features and Benefits:
>> Protects RF and networking equipment from theft and tampering.
>> Clean, seamless design.
>> Constructed from 19-gauge steel.
>> Available with a durable key lock for additional security benefits
>> Each enclosure door includes laser perforated punch-out holes to support

the TerraWave or Cisco’s 802.11n MIMO omni antennas.

>> Once the enclosure and AP are installed, the AP is protected and hidden

from view, in a solution that is flush with the hard cap ceiling.

>> The large perimeter opening facilitates component installation,

maintenance or conversion.

>> Excellent value.

Superior quality at exceptional pricing.

(1) Hard Cap Ceiling Enclosure
(1) Universal Interior Mounting Plate
(4) 3/8” Toggle Bolts
(1) Bag of Enclosure and Wireless Product

Installation

Hardware

(1) Standard Door Turn Lock
(Model:

TW-HC-MIMO)

(1) Durable Key Lock
(Model:

TW-HC-MIMO-L)

For detailed product information and to purchase product, please contact a TerraWave
wireless networking solutions sales engineer at 210-375-8482, 800-851-4965,
[email protected] or visit

www.terrawave.com

.

See reverse side for list

of antennas the MIMO

ceiling tile enclosure

supports.
