Customer will be required to install Conduit for Ethernet. Conduit should be suitable for
environment used and wet applications.
Customer Supplied Items
Customers are required to provide their own mounting hardware. TerraWave recommends
3/8 inch fasteners, washers, lock washers and nuts. See figure 2.
Installing WLAN / Networking Components
The TWSD16128PHC will accommodate WLAN / Networking products to be installed inside
the unit. This equipment should be installed on the mounting plate in the unit.
Wire / Cable Routing
The TWSD16128PHC comes with cable routing tie downs. These tie downs are used to
provide convenient cable routing. It is important to use these cable tie downs to ensure that
the cables that you install are kept away from the other components within the enclosure.

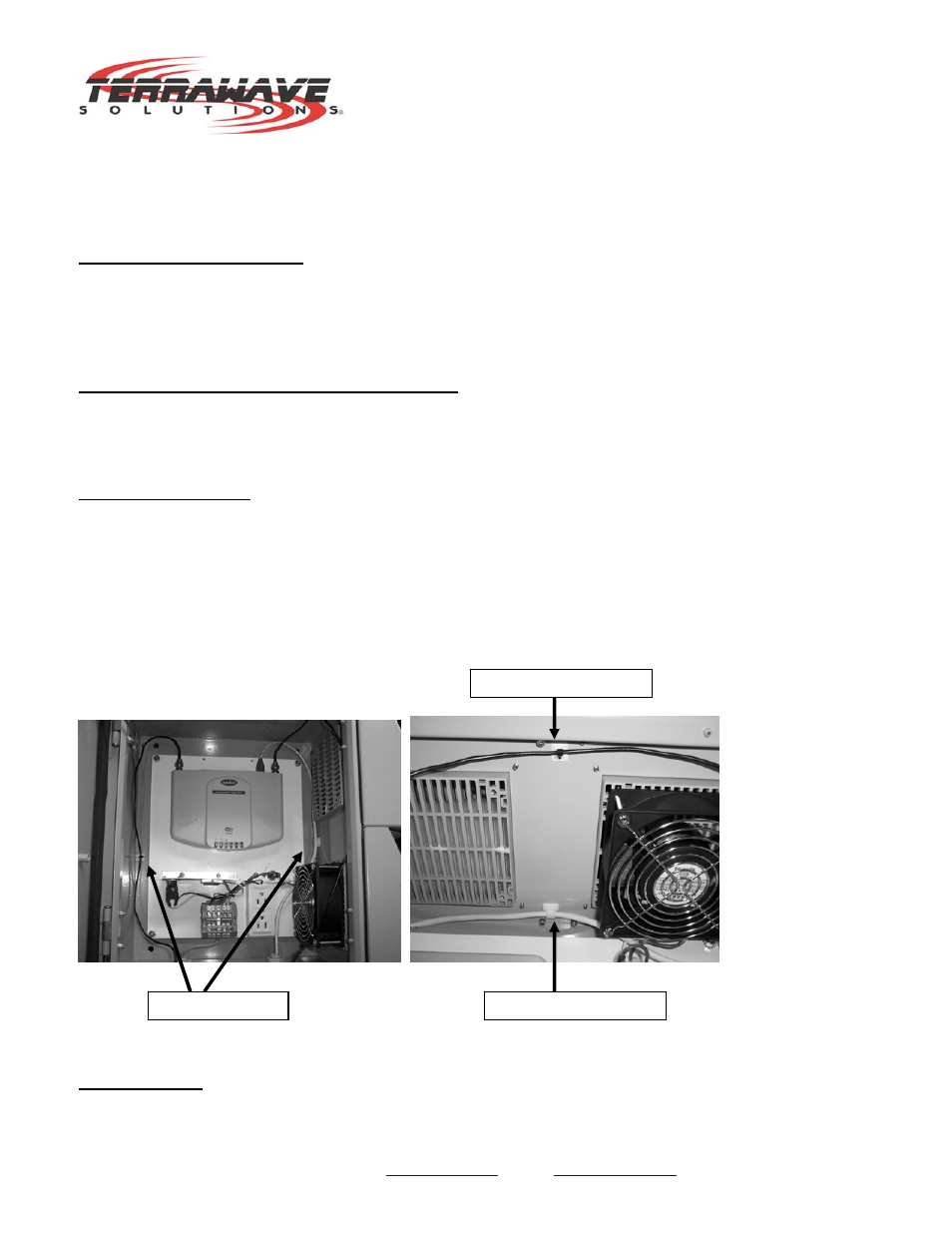

Refer to figure 3 below to illustrate the use of these tie downs.
(Figure 3)
Ethernet Cable
Cable tie Downs Ethernet Cable tie down
Coaxial Cable tie down
