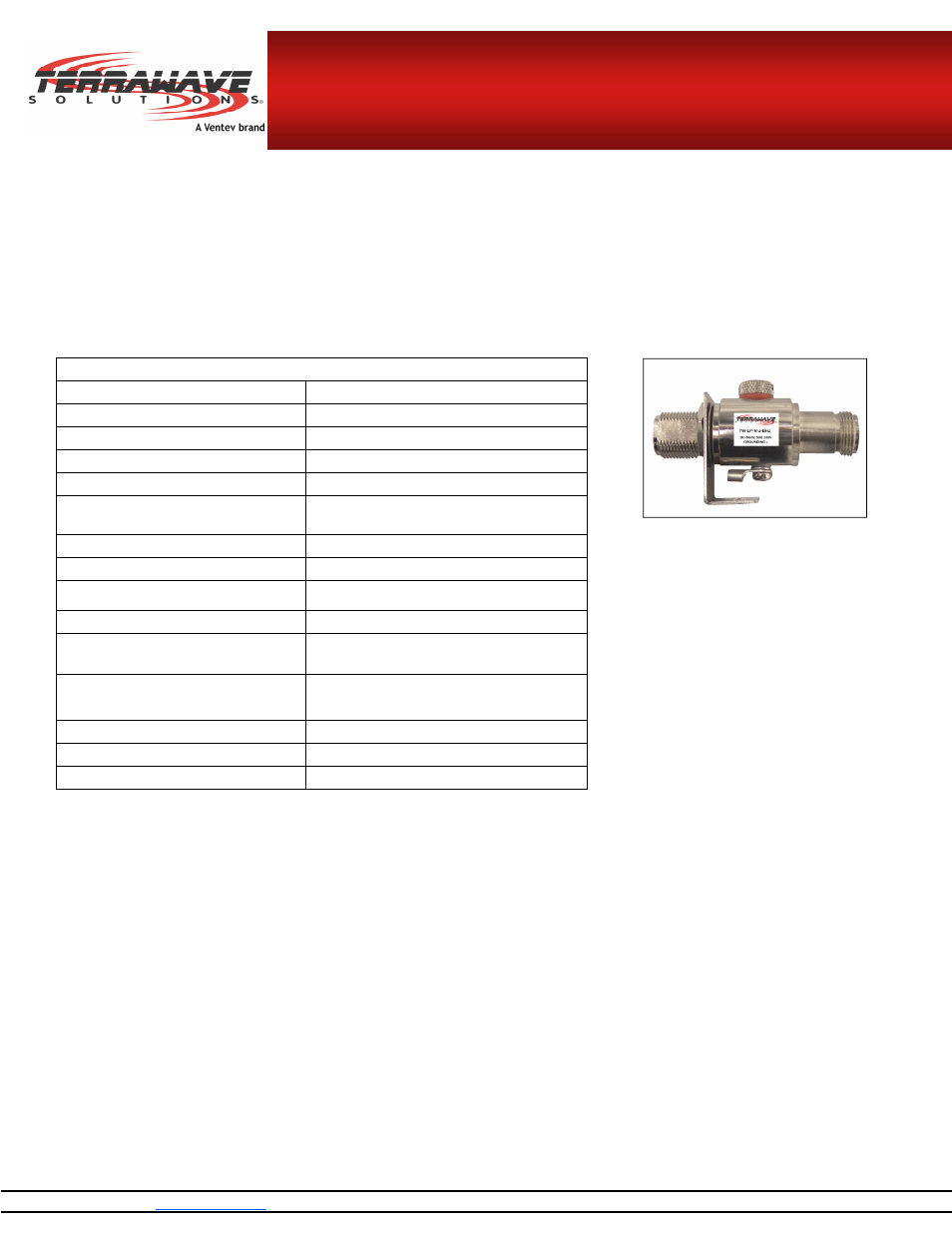

TerraWave TW-LP-N-P-BHJ - Manual

Lightning Arrestor
N-Style Plug to N-Style Bulkhead Jack 0-6 GHZ
www.terra-wave.com [email protected] 1-800-851-4965
TerraWave's lightning arrestor is a bi-directional gas discharge tube suppressor that features wide-band
operation up to 6 GHz and is rated at IP67. Simply attach the lightning protector to an access point to help
protect an entire network, outdoor antennas and other wireless equipment from the build-up of static
electricity. It is recommended to use 18 American Wire Gauge (AWG) ground wire. Every TerraWave lightning
arrestor is covered by the company’s one-year warranty program. For questions or to purchase product, contact
your Regional Sales Executive at 210-375-8482, 800-851-4965 or sales @terra-wave.com.
Specifications
Model TW-LP-N-P-BHJ
Frequency Range DC 0-6 GHz
Insertion Loss ≤0.7 dB
VSWR DC~6 GHz <1.4
Impedance 50 Ω
Connector N-Style Plug To N-Style Bulkhead Jack
Operating Temperature Range -40°F to 185°F
Dimensions (L x W x H) 0.8" x 2.6" x 1.3"
Insulation Resistance ≥2000 MΩ
DC Discharge Voltage 90 V
Initial Impulse Wave Discharge 450-500 V (1KV/μs)
Rated Impulse Wave Discharge
20 KA (Wave 8/20 μs) 10 Times
(5 Times Each Polarity)
Weight 0.26 lbs
Ground Connection By Feedthrough or Screw Terminal
Recommended AWG 18 AWG ground wire
