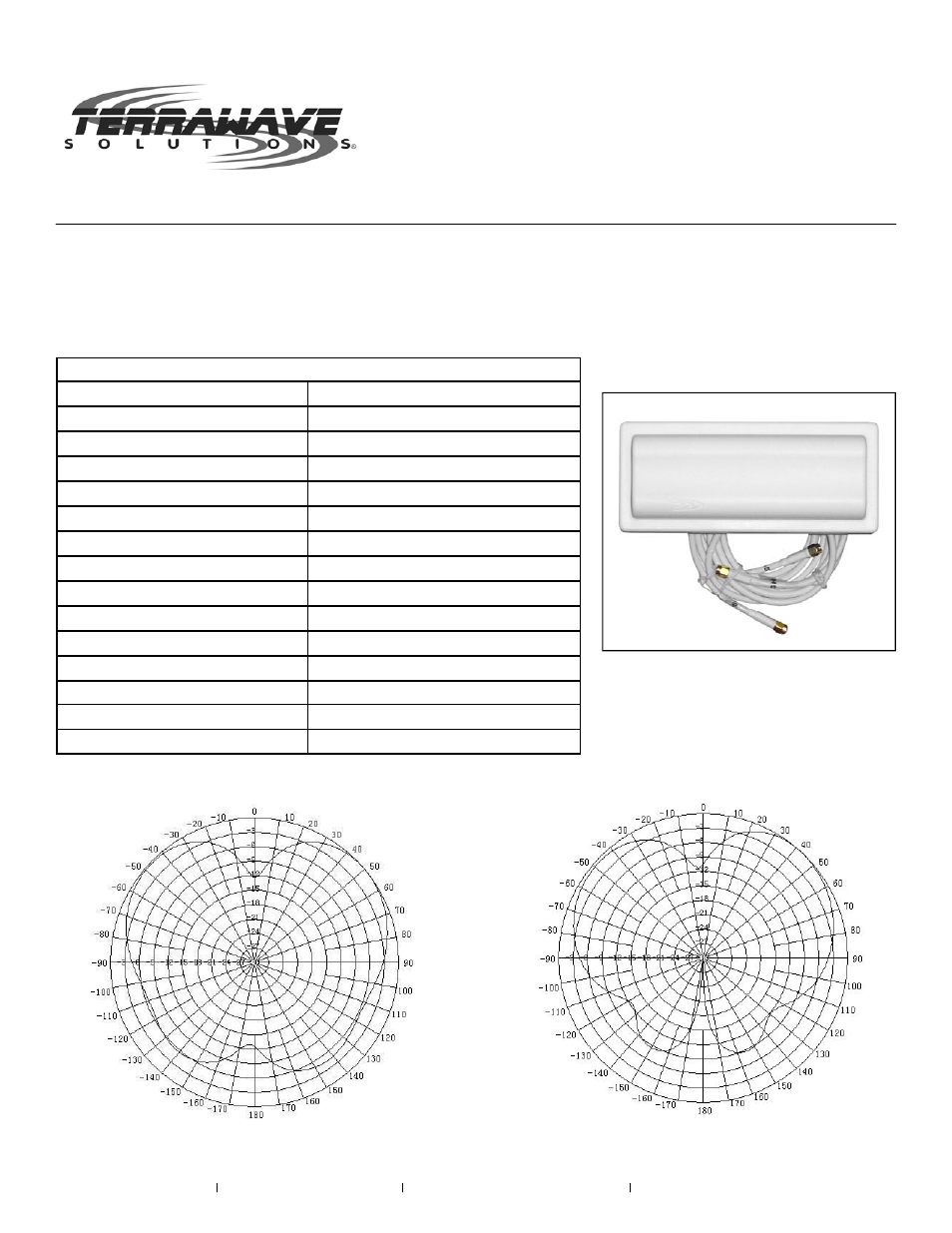

TerraWave M6025040MO1D33620 - Manual

TerraWave Solutions
®
802.11n 2.4/5 GHz 2.5/4 dBi Dual-band
Ceiling Mount MIMO Omnidirectional Antenna RPSMA Connectors
TerraWave’s 2.4/5 GHz ceiling mount multiple-input and multiple-output (MIMO) omnidirectional antenna is
designed to operate with many manufacturers’ enterprise-class 802.11n MIMO access points (APs). The antenna
features three integrated 2.4 and 5 GHz dual-band omni antennas in one enclosure, making it an ideal and aesthetically
pleasing antenna to support demanding applications in next generation IEEE 802.11n indoor wireless communication
systems. Every TerraWave antennas is covered by the Company’s two-year TerraNet warranty program. Visit
www.terrawave.com for additional information.
Specifications
Model M6025040MO1D33620
Frequency Range 2400 ~ 2483 / 5150 ~ 5850 MHz
Bandwidth 83 / 700 MHz
Gain 2.5 / 4 dBi
Vertical Beamwidth 55° / 60°
Horizontal Beamwidth 360°
VSWR ≤ 1.8 / ≤ 2.5
Nominal Impedance 50 Ohms
Polarization Vertical
Max Power 50 Watts
Connector RPSMA Plug
Dimensions 6.9” x 3” x 1.1”
Weight 0.75 lbs
Operating Temperature Range -22°F to +158°F
Mounting Style Ceiling Mount
Vertical Radiation Pattern @ 2.4 GHz Vertical Radiation Pattern @ 5 GHz
