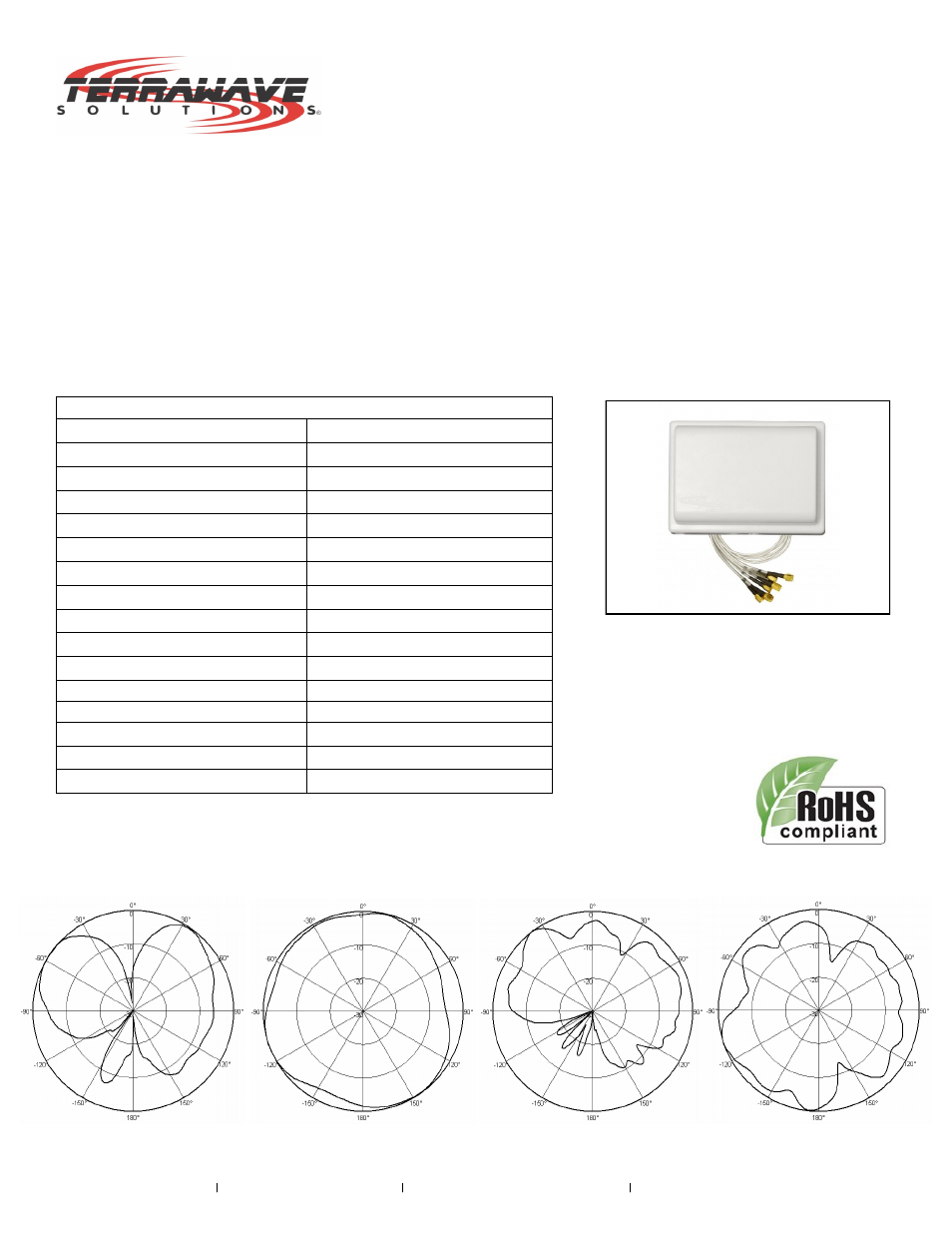

802.11n 2.4/5 GHz 2.5/4 dBi Dual Band Mini MIMO
Ceiling Mount Omnidirectional Antenna with RPSMA Plug Connectors
TerraWave’s new 2.4/5 GHz ceiling mount multiple-input and multiple-output (MIMO) omnidirectional antenna
is designed to be operated with any manufacturer’s enterprise-class 802.11n MIMO access points (APs). The
antenna features six integrated 2.4 and 5 GHz dual-band omni antennas in one enclosure, making it an ideal
and aesthetically pleasing antenna to support demanding applications in next generation IEEE 802.11n
indoor wireless communication systems. This antenna is also RoHS compliant. All TerraWave antennas are
covered by the Company’s two-year TerraNet warranty program. For questions and to purchase product,
contact a Regional Sales Executive at 210-375-8482, 800-851-4965 or [email protected]. Visit
www.terrawave.com for additional information.
Specifications
Model
M6025040MO1D2420M
Frequency Range
2400~2500 / 5150~5850 MHz
Bandwidth
83 / 700 MHz
Gain
2.5 dBi / 4 dBi
Vertical Beamwidth
55° / 60°
Horizontal Beamwidth
360°
VSWR
≤2.0 / ≤2.5
Nominal Impedance
50 Ohms
Polarization
Vertical
Max Power
50W
Connector
RPSMA Plug
Cable Length
24”
Dimensions
7.1” x 5.1”x1.9”
Weight
.68 lbs
Operating Temperature Range
-40°F to +158°F
Mounting Style
Ceiling Mount
E-Plane Pattern H-Plane Pattern
2.4 GHz
E-Plane Pattern H-Plane Pattern
5 GHz
