TerraWave M6025040MO1D3620 User Manual
Page 2
TerraWave Solutions
®
802.11n 2.4/5 GHz 2.5/4 dBi Dual-band
Ceiling Mount MIMO Omnidirectional Antenna RPSMA Connectors
Mounting Bracket Information for
M6025040MO1D3620
Two Mounting Options Are Included with Each Antenna

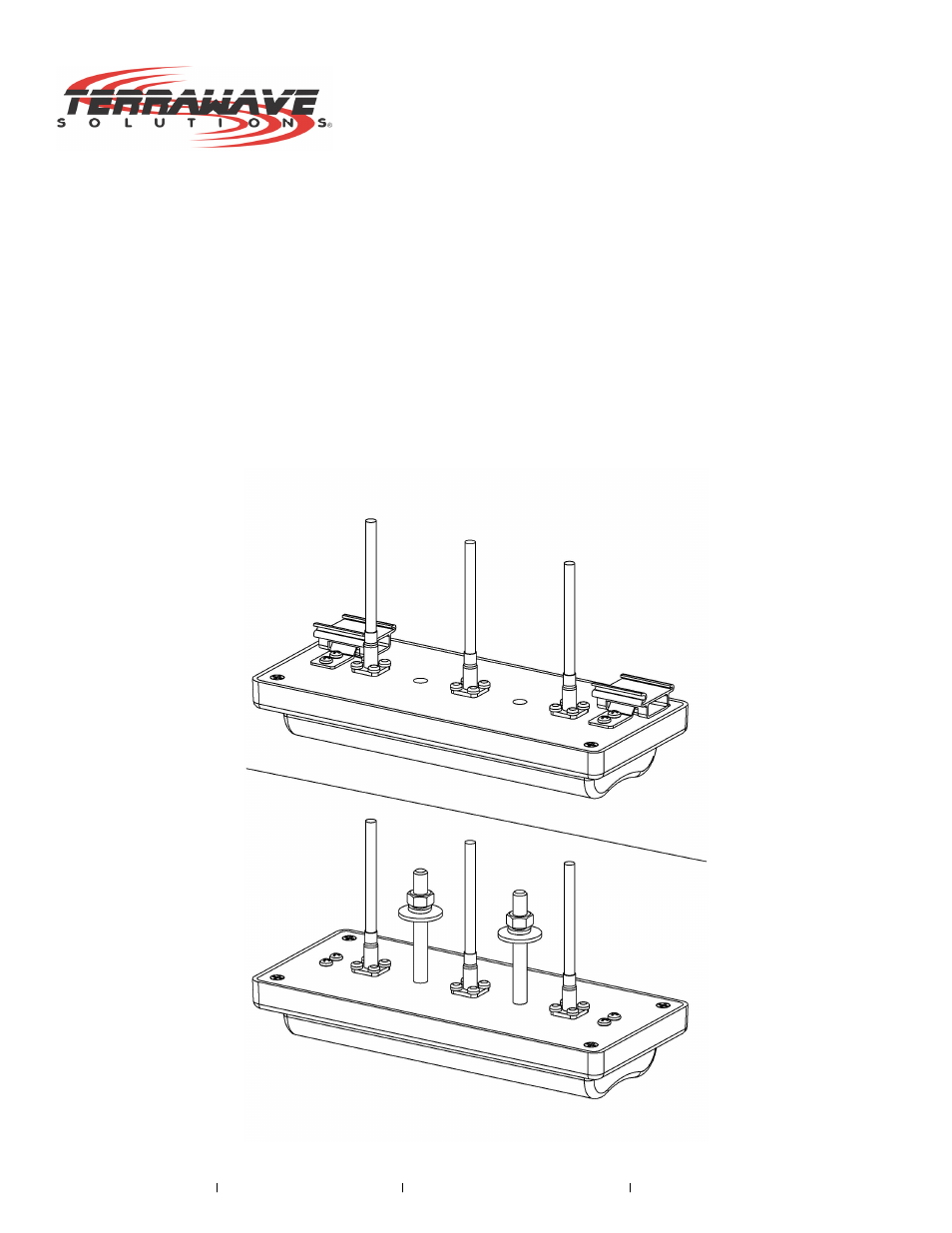

1. Ceiling Tile Grid Clips: The antenna may be mounted to the ceiling tile grid with clips.
2. Screw Mount: The antenna may be installed to a flat ceiling without grid by pre-cutting holes into the
ceiling and inserting the antenna’s pigtails into the holes. The antenna is then secured with screw on
mounts. (Ceiling tile clips should be removed before installation so the antenna is flush with the flat
ceiling surface.)
