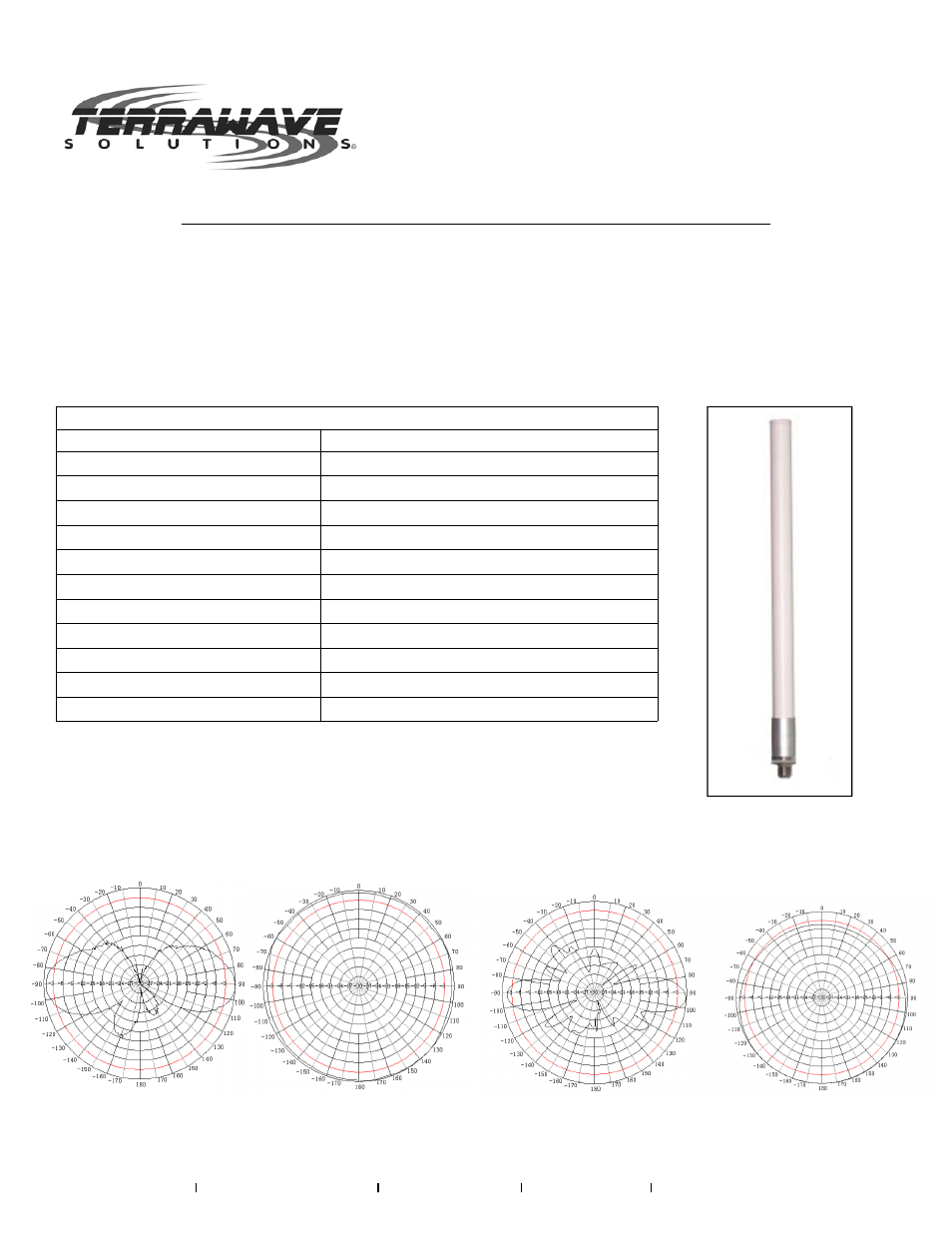

TerraWave M7050050O10007 - Manual

TerraWave Solutions
®
2.4/5 GHz 5/4.5/5 dBi Dual Band Outdoor
Omnidirectional Antenna with N-Style Plug Connector
TerraWave’s 2.4/5 GHz dual-band fiberglass omnidirectional antenna offers extended wireless coverage for
outdoor applications working in the 2.4/5 GHz frequencies and the 802.11 a/b/g wireless networks. This
antenna features dual-band functionality to support both 2.4 GHz and 5 GHz, making it an ideal antenna to
support demanding outdoor applications. It comes with a rugged, durable exterior and is mounted by direct
connection (no mounting equipment included). Every TerraWave antenna is covered by the Company’s two-
year TerraNet warranty program. For questions and to purchase product, contact a wireless networking
regional sales executive at 210-375-8482, 800-851-4965 or sales @terrawave.com. Visit
www.terrawave.com for additional information.
Specifications
Model M7050050O10007
Frequency Range 2400~2483 / 4940~5350 / 5350~5925 MHz
Gain 5 / 4.5 / 5 dBi
Vertical Beamwidth 30° / 30° / 25°
Horizontal Beamwidth 360°
VSWR ≤ 2 / ≤ 2.5 / ≤ 2.5
Nominal Impedance 50 Ohms
Polarization Vertical
Max Power 20 Watts
Connector N-Style Plug
Dimensions 15.0” x 0.98”
Antenna Weight .62 lbs
E-Plane Pattern H-Plane Pattern
2.4 GHz
E-Plane Pattern H-Plane Pattern
5 GHz
