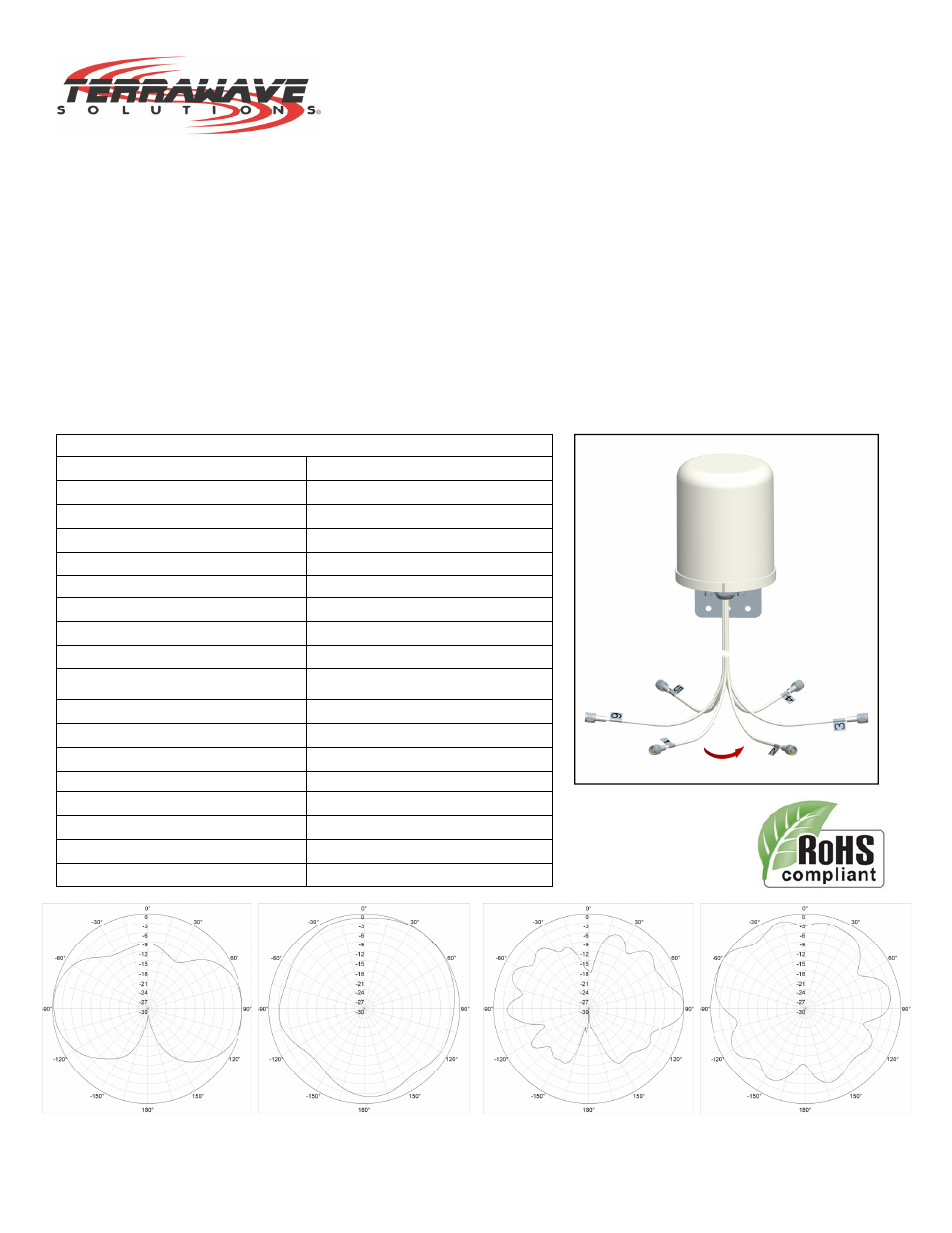

TerraWave Solutions
®
802.11n 2.4/5 GHz 6 dBi Outdoor
MIMO Omnidirectional Antenna with RPTNC Plug Connectors, 6-Pack Dual Band Leads
TerraWave’s 6 dBi outdoor multiple-input and multiple-output (MIMO) omnidirectional antenna is designed to
operate enterprise class 802.11n MIMO access points. With dual-band leads, each cable supports both 2.4
and 5 GHz, making it an ideal and aesthetically pleasing antenna to support demanding outdoor applications
in next generation IEEE 802.11n wireless communication systems. The rugged enclosure makes this antenna
perfectly suited for use in a warehouse or manufacturing environment where it must withstand exposure to
moisture and dust. Includes an L-Bracket for mast and or wall mounting. Industrial beam clamps could be
purchased as an additional option but are not included, sold separately. This antenna is also RoHS compliant.
Every TerraWave antenna is covered by the Company’s two-year TerraNet warranty program. For questions
and to purchase product, contact a regional sales executive at 210-375-8482, 800-851-4965 or
[email protected]. Visit www.terrawave.com for additional information.
Specifications
Model M6060060MO1D3602O
Frequency Range 2400~2500 / 5150~5850 MHz
Bandwidth 100 / 700 MHz
Gain 6 dBi
Vertical Beamwidth 35°/25°
Horizontal Beamwidth 360°
VSWR Typical ≤ 1.5 - 2.0
Nominal Impedance 50 Ohms
Polarization Vertical
Isolation ≤-15dB
Max Power 10W
Lightning Protection Not DC Grounded
Connector RPTNC Plug with 36” Pigtail
Dimensions 5.9” x 7”
Weight 3.15 lbs
Mast Mount Diameter 1.37”-1.97”
Operating Temperature Range -40°F to +158°F
Wind Load 134 mph
E-Plane Pattern H-Plane Pattern
2.4 GHz
E-Plane Pattern H-Plane Pattern
5 GHz
