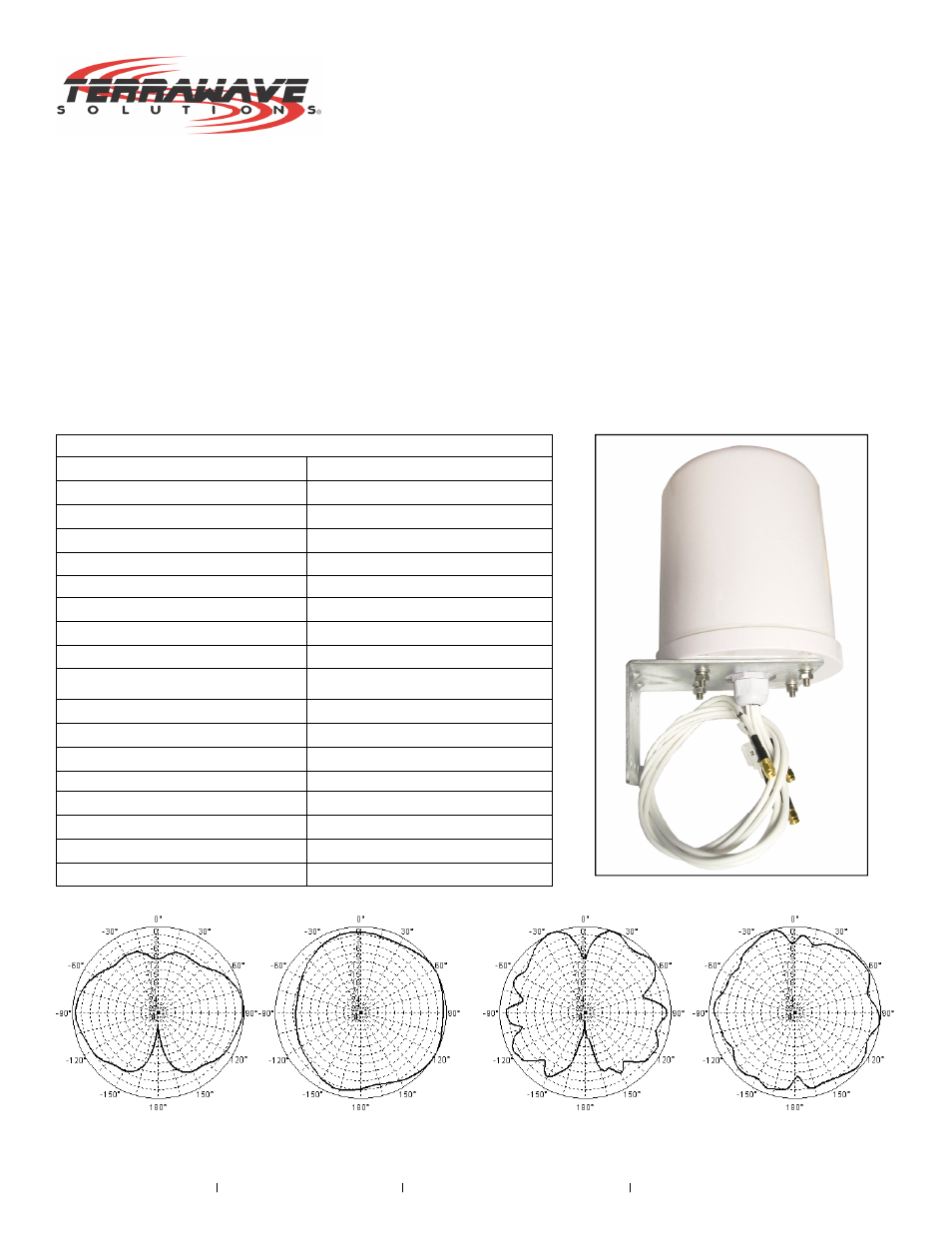

802.11n 2.4/5 GHz 6 dBi Outdoor
MIMO Omnidirectional Antenna with RPSMA Plug Connectors
TerraWave’s 6 dBi outdoor multiple-input and multiple-output (MIMO) omnidirectional antenna is designed to
operate enterprise class 802.11n MIMO access points. With dual-band leads, each of the four cables
support both 2.4 and 5 GHz, making it an ideal and aesthetically pleasing antenna to support demanding
outdoor applications in next generation IEEE 802.11n wireless communication systems. The rugged
enclosure makes this antenna perfectly suited for use in a warehouse or manufacturing environment where it
must withstand exposure to moisture and dust. Includes an L-Bracket for mast and or wall mounting.
Industrial beam clamps are available as an additional option. Every TerraWave antenna is covered by the
Company’s two-year TerraNet warranty program. For questions and to purchase product, contact a wireless
networking solutions sales engineer at 210-375-8482, 800-851-4965 or [email protected]. Visit
www.terrawave.com for additional information.
Specifications
Model
M6060060MO1D43620
Frequency Range
2400~2500 / 5150~5850 MHz
Bandwidth
100 / 700 MHz
Gain
6 dBi
Vertical Beamwidth
45°/20°
Horizontal Beamwidth
360°
VSWR
≤2.0 / ≤2.2
Nominal Impedance
50 Ohms
Polarization
Vertical
Isolation
≤-15dB
Max Power
10W
Lightning Protection
Not DC Grounded
Connector
RPSMA Plug with 36” Cable
Dimensions
5.9” x 7”
Weight
2.64 lbs
Mast Mount Diameter
1.37”-1.97”
Operating Temperature Range
-40°F to +158°F
Wind Load
134 mph
www.terrawave.com Email: [email protected] Phone: 210-375-8482 or 800-851-4965 10521 Gulfdale, San Antonio, TX 78216
E-Plane Pattern H-Plane Pattern
2.4 GHz
E-Plane Pattern H-Plane Pattern
5 GHz
