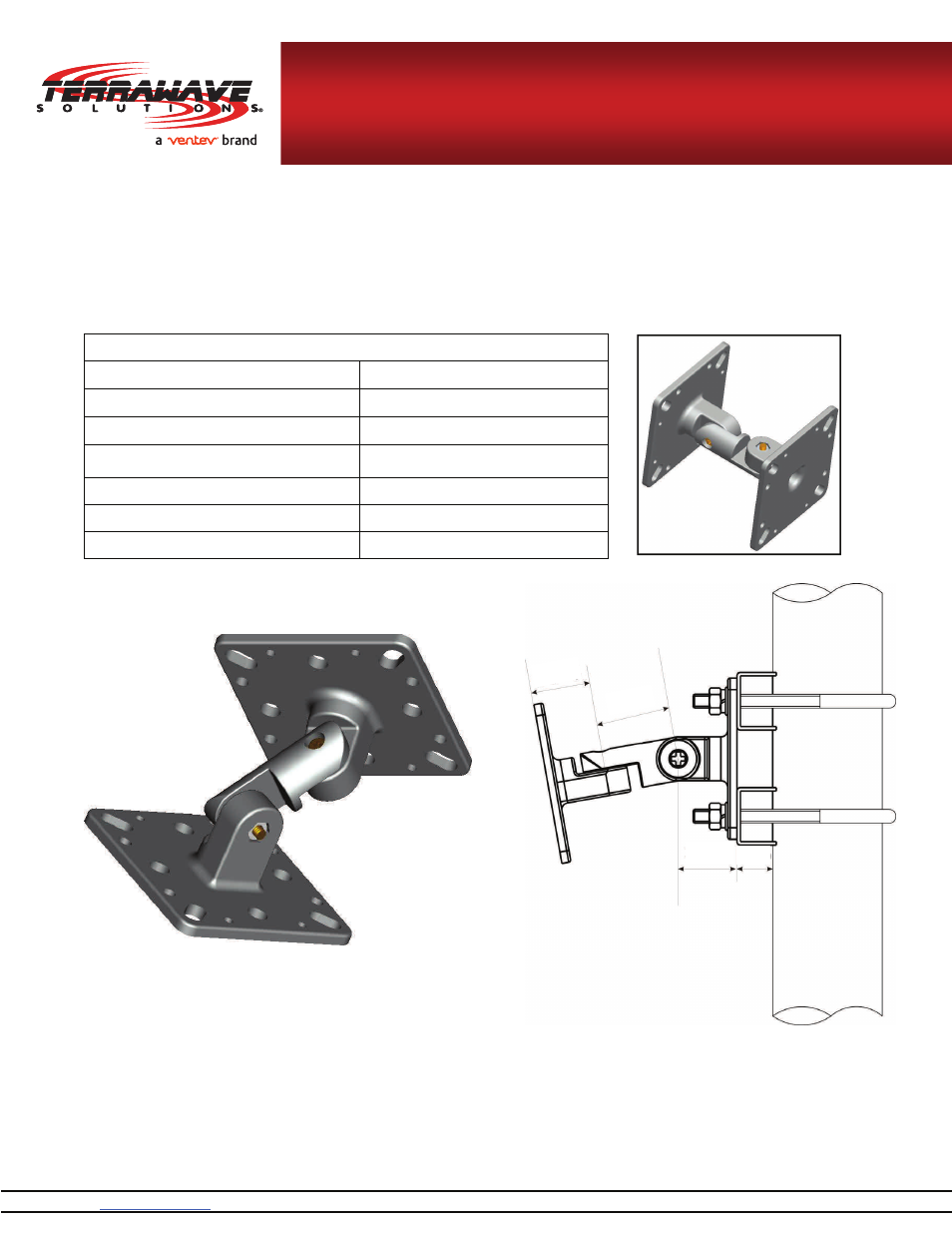

Universal Articulating Mount
TerraWave’s universal articulating mount offers an easy installation solution to mount wall or mast mounted anten-
nas and other WLAN accessories. The rugged mount is constructed of aluminum and a sleek-design. It accommo-
dates almost all types of low profile antennas for both indoor and outdoor applications regardless of polarization
types. All TerraWave antennas are covered by the company’s two-year TerraNet warranty program. For questions and to
purchase product, contact a Regional Sales Executive at 210-375-8482, 800-851-4965 or [email protected].
Specifications
Model
TW-ART-MOUNTT
Dimensions
2.75” x 2.75” x 3.15”
Weight
0.40 lbs
Material
Aluminum
Operating Temperature Range
-40°F to +158°F
Mounting Style
Wall Mount / Mast Mount
Mast Diameter
1.4” - 1.73”
1”
1.26”
1”
.35”
[email protected] 1-800-851-4965
Universal Articulating Mount
Installation Instructions:
1. Securely fasten one end of the Universal Articulating Mount to the mount surface (pole or wall).
2. Fully loosen both of the articulating mount arms. There should be no binding or resistance to the arms movement. Note: Do not
force movement of the arms if resistance or binding is felt. Forcing movement of the arms could result in breakage.
3. Position the arms in the desired locations.
4. Tighten the arms in sequence, starting with the arm closest to the mount surface.
5. Secure the Antenna to the Universal Articulating Mount once the arms are tightened in the desired positions. Note: Breakage of
the Universal Articulating Mount caused by failure to fully loosen the articulating mount arms voids the TerraNet Warranty.
