TerraWave TW-HD-MOUNT502 User Manual
Co-locating mount for access point and antenna, Specifications
1-800-851-4965
Co-Locating Mount
For Access Point and Antenna
TerraWave’s Co-Locating Mounting System for Access Point and Antenna is designed to simplify deployments and
conceal an access point and external cables. The mounting system features an innovative base that attaches to the
AP and mounts the external antenna directly to the AP, creating a co-located solution. This eliminates the need to
run cable along the ceiling and gives the installer a single mount to install. This new mount supports Cisco’s AP
1602e, 2602e, 2702e, 3602e and 3702e, and provides an articulating range of +/- 25, allowing installers to precisely
position the antenna for maximum coverage. The mount also includes clamps that secure and conceal cables. For
questions and to purchase product, contact a Regional Sales Executive at 210-375-8482, 1.800.851.4965 or
[email protected].
Specifications
Model
TW-HD-MOUNT502
Dimensions
9.53” x 9.98” x 4.57”
Weight
2 lbs
Material
Aluminum
Operating Temperature Range
-4° F to +131° F

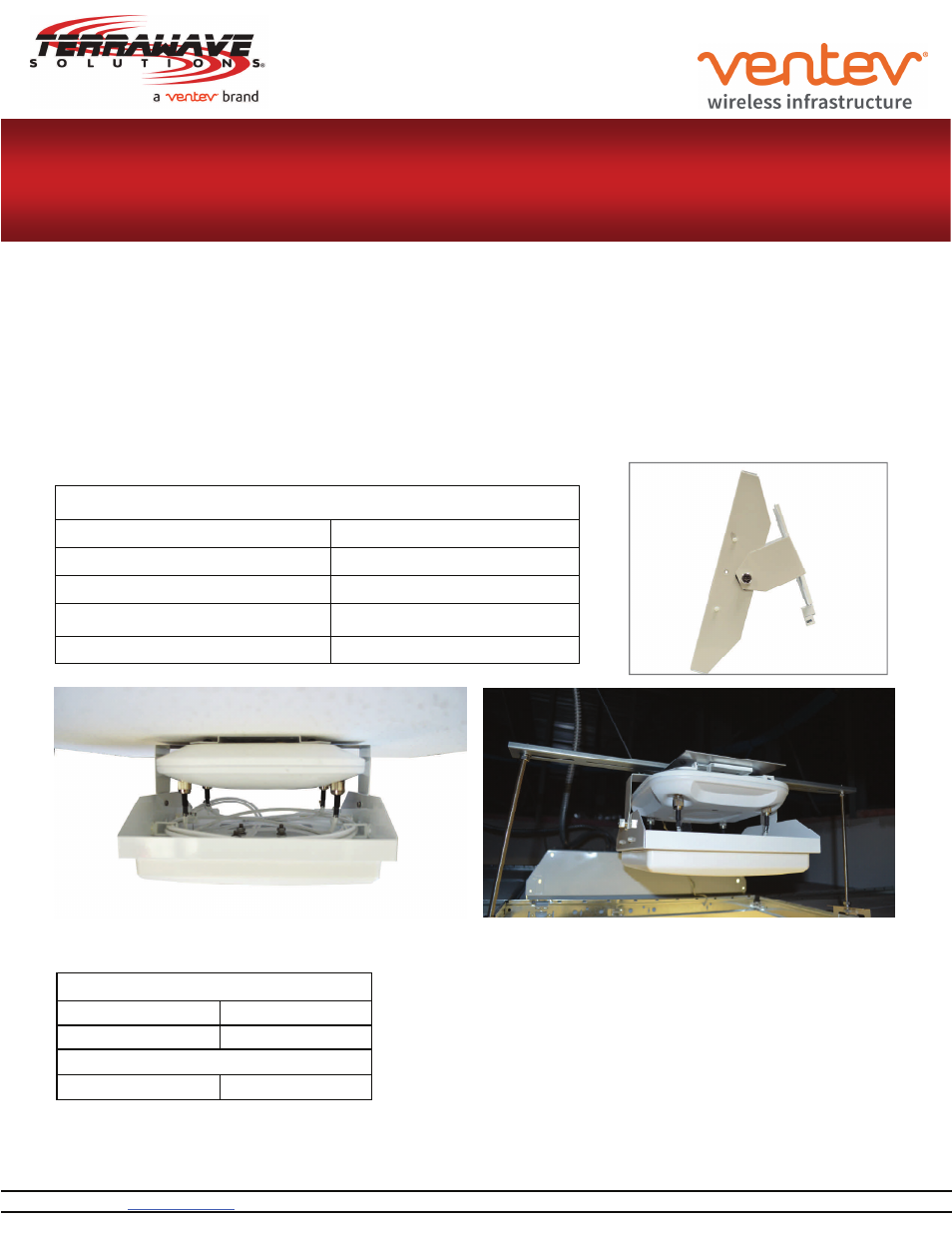

Mount Installed Above Ceiling Tile Grid With Cisco AP 3702e
and TerraWave Antenna (M6060060MP1D43602)
Mount Installed To Ceiling Tile With Cisco AP 3602e
and TerraWave Antenna (M6060060MP1D43602)
Compatible TerraWave Antennas
349502 515085
515086
Compatible Cisco Antennas
AIR-ANT2566P4W-R*
*For use with SKU 574960.
