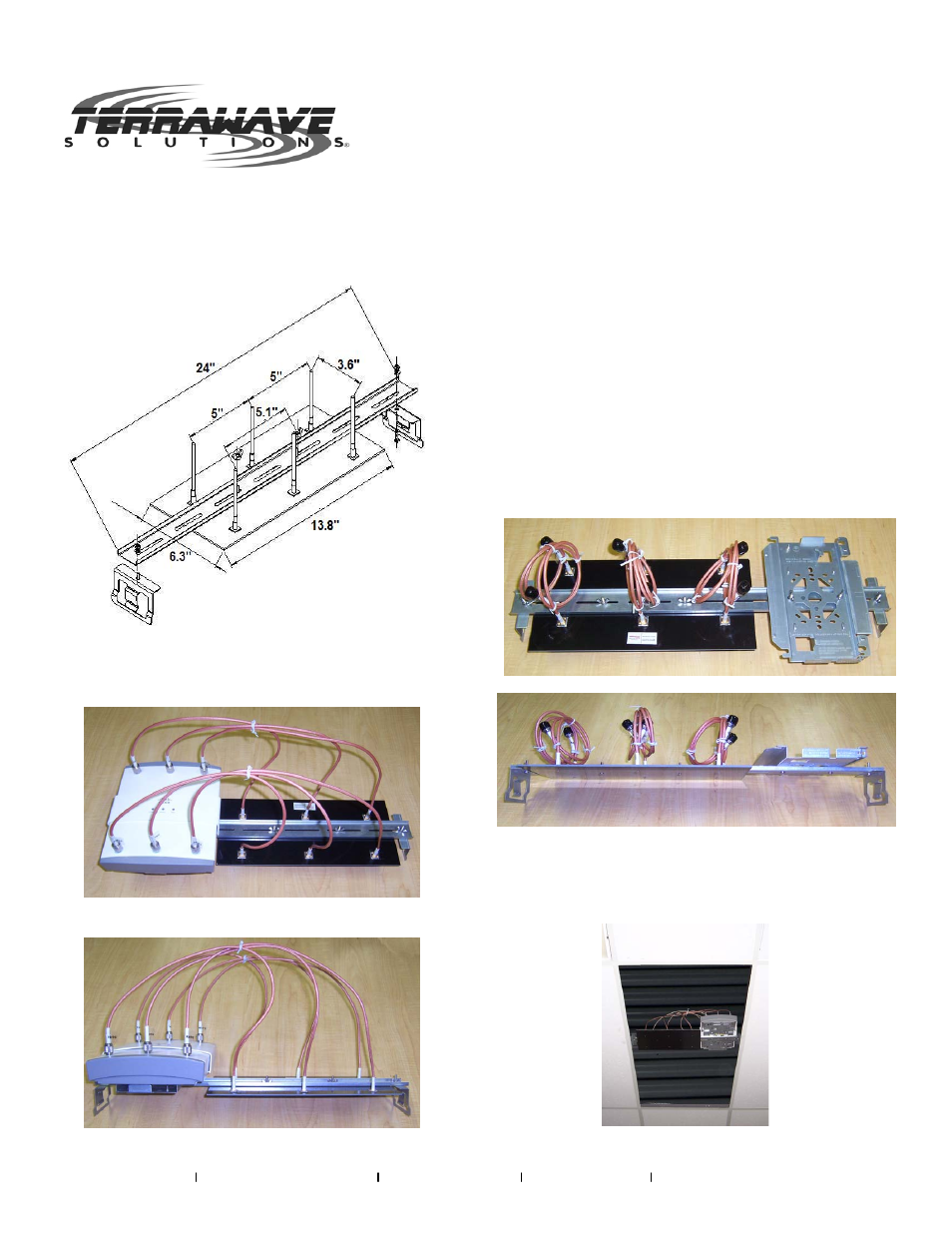

TerraWave Solutions

®

Above Ceiling Tile Mounting Bracket

Example Installation Instructions with TerraWave’s 802.11n 2.4/5 GHz 3 dBi Above Ceiling Mount

MIMO Omnidirectional Antenna and the Cisco 1252 Access Point

TerraWave’s Above Ceiling Tile Mounting Bracket is

can support and mount the above ceiling tile

antenna or, optionally, the above ceiling tile antenna

and the AP the antenna operates with.



Example Installation Instructions

Step 1
Install the above ceiling tile antenna and the AP mounting
bracket to the antenna bracket with the supplied wing nuts
and screws.

Example 1A—Top View

Example 1B—Side View

Step 2
Install the AP to the secured AP mounting bracket. Screw on
the antenna’s pigtails and connectors to the AP.

Example 2A—Top View

Example 2B—Side View

Step 3
Remove the ceiling tile and install the complete solution to the
ceiling tile grid using the antenna mount’s side clips. Once
installed, replace the ceiling tile.

Example 3—Complete Solution Installed Above the Ceiling

www.terrawave.com Email: [email protected] Phone: 210-375-8482 Fax: 210-375-8482 10521 Gulfdale, San Antonio, TX 78216
