TerraWave M6110135MP1D3620 User Manual
Page 2

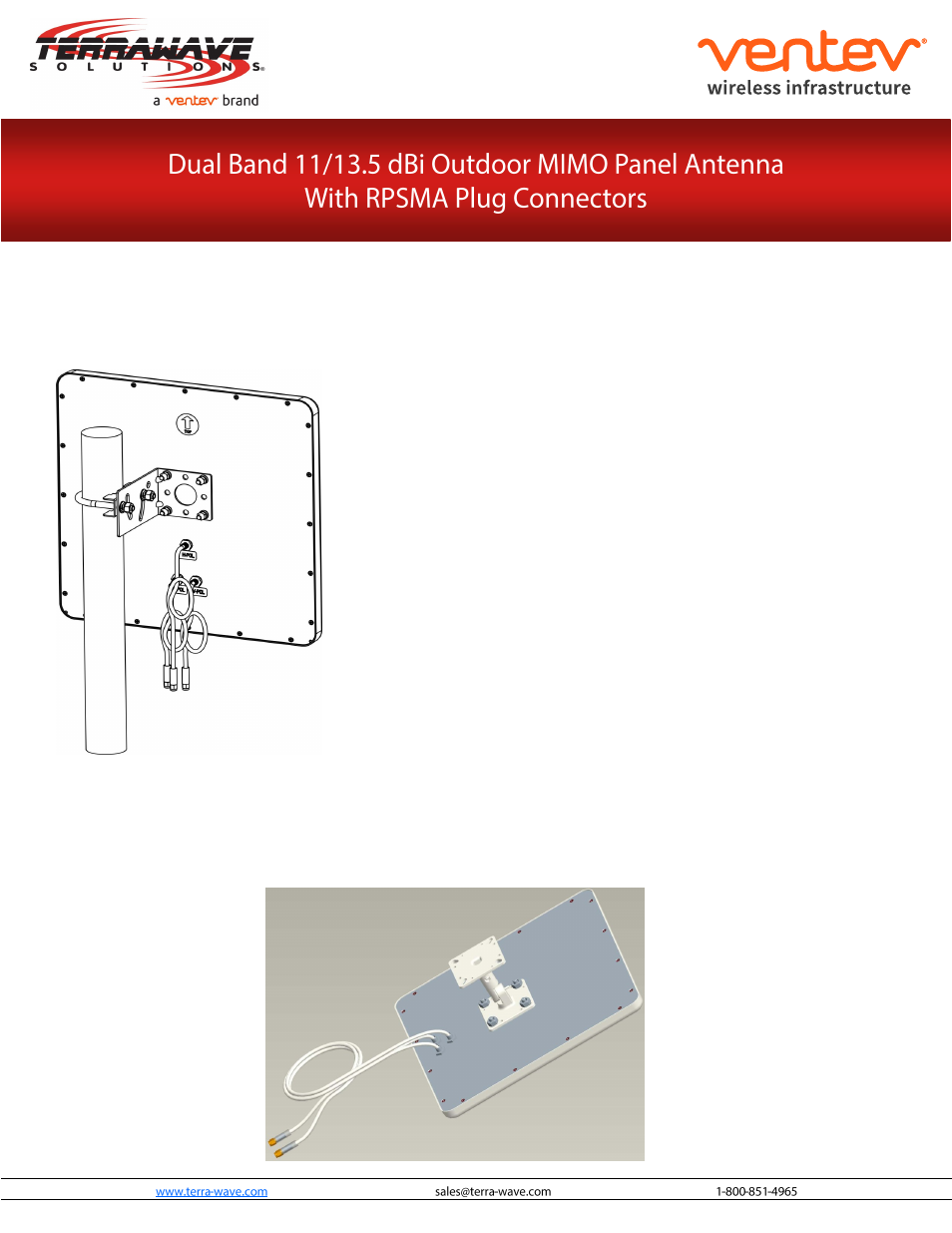

Mounting Bracket Information for M6110135MP1D3620
L-Bracket Installation Instructions:
Universal Articulating Mount:
Mount the antenna to the mast using the supplied U-bolt and hex
nuts.
Adjust the antenna angle until signal reception is optimized.
Tighten all screws and seal the connectors with weatherproof
tape.
Note: Mast mount diameter: ≤2”
