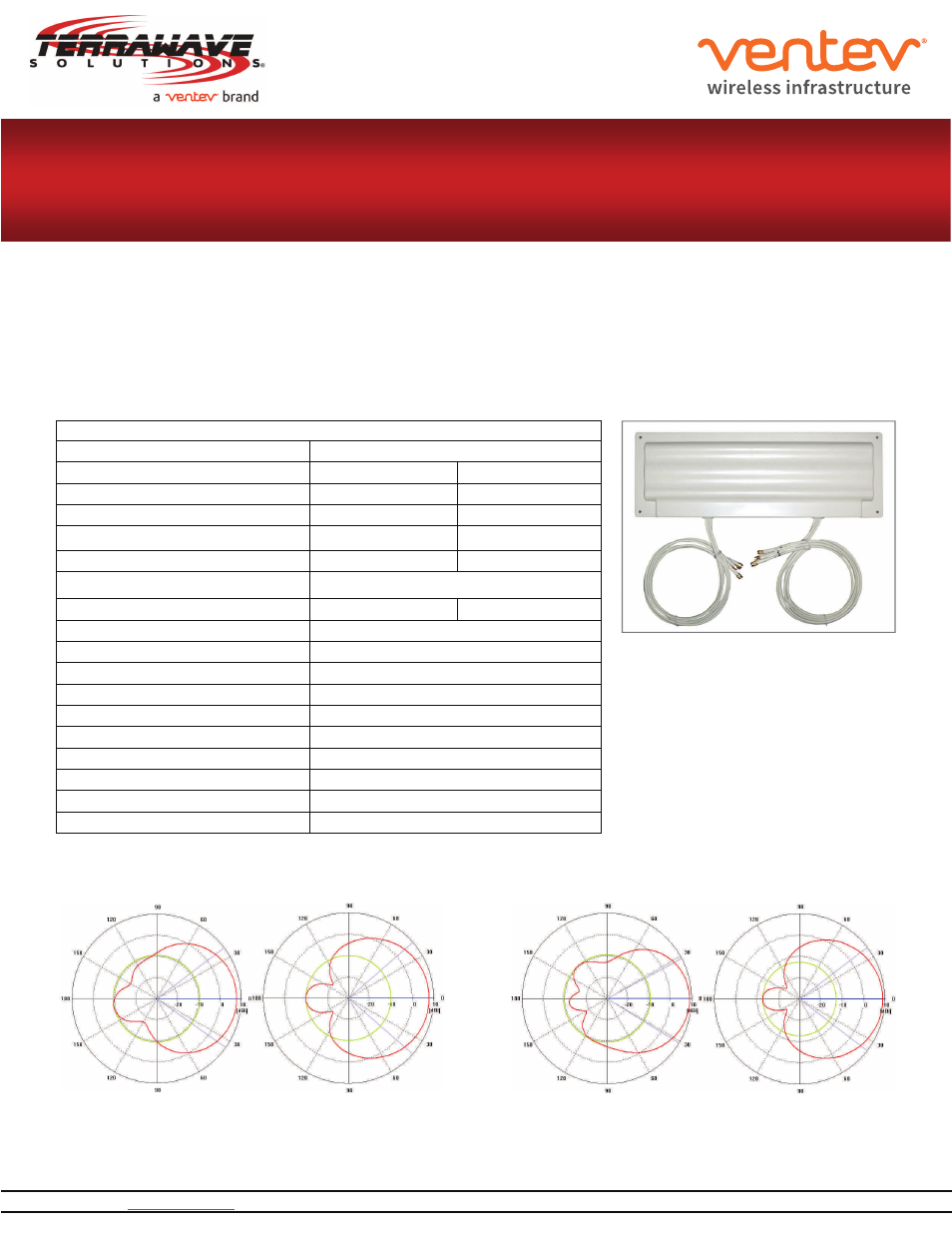

2.4/5 GHz 6/7 dBi Patch Antenna
With N-Male Connectors
TerraWave’s new dual band 2.4/5 GHz multiple-input and multiple-output (MIMO) patch antenna is designed to
operate with many manufacturers’ enterprise-class 802.11n MIMO access points (APs). This antenna features three
integrated 2.4 GHz patch antennas and three integrated 5 GHz patch antennas in one enclosure, making it an ideal
and aesthetically pleasing antenna to support demanding indoor or outdoor applications in next generation IEEE
802.11n wireless communication systems. Includes TerraWave’s Universal Articulating Mount for an easy and
flexible wall/mast mount installation. Every TerraWave antenna is covered by the company’s two-year TerraNet
warranty program.
E-Plane Pattern H-Plane Pattern
2.4 GHz
E-Plane Pattern H-Plane Pattern
5 GHz
Specifications
Model
M6060070MP13620
Frequency Range
2400 ~ 2500 MHz
5100 ~ 5850 MHz
Bandwidth
100 MHz
750 MHz
Gain
6 dBi
7 dBi
Vertical Beamwidth
72°
60°
Horizontal Beamwidth
82°
75°
Front-to-back Ratio
≥ 18 dB
VSWR
≤ 1.5
≤ 2.0
Nominal Impedance
50 Ohms
Polarization
Vertical
Max Power
50 Watts
Connector
N-Male Connectors with 36” Pigtails
Dimensions
17.5” x 6.1” x 1.0”
Weight
1.9 lbs
Operating Temperature Range
-22°F to +158°F
Wind Load
134 mph
Mounting Style
Wall Mount / Mast Mount
Mast Diameter
1.5” - 1.96”
