TerraWave Solutions
®

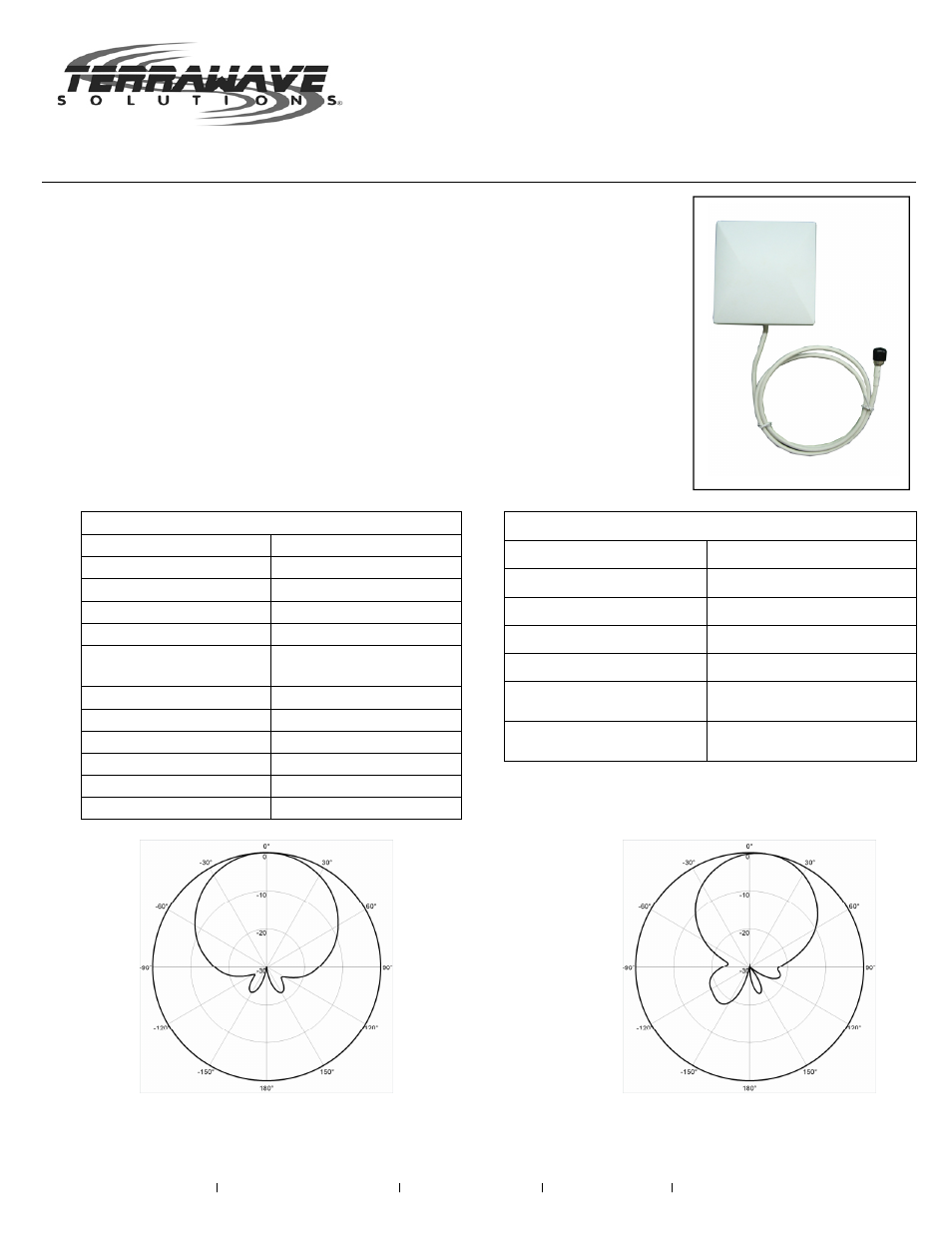

2.4 GHz 8.5 dBi Patch Antenna with RPTNC Plug Connector
TerraWave’s 2.4 GHz 8.5 dBi directional antenna is perfect for indoor and
outdoor wireless applications. This antenna is single linear polarization and can
be mounted in either a vertical or horizontal polarization configuration. It consists
of a low cost, high performance circuit design enclosed in a UV stabilized ABS
plastic radome and is also DC grounded to aid in lightning protection. The
antenna can be mounted to a wall or pole. Includes a 36” integral cable pigtail
with an RPTNC plug connector.
All TerraWave antennas are covered by the Company’s two-year TerraNet
warranty program. For questions and to purchase product, contact a wireless
networking solutions sales engineer at 210-375-8482, 800-851-4965 or
[email protected]. Visit www.terrawave.com for additional information.
Electrical Specifications
Model T24085P13602T
Frequency Range 2.4 - 2.5 GHz
Gain 8.5 dBi
Vertical Beamwidth 60°
Horizontal Beamwidth 60°
Polarization
Single linear, horizontal
or vertical
VSWR ≤ 1.5:1
Front-to-Back Ratio > 20 dB
Cross Polarization > 20 dB
Power Rating 30 Watts
Impedance 50 Ohms
Lightning Protection DC Ground
Mechanical and Environmental Specifications
Dimensions (LxWxD) 4.5" x 4.0” x 0.8”
Weight 0.6 lbs.
Connector Type RPTNC Plug
Pigtail Length 36"
Backplane Aluminum
Radome
White UV stabilized ABS
plastic
Operating Temperature
Range
-40°F to +158°F
Note: An optional non-articulating pole mount kit may be purchased separately. TerraWave Part Number: TW-ART-MOUNTT
www.terrawave.com Email: [email protected] Phone: 210-375-8482 Fax: 210-375-8482 10521 Gulfdale, San Antonio, TX 78216
E-Plane H-Plane
