TerraWave T58170P1000690 User Manual
Page 2
TerraWave Solutions
®
5.7-5.85 GHz 17 dBi 90 Degree V-POL Sector Antenna
Mounting Bracket Information for T58170P1000690

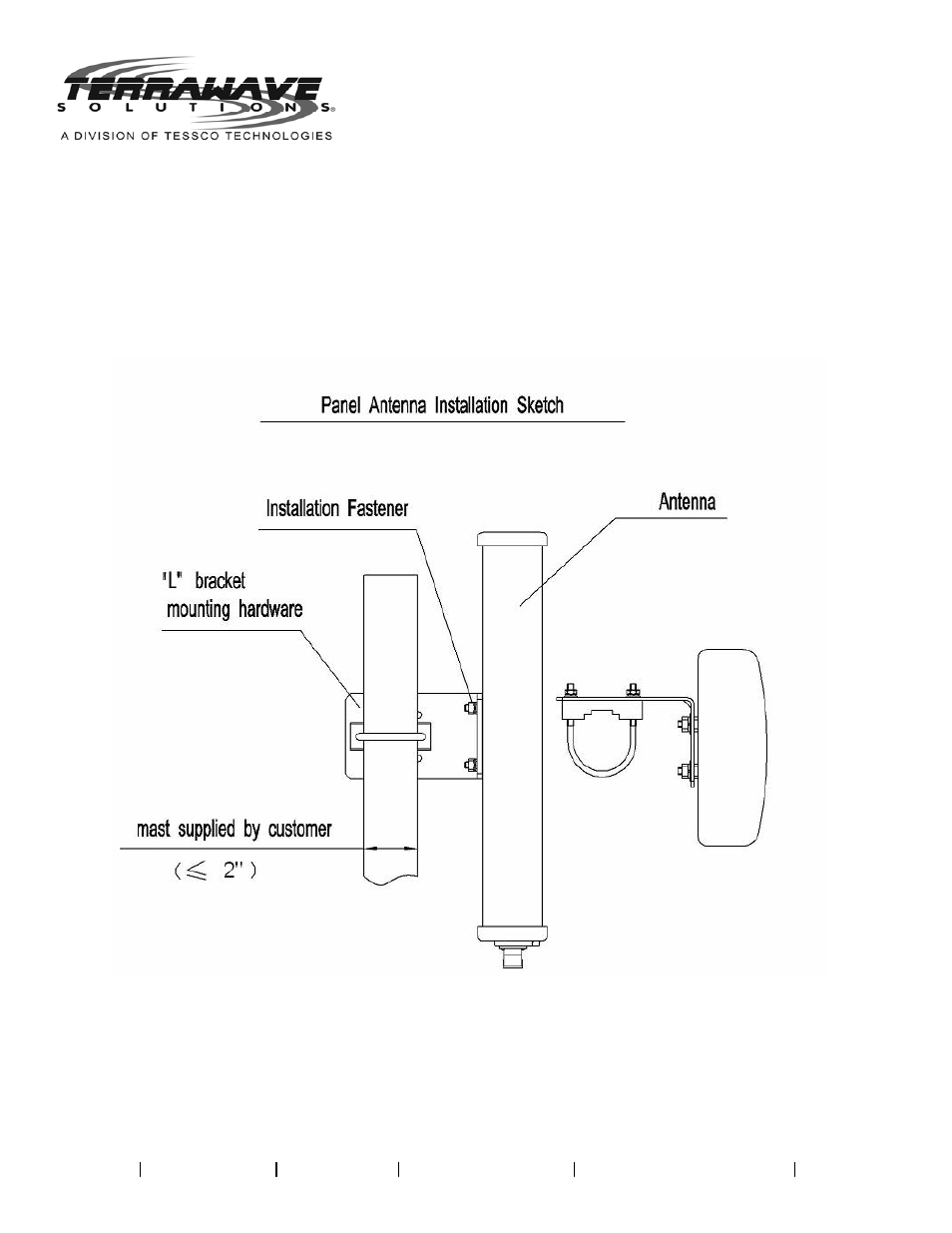

Installation Instructions:
1. Place the L bracket on the back of the panel antenna. Attach the antenna to the mast.
2. Use the client to test and adjust the receive signal strength (RSSI) and adjust the azimuth and
elevation to maximize the RSSI. Tighten each nut and seal the antenna connector.
