TerraWave T58150P10006120 User Manual
Page 2
TerraWave Solutions
®
5.7-5.85 GHz 15 dBi 120 Degree V-POL Sector Antenna
Mounting Bracket Information for T58150P10006120
10521 Gulfdale San Antonio, TX 78216 www.terrawave.com www.tessco.com/go/terrawave Phone: 210-375-8482 or 800-851-4965 Fax: 210-375-8382
Installation Instructions:

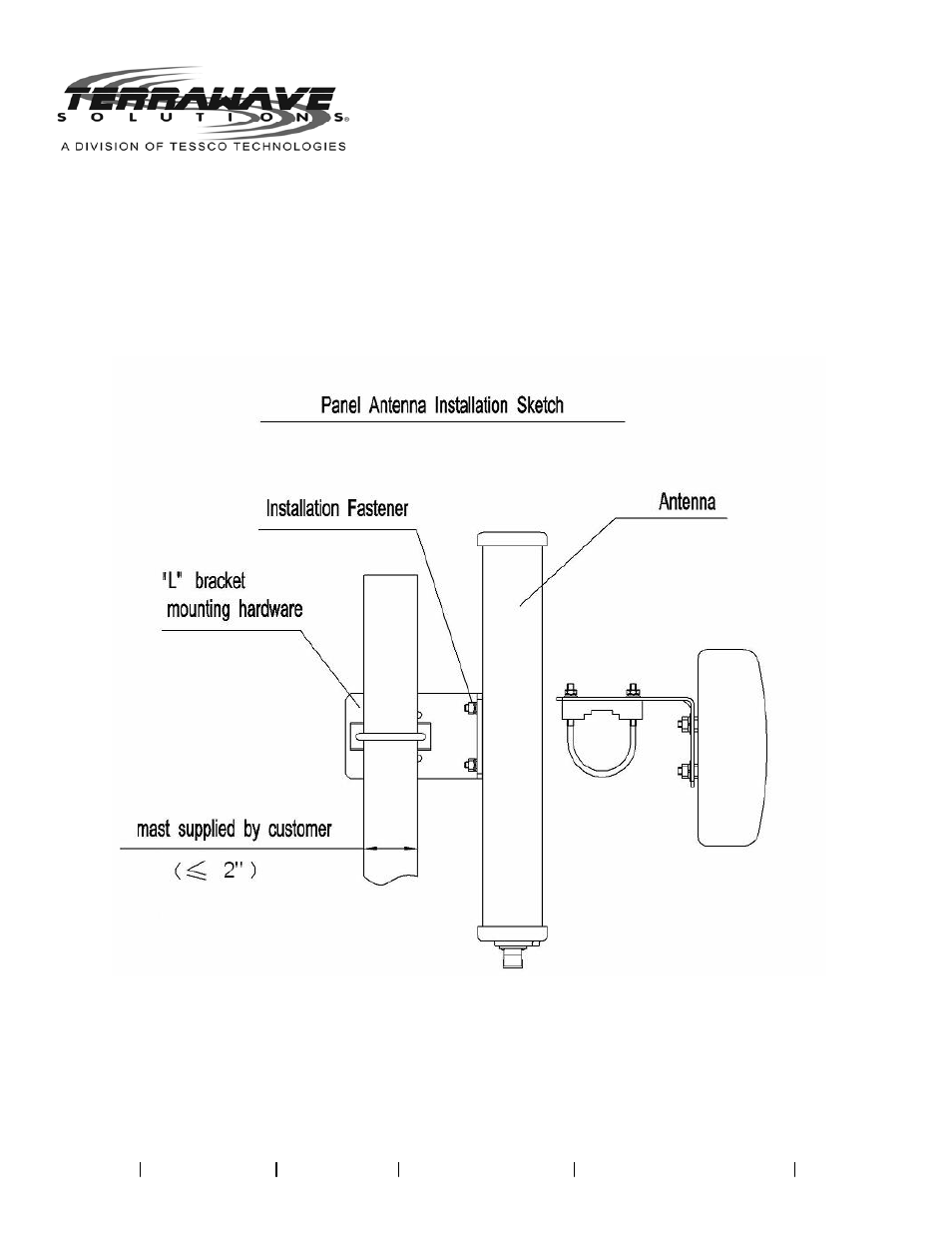

1. Place the L bracket on the back of the panel antenna. Attach the antenna to the mast.
2. Use the client to test and adjust the receive signal strength (RSSI) and adjust the azimuth and
elevation to maximize the RSSI. Tighten each nut and seal the antenna connector.
