TerraWave Solutions® 2.4-2.5 GHz 23.5 dBi Parabolic Grid Antenna with N-Style Jack Connector

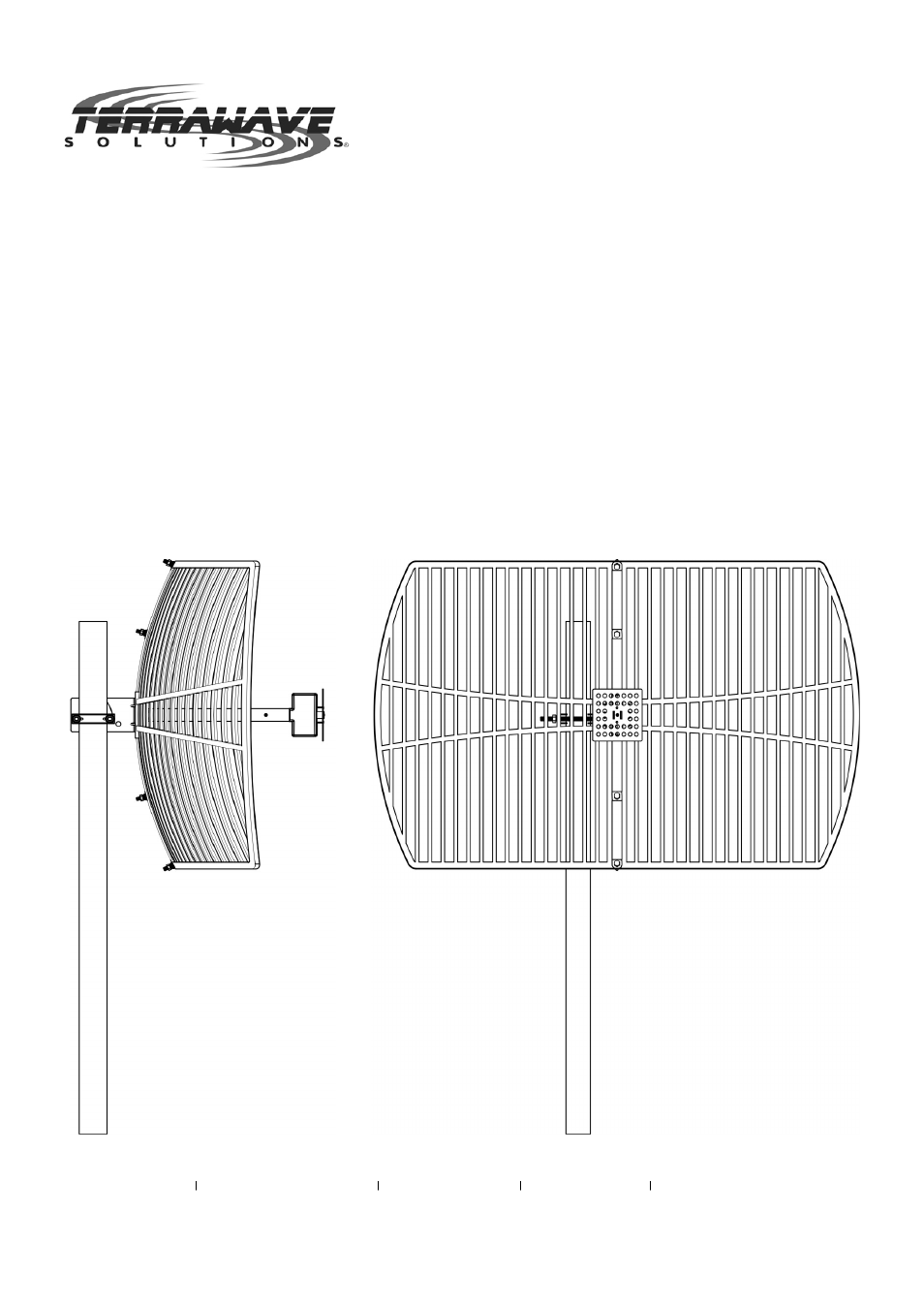

Mounting Bracket Information for T24235G10006T
1. Assemble the two piece grid reflectors with screws and nuts.
*Tip* - Install the screws/nuts at the grid’s end. Do not install the screws/nuts at the
center piece until step 2.
2. Mount the antenna feeder and the “L” bracket to the grid reflector.
*Note* - There is an arrow on a sticker at the feeder’s end.
Make sure the arrow is parallel to the antenna’s grids.
3. Polarization
a. Vertical polarization: The arrow must be pointing vertically to the ground. The antenna’s
grids should be vertical to the ground after installation.
b. Horizontal polarization: The arrow must be pointing parallel to the ground. The antenna’s
grids should be parallel to the ground after installation.
3. Use the “L” bracket to mount the antenna to the mast.
4. Adjust the antenna angle until signal reception is optimized.
5. Fasten all screws and nuts provided in the package.
6. Seal the connector jointing parts with waterproof tape.
