14

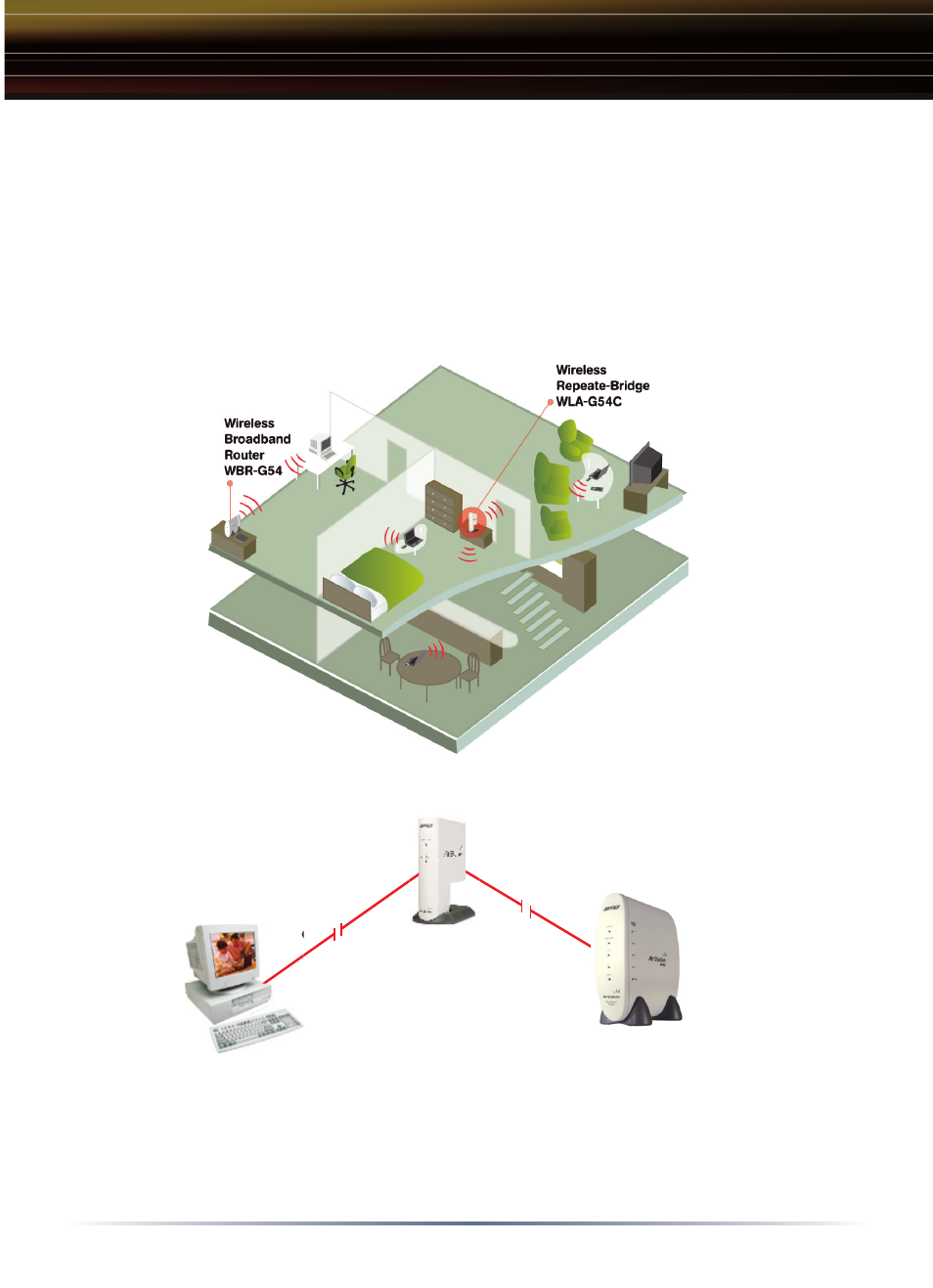

Figure 2: Typical two story residential placement of repeater.
■ NOTE: To achieve maximum overall range, you may place the
repeater outside the radius where the signal begins to drop out.
However, this will impact the overall connection speeds you will achieve.
■ NOTE: Alternatively, to use your repeater to avoid obstructions
between the router and the client computers, position your repeater so
that there is a clear line of sight between the repeater and the router and
a clear line of sight between the repeater and client computers.
Figure 3: Basic placement of repeater with repeater approximately half way
between client machine and the router (65 feet from router to repeater and 65
feet from repeater to computer).
Wireless
Repeater
Bridge
WLA-G54C
Wireless Broadband
Router WBR-G54 Desktop PC
65 FT. MAX
65 FT. MA
X
