Regency Horizon™ HZO42 Gas Fireplace
11
INSTALLATION

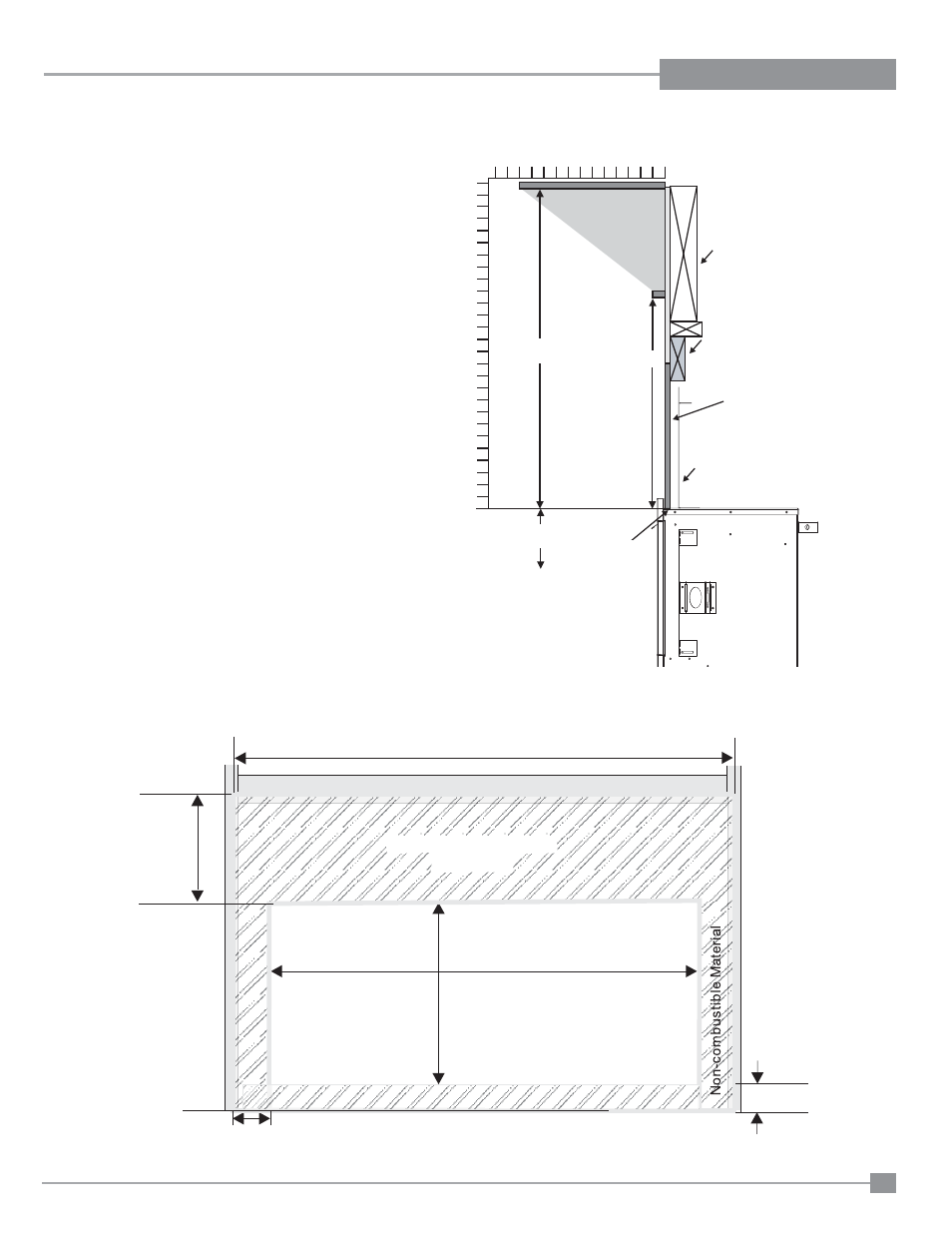

Due to the extreme heat this fi replace emits, the mantel
clearances are critical. Combustible mantel clearances from
top of front facing are shown in the diagram on the right.
Note: Ensure the paint that is used on the mantel and the
facing is "heat resistant" or the paint may discolour.
Combustible Material
2
0
12 6 4 8 10
12" (305mm)
Standoff
Metal Stud
(On Edge)
0
14
Non-combustible
Facing
To Unit
Base
1" (25mm)
26-1/2”
18”
23”
10
20
26
Top of
Fireplace
Opening
11”
MANTEL CLEARANCES
NON-COMBUSTIBLE REQUIREMENTS
2-7/8”
( 3mm)
6-9/16”
(167mm)
10-7/8”
(276mm)
16”
(406mm)
38-1/16” (767mm)
Non-combustible
Material
Non-combustible Material Non-combustible
Material
7
43-11/16” (1110mm)
