Regency U31-3 Gas Fireplace Insert
INSTALLATION

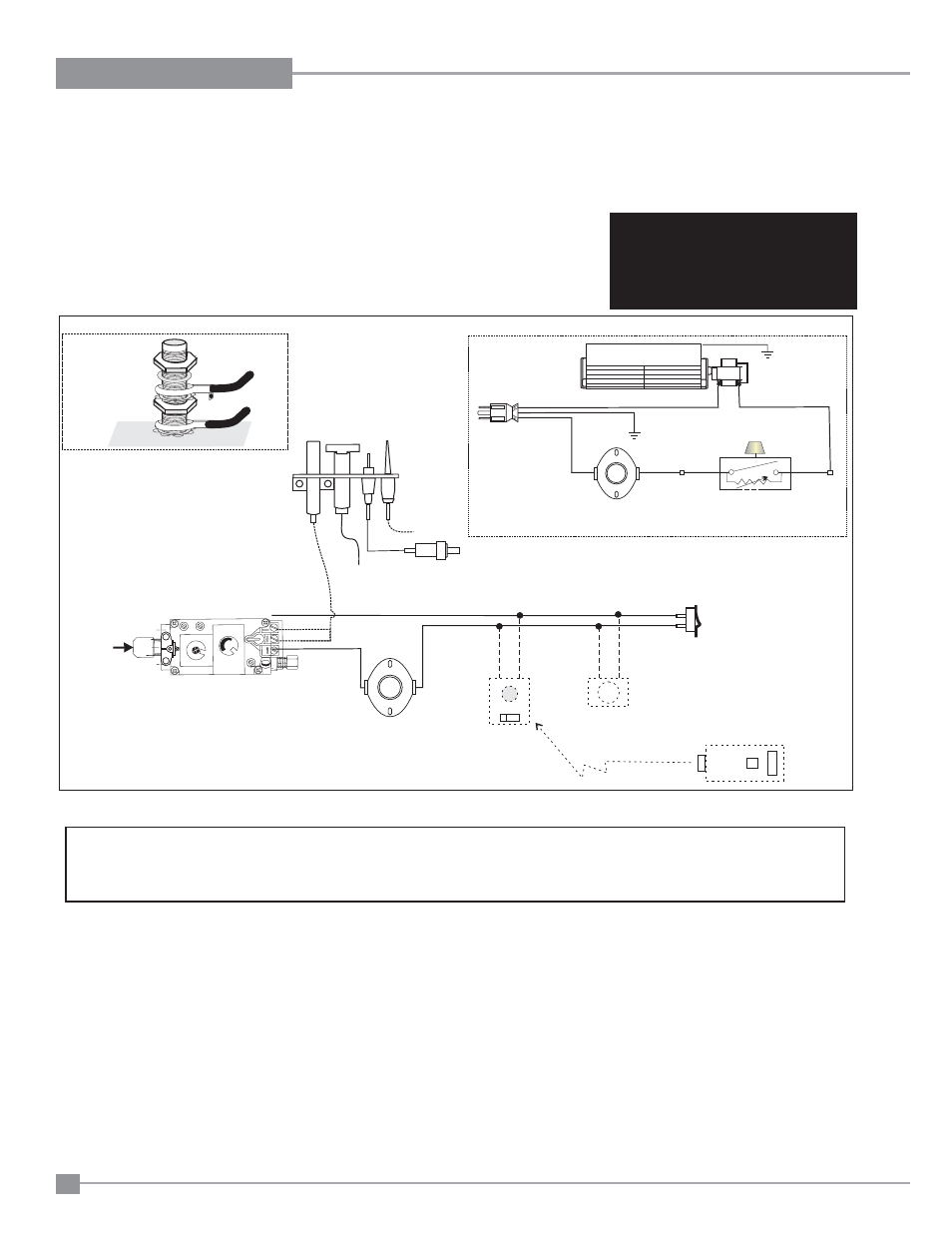

WIRING DIAGRAM
This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/thermostat will
continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation.
CAUTION: Label all wires prior
to disconnection when servic-
ing controls. Wiring errors can
cause improper and dangerous
operation.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should
be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from
this plug.
Caution: Ensure that the wires do
not touch any hot surfaces and are
away from sharp edges.
Burner
ON
OFF
Piezo
Ignitor
To
Pilot
Gas
Remote Transmitter
(Optional)
Thermostat
(Millivolt)
(Optional)
Remote
Receiver
(Optional)
(Millivolt)
ON OFF
Regency
Vent Spill
Switch
(Auto Reset)
Ground
Green
Neutral
Live
Red Black Black
Black
Black
Red
Red
Brown
White
Minimum Convection
Air Temp. Switch
Ground
ON OFF
Rotary Speed
Control
120V AC
Fan
Lockwasher
Ground wire
from power cord
Ground wire
from fan
Star washer
nut
nut
Star washer
Grounding
Lug Detail
H I
LO OF F
ON
P IL O T
"S.I.T" Valve
Gas
In
Pilot
Assembly
Gas Pilot
Thermopile Thermocouple
Electrode
Valve To
