Regency Excalibur EX-U31 Medium Gas Insert - Manual (Page 17)

Regency U31-3 Gas Fireplace Insert
17

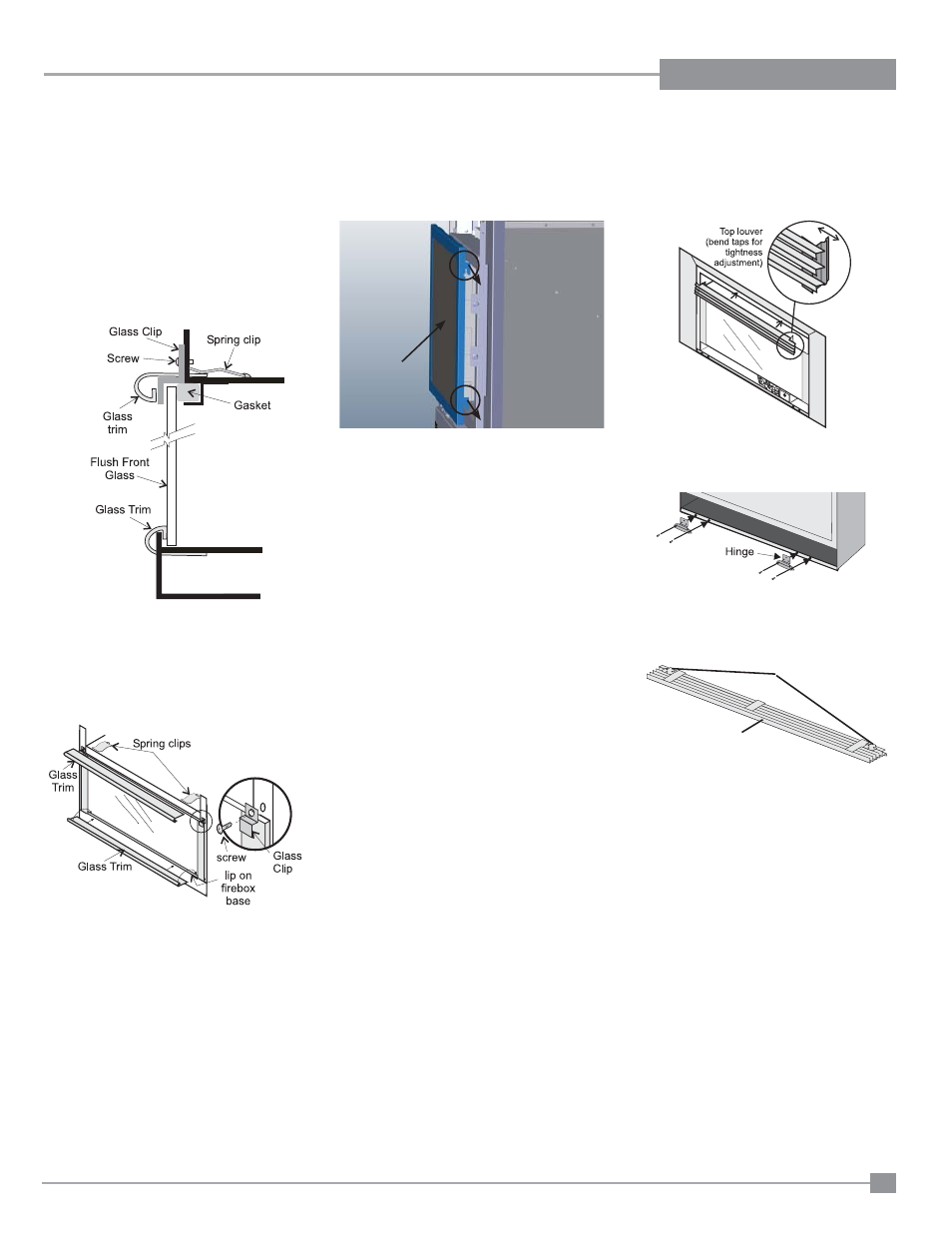

INSTALLATION
FLUSH FRONT
INSTALLATION
1) Install Logs before going on to the next step. See
the Log Installation instruction sheet or page 9.
2) Install the bottom glass trim by hooking the trim
into the lip on the fi rebox base. The trim will not
fi t into place if the glass is installed fi rst.
3) Place the bottom of the fl ush glass behind the
bottom glass trim.
FLUSH LOUVERS
MESH GUARD INSTALL
4) Secure the glass with the two glass clips at the
top corners of the glass. Secure glass clips with
the screws provided. Do not over tighten as this
could break the glass.
5) Slide in the top glass trim under the spring clips.
1) The Top Louver is held in place by friction
fi t, if the Louver needs to be adjusted; bend
the bracket out as shown in the diagram.
Line up hooks on mesh guard with slots on unit.
Slide mesh guard down into slots until securely
in place.
2) Install the Spring Hinges on the left and right
side of the bottom of the Firebox using 2
screws per hinge.
Bottom Louver
Hinge
Location
3) Place the Bottom Louver near the hinge. Flip
hinge over the Bottom Louver and secure
using 3 screws.
Mesh Guard
