14
Regency U31-3 Gas Fireplace Insert
INSTALLATION

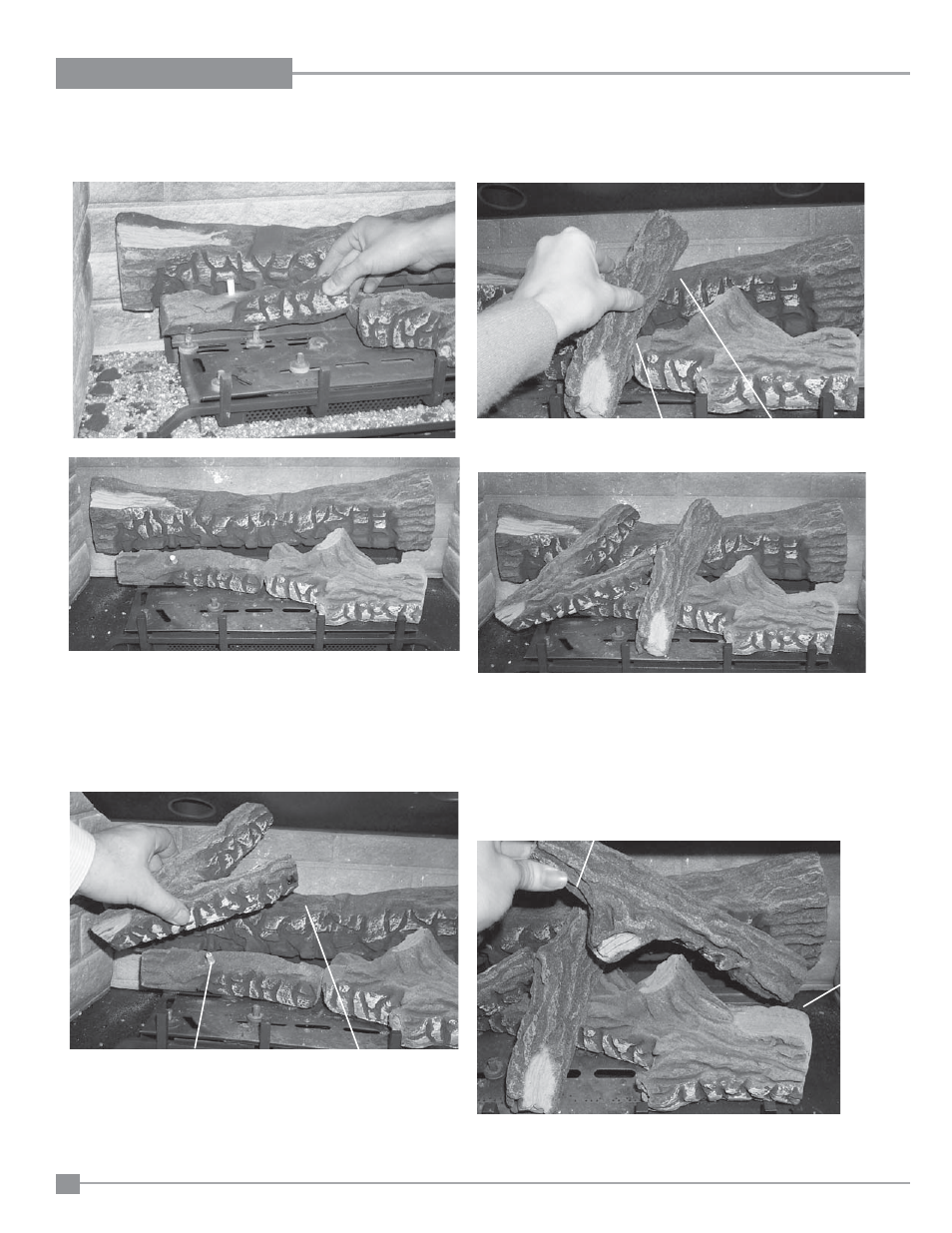

Logs D)02-46 and E)02-47 in position.
6) Place the Left Top Log D)02-46 on the pin on Log
C)02-56 and on top of the cutout on Log A)02-43.
7) Place the notch in Center Log E)02-47 over Log B)02-
45 and across the cutout on Log A)02-43.
Cutout Pin
Cutout Notch
8) Position notch in Front Right Log F)02-48 on Log
E)02-47 and push the bottom right edge against the
bracket on the burner tray and the front edge of the
rear burner.
Notch
Bracket
D)02-46
E)02-47
F)02-48
C)02-56
A)02-43
B)02-45
A)02-43
B)02-45
E)02-47
Logs A)02-43, C)02-56, and B)02-45 in position
C)02-56
5) Place the Middle Left Log C)02-56 on the two pins as
shown.
