Summit DW18 Installation Manual User Manual
Page 20

17
USA
A
x4
v
Ø
1/8
"
(3,5mm)
B

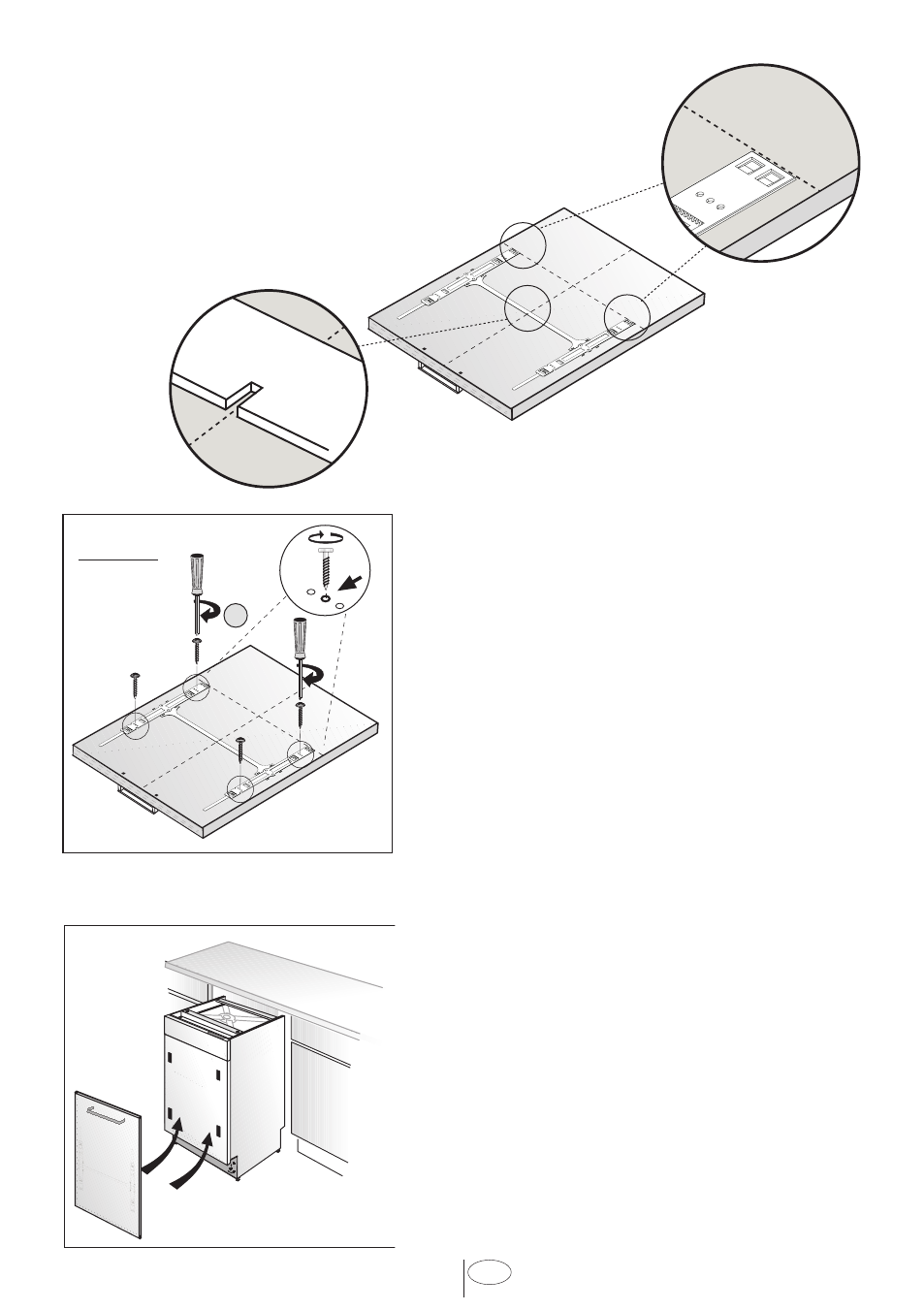

5. Attach the two mounting brackets to the wooden door
with 4 screws (Ø 1/8” x 5/8” (Ø 3.5mm x 14mm) (Figure
A
).
6. Mount the wooden door onto the dishwasher with
the plastic mounting brackets which you have attached
(Figure
B
).
D
D
4. Place the plastic mounting brackets over the marked
holes and the side tabs must be flush with the edge of
the wooden door (Figure
D
).
