7.5 INSTALLING THE OUTER DOOR
(DWS 54100 FBI)

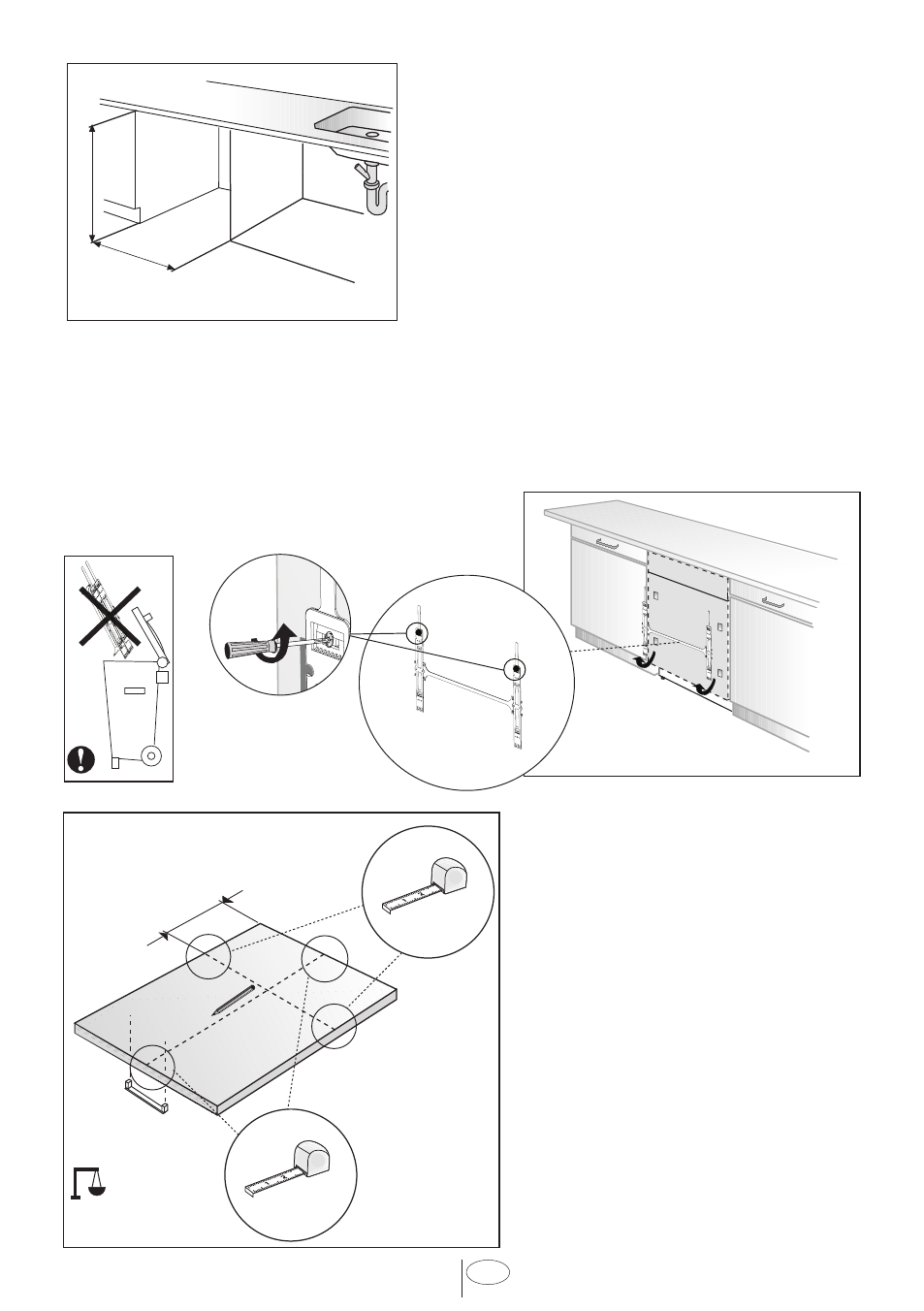

Measure the height and width of the enclosure (Figure A )
and the toe kick. Determine how big the wooden door can
be. For example if the height is 337/8” (860mm) and if the
toe kick is 315/16” (100mm) the door can not be taller than
2915/16” (760mm).
1. Prepare the wooden door with the mounting brackets.
Height
: Height of the wooden door 28” (711mm)
Width : 17 ½” to 17 ¾” (442 mm - 448 mm)
Thickness : ¾ “ (19mm)
3. Mark the wooden door as shown in the
drawing (Figure
C ).
B
2. To take the plastic bracket out, remove the
screws on it. Screws will be used in 5th step
again. (Figure
B ).
