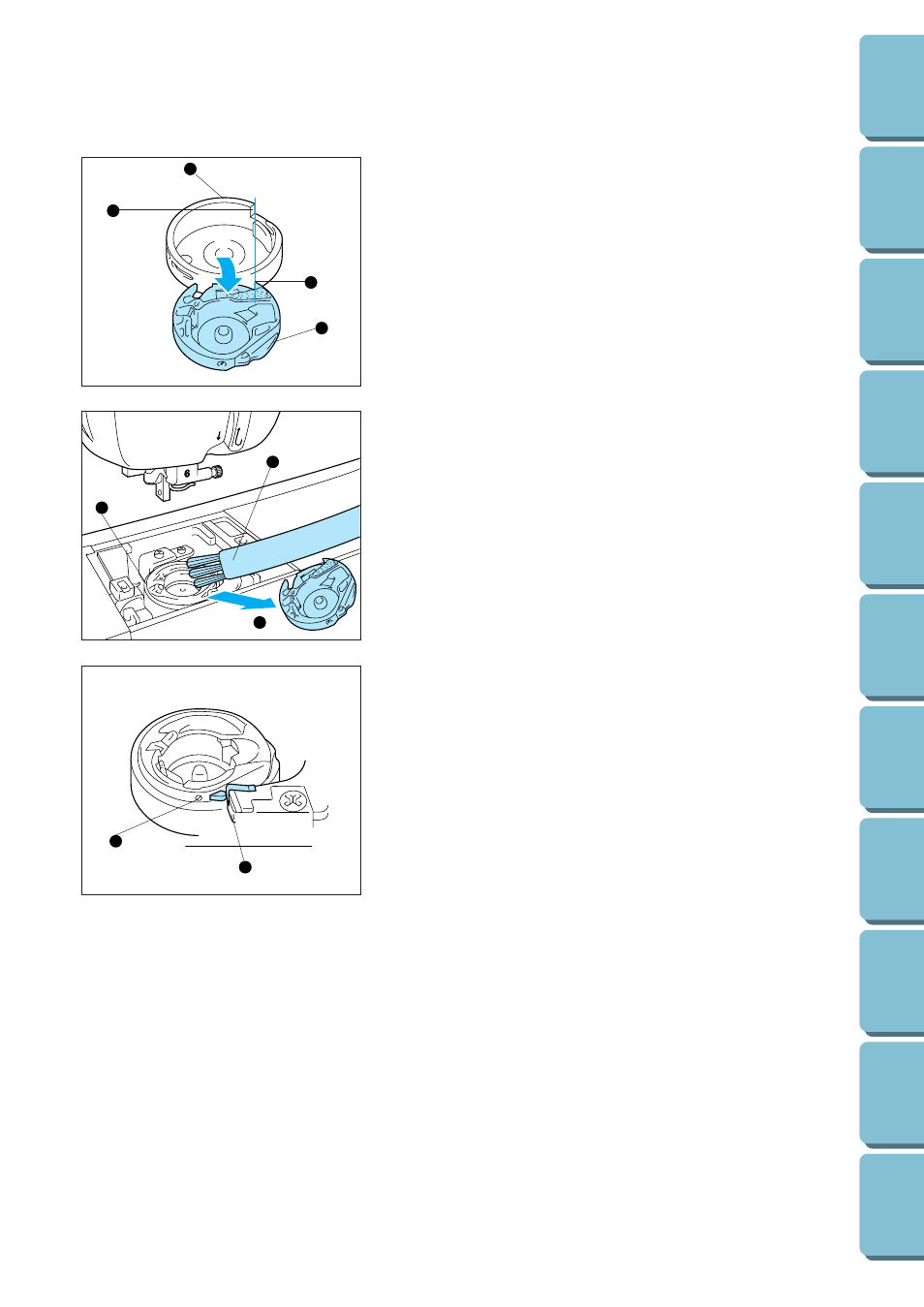

3. Turn the hand wheel towards you. Line up the shelf of race
with the notch of shuttle and remove race.
1 Shuttle
2 Notch of shuttle
3 Race
4 Shelf of race
4. Remove accumulated lint and thread from the inner shuttle
and race with a brush or a vacuum cleaner.
1 Race
2 Shuttle
3 Cleaning brush
5. Remove the race and check that the notch of the shuttle is
lined up in its original position by lining up the shuttle projec-
tion with the spring and insert the race.
1 Projection
2 Spring
6. Close needle plate and screw it shut.
1
2
1
2
3
1
2
3
4
