SAT4D User’s Manual

1 C

ZONES

2 C

3 C

4 C

~ ~

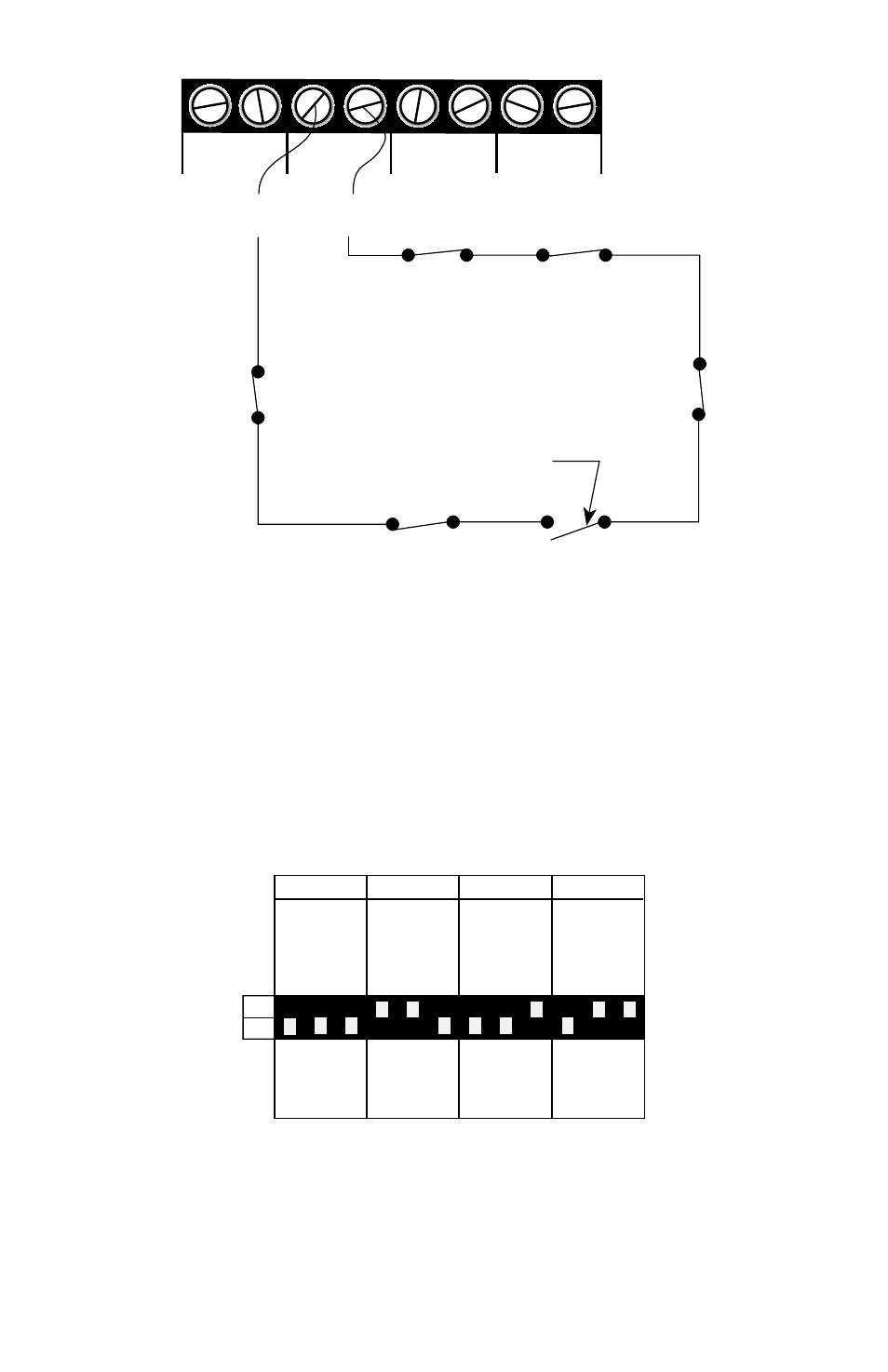

Multiple normally-closed

sensors wired in series

(example using Input 2)

Alert condition

occurs when a

switch is opened

Multiple Normally Closed Sensors

CONFIGURING THE INpUT NORMALITY
Each Zone Input must be configured as either Normally Open or

Normally Closed. The default setting is Normally Open. There

is a DIP switch for each zone input to select the proper normal-

ity. When the switch is in the OFF position the zone is configured

as Normally open, when in the ON position it is configured as

Normally Closed. Be sure to set each switch to the proper position.

Chan 1 Chan 2 Chan 3 Chan 4

NO/NC 1A 1B

NO/NC 2A 2B

NO/NC 3A 3B

NO/NC 4A 4B

ON
OFF

Zone 1
N.O.
3 Sec

Zone 2
N.C.
5 Min

Zone 3
N.O.
1 Min

Zone 4
N.O.
10 Min

Sample DIP Switch Settings
