13
Chapter 2: installation
ChapTer 2: insTallaTion

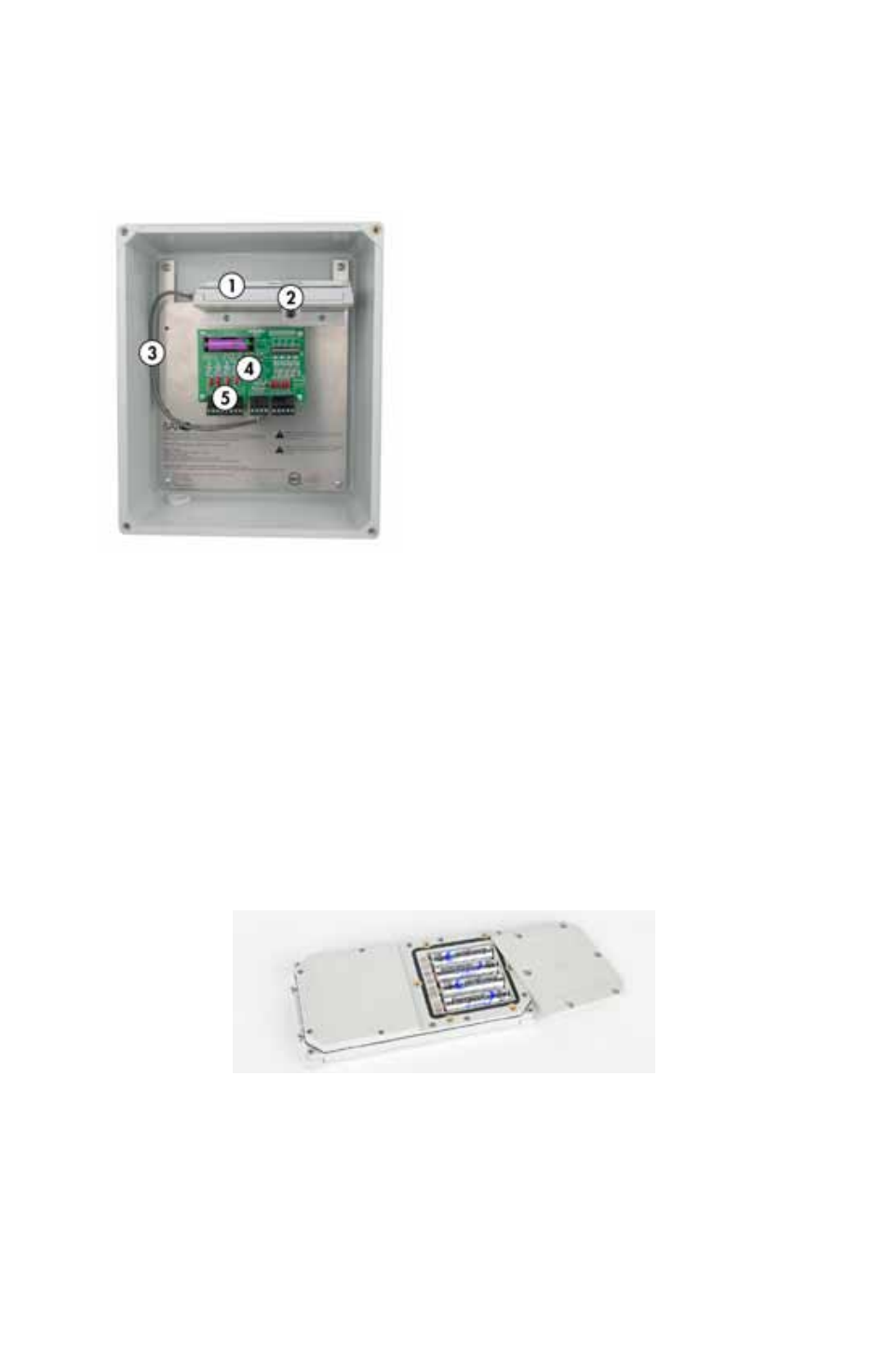

The SAT4D consists of an Input board and Satellite transmitter
mounted in a NEMA 4X enclosure. (See Figure below):
1) Satellite transmitter
2) Transmitter mounting bracket
3) Communication cable
4) Input board
5) Input wiring terminals
BATTERY INSTALLATION
The SAT4D includes (4) AA 1.5V Lithium batteries which must
be installed into the Satellite Transmitter. Loosen the thumb screw
and lift the bracket holding the transmitter in place. Slide out the
transmitter. Disconnect the communication cable from the end of
the Transmitter. Remove the battery compartment lid by loosen-
ing the (8) large flat-head screws. Install the four 1.5V AA Lithium
batteries and reattach the lid. Connect the communication cable
by lining up the arrows and secure the transmitter in the enclosure
with bracket and thumb screw..
ENCLOSURE MOUNTING
The SAT4D enclosure must be mounted so that it has a clear,
unobstructed view of the sky. DO NOT mount the enclosure on its
side, against the side of a building, or under a tree. These will all
interfere with the unit’s ability to communicate with the satellite.
The device must be mounted in an open area with a clear view of
