SDC UR-1 - Manual (Page 5)

EMERGENCY
RELEASE
PUSH
TO UNLOCK DOOR
WHT
YEL
ORG
CB402B
RED
RED
LAMP
Switch No:
ON off Position
SW1 SW2
off
SW3
off
SW4
C NO C NO - NO C NC - NO C NC
- +
TRIG A TRIG B RELAY A RELAY B
PWR
Communicating Bath
w
D
A
w
D
B
Fail Safe
Electrified Lock
Fail Safe
Electrified Lock
+
-
+
-
DPS *
DPS
REX
REX
DPS switches should
be in the Open state
with the doors Closed
*
EMERGENCY
RELEASE
PUSH
TO UNLOCK DOOR
WHT
YEL
ORG
CB402B
RED
RED
LAMP
BATHROOM LOCK
BOTH DOORS MUST BE
CLOSED TO LOCK
PUSH TO LOCK
LIGHT ON DOOR LOCKED
WHT
YEL
ORG
CB402A
RED
RED
LAMP

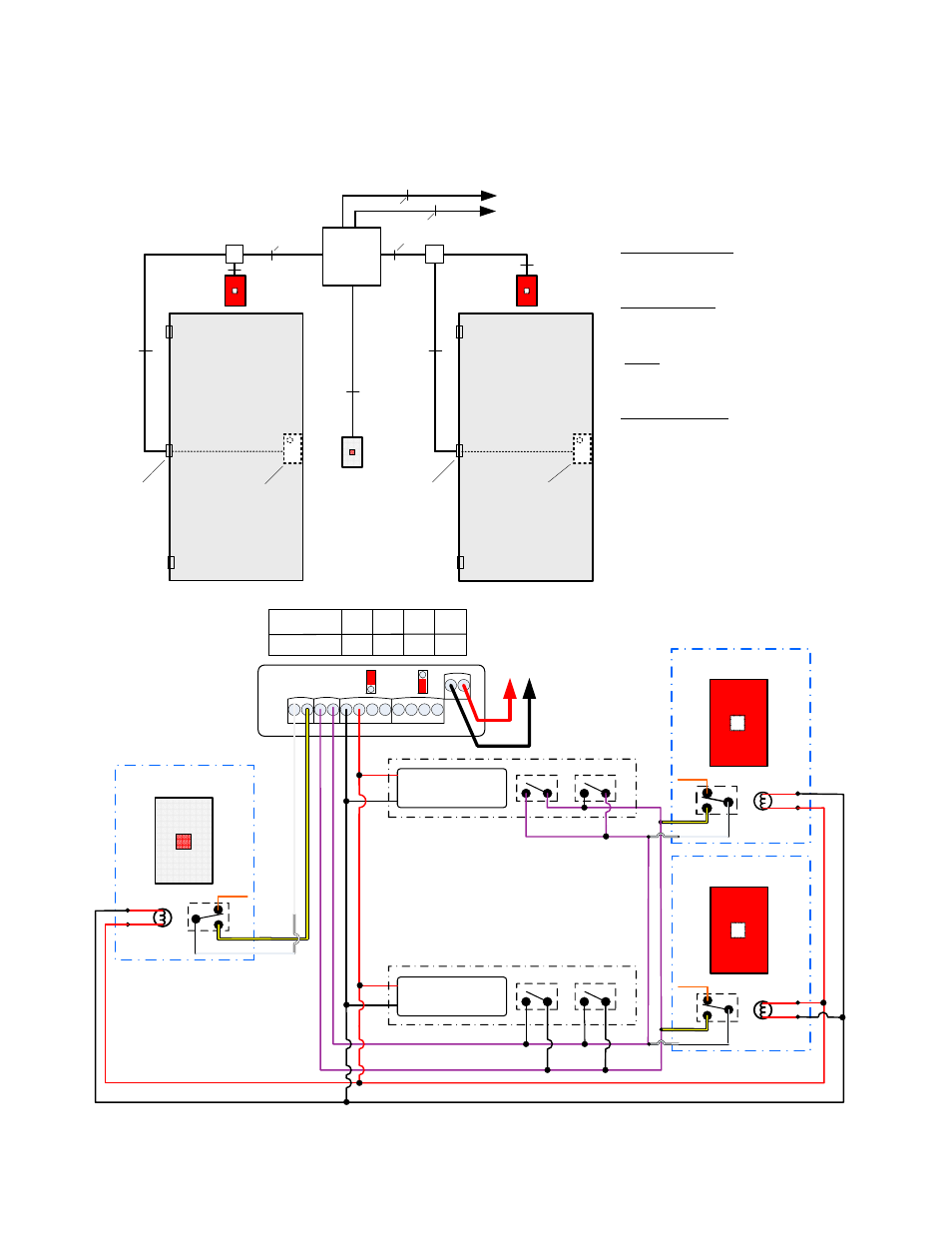

Using Fail Safe Electrified Locksets
Door 1
Door 2
Push to lock
Both Doors
(Inside)
1
2
TO N/C FIRE ALARM INTERFACE
2 COND
4 COND
6 COND
PTH-10
POWER
TRANSFER
HINGE
6 COND
PTH-10
POWER
TRANSFER
HINGE
ELECTRIFIED
MORTISE LOCK
x REX x DPS
CB402B
PUSH
BUTTON
CB402B
PUSH
BUTTON
CB402A
PUSH
BUTTON
(INSIDE)
4 COND
10 COND
10 COND
4 COND
DOOR
1
DOOR
2
TO 115 VAC PRIMARY VOLTAGE
3 COND
ELECTRIFIED
MORTISE LOCK
x REX x DPS
To
12vdc or 24vdc
Power Supply
+ -
Method of Operation
Both doors shall be normally unlocked.
System Activation:
Both doors must be closed to lock. Pressing
the CB402A Push Button will lock all the doors.
Egress: When the doors are locked, turning
either door’s inside lever activates the lock’s
REX switch and unlocks both doors.
Emergency Release:
When the doors are locked, activating either
CB402B Emergency Push Buttons will unlock
both the doors.
When used with an SDC 631RF power supply,
Both doors will unlock automatically via signal
from the fire panel.
Set to ”LR Mode”
631RF
x
UR1
Power
Supply
P:\INSTALLATION INST\POWER SUPPLY\INST-UR-1.vsd Rev H 04-14 Page 5
